Cisco IR829GW-LTE-LA-ZK9 | IR829 Industrial Router, 4G LTE, Dual-SIM, Wi-Fi, Non-PoE
SKU:IR829GW-LTE-LA-ZK9
Stock Status: Enquire
Need a quote or bulk pricing? Answered within 20 minutes, Sydney business hours.
Description
Description

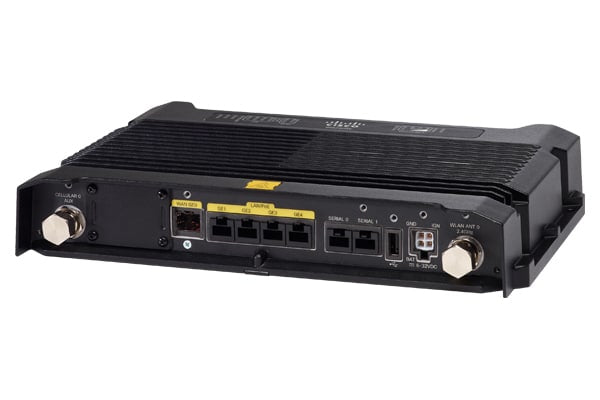

The Cisco IR829 is a ruggedised industrial integrated services router with an embedded multimode 4G LTE modem, dual SIM sockets and dual-band 802.11n Wi-Fi. It suits transportation and vehicle networking, roadside and intelligent transport systems, utilities, oil and gas, and remote or harsh-environment sites that need cellular WAN backup, Wi-Fi access and edge application hosting.
This non-PoE variant uses the LATAM/APAC LTE band set and ETSI Wi-Fi (Z domain, covering Australia, New Zealand and Brazil). The single LTE modem is Category 4, with peak rates of 150 Mbps down and 50 Mbps up, and the SIM sockets run in active/backup mode. It provides four 10/100/1000 Gigabit Ethernet LAN ports, an SFP WAN port for copper or fibre at 100 Mbps or 1 Gbps, one RS-232 DTE and one RS-232/RS-485 DCE serial port, and 2 GB DRAM with 8 GB eMMC flash. It runs from a 9 to 32 VDC input and is rated IP40 with an operating range of -40 to 60 C in a sealed cabinet.
It works with the optional IR800-IL-POE PoE module, IR829-DINRAIL DIN rail kit, IR829-PWR125W-AC adapter and Cisco industrial antennas such as ANT-5-4G2WL2G1-O and ANT-3-4G2G1-O. Cisco IOS Universal licences (IP Base, Data, Security and No Payload Encryption) are included by default.
Enquire with XS Network Tech for new or used pricing and availability.
Features
Features
- Ruggedised design for harsh environments with a wide operating temperature range
- Cisco IOx for hosting applications at the network edge
- Enterprise-class services including QoS, DMVPN, FlexVPN and multi-VRF
- Embedded multimode 4G LTE with Auto-SIM, SMS and automatic failover between primary and backup links
- Dual SIM sockets for cellular multihoming and reliability
- Dual-band 802.11n Wi-Fi with autonomous and unified modes
- Integrated GPS for geo-fencing and asset tracking
- Mobile IP support for roaming across wireless networks
Warranty
Warranty
All products sold by XS Network Tech include a 12-month warranty on both new and used items. Our in-house technical team thoroughly tests used hardware prior to sale to ensure enterprise-grade reliability.
All technical data should be verified on the manufacturer data sheets.
View full details
What is the difference between add to cart and request a quote?
Add to Cart lets you purchase in-stock products immediately at listed pricing.
Request a Quote is for customised pricing, volume-based deals, or orders that need a tailored response.
specs-tabs
Collapsible content
Technical Specifications
FAQs
Technical Specifications
- Cellular modem: single embedded multimode 4G LTE, Category 4
- LTE peak rates: 150 Mbps downlink, 50 Mbps uplink
- SIM support: dual SIM sockets, active/backup mode
- LTE bands: FDD 1, 3, 5, 7, 8, 18, 19, 21, 28; TDD 38, 39, 40, 41
- Fallback: UMTS/HSPA+ and TD-SCDMA
- Wi-Fi: dual 802.11n radios, 2.4 GHz and 5 GHz, 2x2 MIMO, up to 300 Mbps per radio
- LAN ports: 4 x 10/100/1000 Gigabit Ethernet
- WAN: wireless WAN and 1 x SFP (100 Mbps or 1 Gbps, copper or fibre)
- Serial ports: 1 x RS-232 (DTE), 1 x RS-232/RS-485 (DCE)
- Console: mini type-B
- Memory: 2 GB DRAM
- Flash: 8 GB eMMC (4 GB usable)
- GPS: standalone, SMA antenna connector
- VPN: 20 IPsec tunnels, hardware-accelerated AES
- Switching: 16 802.1Q VLANs
- Power input: 9 to 32 VDC
- Maximum power consumption: 40 W without PoE
- Operating temperature: -40 to 60 C in sealed NEMA cabinet
- Ingress protection: IP40
- Dimensions (H x W x D): 43.9 x 279 x 196 mm
- Weight: 2 kg
- Mounting: panel or door mount, optional DIN rail kit
- Standards: EN61131-2, EN50155, SAE J1455, MIL-STD-810G
FAQs
Q: Does this router include PoE?
A: No. This is the non-PoE model. PoE of 30 W shared across the four LAN ports requires the optional IR800-IL-POE module.
Q: Which licences are included?
A: The Cisco IOS Universal feature set ships with IP Base, Data, Security and No Payload Encryption licences included by default. Modem image switching firmware options are ordered separately.
Q: What power supply does it need?
A: It runs from a 9 to 32 VDC input, nominally 12 or 24 V, with a maximum current of 7.8 A. The optional IR829-PWR125W-AC adapter is available for AC to DC lab use.
Q: What does the ZK9 regional variant cover?
A: The ZK9 suffix covers Australia, New Zealand and Brazil. This SKU combines LATAM/APAC LTE bands with ETSI Wi-Fi settings.
Q: What optional accessories work with it?
A: Compatible options include the IR800-IL-POE PoE module, IR829-DINRAIL DIN rail kit, IR829-PWR125W-AC adapter, a Cisco LoRaWAN interface module and Cisco industrial antennas such as ANT-5-4G2WL2G1-O and ANT-4G-OMNI-OUT-N.
