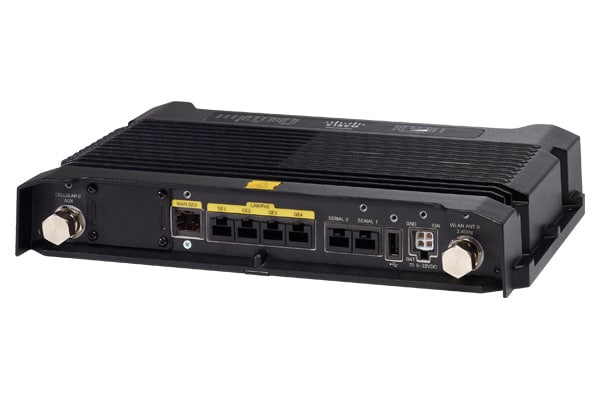

Cisco IR829GW-LTE-GA-ZK9 | IR829 Industrial Router, LTE Cat 3, Dual 802.11n, AU/NZ
SKU:IR829GW-LTE-GA-ZK9
Stock Status: Enquire
Need a quote or bulk pricing? Answered within 20 minutes, Sydney business hours.
Description
Description
The Cisco IR829GW-LTE-GA-ZK9 is a ruggedised industrial integrated services router from the IR829 range, built for vehicles, mass transit, utility gateways and remote IoT sites where a standard branch router would not survive. It combines a single multimode 4G LTE Category 3 modem with dual-radio 802.11n Wi-Fi, and the -Z regulatory domain covers Australia, New Zealand and Brazil.
The cellular modem supports LTE bands 1, 3, 7, 8 and 20 with HSPA+ and DC-HSPA+ fallback, delivering up to 42.2 Mbps downlink on HSPA+. Wi-Fi is provided by two 2x2 MIMO radios, one on 2.4 GHz and one on 5 GHz, each up to 300 Mbps. Wired connectivity includes four 10/100/1000 Gigabit Ethernet LAN ports with optional 30 W PoE/PoE+ shared across the ports, one SFP WAN port at 100 Mbps or 1 Gbps, plus one RS-232 (DTE) and one RS-232/RS-485 (DCE) serial interface. The unit has 2 GB DRAM and 8 GB eMMC flash, accepts a 9-32 VDC input and operates from -40 to 60 C in a sealed NEMA cabinet, rising to 75 C with forced air.
It runs the Universal Cisco IOS feature set (release 15.6(3)M2 or later) and can host applications at the edge using Cisco IOx. The expansion slot supports the Cisco Interface Module for LoRaWAN, and the WAN port takes SFP modules for copper or fibre.
Enquire with XS Network Tech for new or used pricing and availability.
Features
Features
- Ruggedised compact design for mobile and hostile environments such as fleets, transit and remote asset monitoring
- Cisco IOx application hosting for edge compute
- Serial raw socket transport and SCADA gateway functions, including DNP3 serial to DNP3/IP and IEC 60870 T101 to T104 translation
- Integrated stateful and application inspection firewall with enterprise-grade IOS security
- Mobile IP roaming across multiple wireless networks
- Optional GPS via SMA connector for geo-fencing and asset tracking
- Expansion module slot supporting the Cisco Interface Module for LoRaWAN
- Managed with Cisco IoT Field Network Director or the Cisco IOS CLI
Warranty
Warranty
All products sold by XS Network Tech include a 12-month warranty on both new and used items. Our in-house technical team thoroughly tests used hardware prior to sale to ensure enterprise-grade reliability.
All technical data should be verified on the manufacturer data sheets.
View full details
What is the difference between add to cart and request a quote?
Add to Cart lets you purchase in-stock products immediately at listed pricing.
Request a Quote is for customised pricing, volume-based deals, or orders that need a tailored response.
specs-tabs
Collapsible content
Technical Specifications
FAQs
Technical Specifications
- Cellular: single 4G LTE Cat 3 modem with HSPA+/DC-HSPA+ fallback
- LTE bands: 1 (2100 MHz), 3 (1800 MHz), 7 (2600 MHz), 8 (900 MHz), 20 (800 MHz)
- HSPA+ speed: downlink up to 42.2 Mbps, uplink up to 5.76 Mbps
- Wi-Fi: dual 802.11n a/g/n radios, 2.4 GHz and 5 GHz, 2x2 MIMO, up to 300 Mbps per radio
- Regulatory domain: -Z (Brazil, Australia, New Zealand)
- LAN: 4 x 10/100/1000 Gigabit Ethernet with IEEE 802.1Q VLANs
- PoE: optional 30 W PoE/PoE+ shared across the four LAN ports
- WAN: 1 x SFP port, copper or fibre, 100 Mbps / 1000 Mbps
- Serial: 1 x RS-232 (DTE) and 1 x RS-232/RS-485 (DCE)
- Console: Mini type-B
- Memory: 2 GB DRAM
- Flash: 8 GB eMMC (4 GB usable)
- Power input: 9-32 VDC, nominal 12 V / 24 V, maximum 7.8 A
- Power consumption: up to 40 W without PoE, 70 W with PoE
- Operating temperature: -40 to 60 C sealed NEMA cabinet, up to 75 C with forced air
- IP rating: IP40
- Dimensions (H x W x D): 43.9 x 279 x 196 mm
- Weight: 2 kg
- Mounting: panel or door mount
- Software: Universal Cisco IOS, release 15.6(3)M2 or later
- Standards: EN61131-2, EN50155, SAEJ1455, MIL-STD-810G
FAQs
Q: Does this router need a separate software licence to run?
A: It runs the Universal Cisco IOS feature set, release 15.6(3)M2 or later, and no separate subscription is listed for basic operation. Optional management software such as IoT Field Network Director is licensed separately.
Q: How is the IR829GW-LTE-GA-ZK9 powered?
A: It takes a 9-32 VDC input (nominal 12 V or 24 V, up to 7.8 A) and draws up to 40 W without PoE or 70 W with PoE. The optional PoE/PoE+ module provides 30 W shared across the four Gigabit LAN ports.
Q: What can I fit to the WAN port and expansion slot?
A: The SFP WAN port accepts copper or fibre SFP modules at 100 Mbps or 1 Gbps. The expansion slot supports the Cisco Interface Module for LoRaWAN (LPWA).
Q: How does this SKU differ from other IR829 variants?
A: This SKU has a single LTE Cat 3 modem with global GA bands and dual 802.11n Wi-Fi radios. The -Z suffix sets the Wi-Fi regulatory domain for Australia, New Zealand and Brazil.
Q: Which environmental conditions is it rated for?
A: It operates from -40 to 60 C in a sealed NEMA cabinet and up to 75 C with forced air, with an IP40 rating. It also meets industrial, railway, automotive and MIL-STD-810G standards.
