Cisco

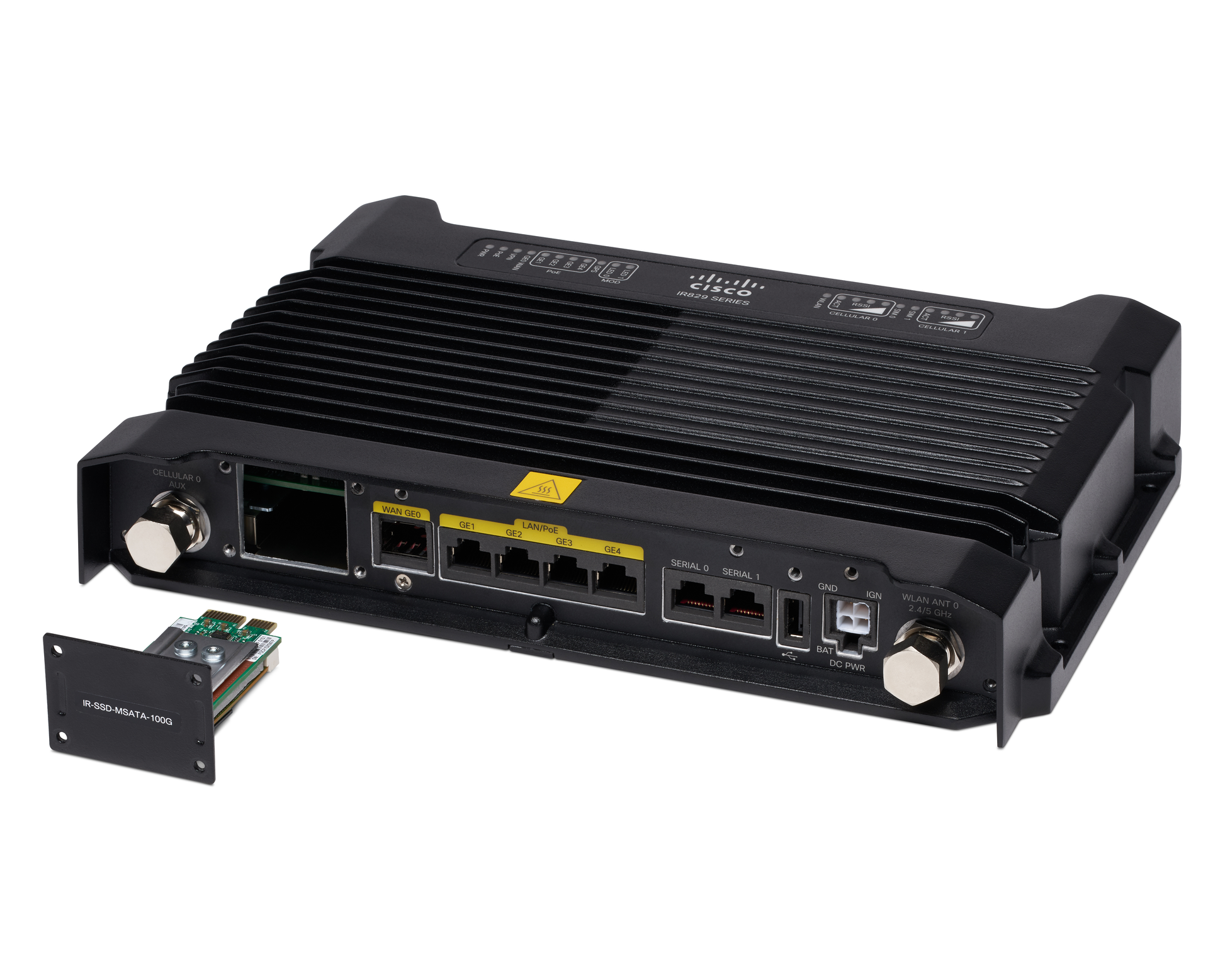

Cisco IR829B-LTE-LA-ZK9 | IR829B Industrial Router, LTE LA, Dual-Band Wi-Fi, 4x GE

SKU:IR829B-LTE-LA-ZK9

Request Quote
Sale Sold out
Shipping calculated at checkout.

Stock Status: Enquire

20-min response

Need a quote or bulk pricing? Answered within 20 minutes, Sydney business hours.

Description

The Cisco IR829B is a ruggedised industrial integrated services router from the Cisco 829 Industrial Integrated Services Routers range, built for fleet management, mass transit and rail, remote asset monitoring, utilities and other industrial IoT deployments. This is the single LTE variant for the Latin America (LA) region, with Wi-Fi regulatory domain Z, and the IR829B version has no mSATA slot and no PoE option.

It combines a single multimode 4G LTE (Cat 4) / 3G modem with dual SIM sockets for carrier redundancy, dual 802.11a/b/g/n radios in 2.4 GHz and 5 GHz, four 10/100/1000 Gigabit Ethernet LAN ports and one SFP uplink for copper or fibre at 100 Mbps or 1 Gbps. Two serial ports (RS-232 DTE and RS-232/RS-485 DCE) and GPS connect legacy industrial equipment and support asset tracking. It has 2 GB DRAM and 8 GB eMMC flash, takes a 9-32 VDC input and draws up to 40 W. It operates from -40 to 60 C in a sealed cabinet and carries IP40 and Class 1 Div 2 / Zone 2 hazardous location certifications.

The router runs the Universal Cisco IOS Software feature set and hosts applications at the edge with Cisco IOx. Hardware-accelerated IPsec, DMVPN, FlexVPN and a zone-based firewall secure traffic. It accepts standard SFP modules, and optional accessories include a DIN-rail kit, IP54 kit, DC power cord and external antennas.

Enquire with XS Network Tech for new or used pricing and availability.

Features

- Multimode 4G LTE / 3G cellular with dual SIM support for carrier redundancy
- Dual-band 802.11a/b/g/n integrated WLAN access point
- Cisco IOx application hosting at the network edge
- Hardware-accelerated AES-256/3DES, 20 IPsec tunnels, DMVPN and FlexVPN
- Zone-based firewall and multi-VRF with enterprise-grade QoS
- Rugged design for shock, vibration, humidity and a wide temperature range
- Integrated GPS for geo-fencing and asset tracking
- Managed through Cisco IoT Field Network Director, IoT Operations Dashboard, Cisco Configuration Professional Express and CLI/SNMP

Warranty

All products sold by XS Network Tech include a 12-month warranty on both new and used items. Our in-house technical team thoroughly tests used hardware prior to sale to ensure enterprise-grade reliability.

All technical data should be verified on the manufacturer data sheets.

View full details

specs-tabs

Collapsible content

Technical Specifications

FAQs

Technical Specifications

- Cellular: single integrated 4G LTE (Cat 4) / 3G modem, LA region
- LTE speed: 150 Mbps downlink / 50 Mbps uplink
- SIM sockets: dual SIM, active/backup mode
- Wi-Fi: dual 802.11a/b/g/n radios (2.4 GHz and 5 GHz), 2x2 MIMO, up to 300 Mbps per radio
- LAN: 4 x 10/100/1000 Gigabit Ethernet, no PoE option on IR829B
- Uplink: 1 x SFP, 100 Mbps / 1000 Mbps, copper or fibre
- Serial: 1 x RS-232 (DTE) and 1 x RS-232/RS-485 (DCE)
- Console: Mini type-B
- Memory: 2 GB DRAM
- Flash: 8 GB eMMC (4 GB usable)
- Storage: no mSATA slot on IR829B
- GPS: SMA antenna connector
- Power input: 9-32 VDC, nominal 12/24 V
- Maximum power consumption: 40 W without PoE
- Operating temperature: -40 to 60 C in a sealed NEMA cabinet
- Ingress protection: IP40
- Dimensions (H x W x D): 43.9 x 279 x 196 mm
- Weight: 2 kg
- Mounting: panel/door mount
- Hazardous locations: Class 1 Div 2, Zone 2, ATEX/IECEx
- Standards: EN61131-2, EN50155, SAEJ1455, MIL-STD-810G

FAQs

Q: What licensing does the IR829B-LTE-LA-ZK9 use?
A: It runs the Universal Cisco IOS Software feature set, IOS 15.6(3)M2 or later. No separate subscription is required for the router itself.

Q: What power does it need?
A: It takes a 9-32 VDC input, nominally 12 or 24 V. Maximum consumption is 40 W, as the IR829B has no PoE option.

Q: How does it differ from other IR829 variants?
A: This is the single LTE model for the LA region with Wi-Fi regulatory domain Z. The IR829B version has no mSATA slot and no PoE on its Ethernet ports.

Q: What can connect to the SFP uplink?
A: The SFP port takes standard SFP modules for copper or fibre links at 100 Mbps or 1 Gbps.

Q: Which mounting and installation accessories are available?
A: Optional accessories include a DIN-rail kit (IR829-DINRAIL), an IP54 kit (IR829-IP54-KIT), a DC power cord (IR829-DC-PWRCORD), external AC power supplies and a console cable (IR-CAB-CON-USB).
