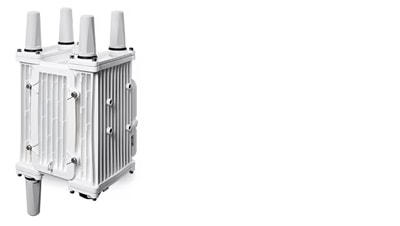

Cisco IR8140H-P-K9 | Catalyst IR8140H Industrial Router, 15W PoE, IP67
SKU:IR8140H-P-K9
Stock Status: Enquire
Need a quote or bulk pricing? Answered within 20 minutes, Sydney business hours.
Description
Description
The Catalyst IR8140H-P is a fully modular, IP67-rated heavy duty industrial router from the Catalyst IR8100 range. It is built for outdoor and harsh environments such as utilities and smart grid substations, smart cities, transportation, oil and gas, and mining, where it provides secure remote connectivity, Wi-SUN field area network aggregation and edge compute.
The -P variant adds 15W PoE on the copper supervisor port, alongside a Gigabit SFP port. The chassis takes up to two cellular modules (LTE Cat 4/6/18 or 5G sub-6GHz) and up to two WPAN modules, includes integrated GPS/GNSS, and operates from -40 to +70C. It runs Cisco IOS XE in autonomous or SD-WAN mode. Throughput is set by licence tier: 30 Mbps by default, 200 Mbps at the Performance tier, and uncapped at the Boost tier, which requires the HSEC licence. Software licensing and the throughput tier are selected separately.
The router needs the IRMH-SUP-SP supervisor module, an IRMH-PWR60W-AC 60W AC power supply module and the IRMH-BATT-BRKT battery mounting kit. It works with the IRMH cellular and WPAN modules, industrial SFPs such as the GLC-SX-MM-RGD and GLC-LX-SM-RGD, and wall or pole mounting kits.
Enquire with XS Network Tech for new or used pricing and availability.
Features
Features
- Modular platform with replaceable and upgradable supervisor, radio, power supply and battery kit
- Dual active 5G/LTE modules for WAN redundancy, load balancing and concurrent connections to two networks
- Multiple APNs and multi-bearer QoS
- SD-WAN capable via Cisco IOS XE in autonomous or controller mode
- Wi-SUN mesh capability with the 902-928 MHz WPAN module
- 15W PoE on the copper port, plus a 12V DC output option
- Cisco Trust Anchor, hardware-accelerated NGE, firewall and VPN
- Edge computing with an optional field-replaceable 100 GB industrial SSD
- Smart grid compliant with IEEE 1613 and IEC 61850-3
- Multi-VRF and VPN network segmentation
- Managed via WebUI, IoT Field Network Director, Cisco DNA Center, Cisco SD-WAN and Network PnP
Warranty
Warranty
All products sold by XS Network Tech include a 12-month warranty on both new and used items. Our in-house technical team thoroughly tests used hardware prior to sale to ensure enterprise-grade reliability.
All technical data should be verified on the manufacturer data sheets.
View full details
What is the difference between add to cart and request a quote?
Add to Cart lets you purchase in-stock products immediately at listed pricing.
Request a Quote is for customised pricing, volume-based deals, or orders that need a tailored response.
specs-tabs
Collapsible content
Technical Specifications
FAQs
Datasheet
Technical Specifications
- Chassis: IR8140H-P-K9 (PoE enabled)
- Ingress protection rating: IP67 / NEMA Type 4
- WAN interfaces: 1 x 10/100/1000 copper (PoE enabled, up to 15W), 1 x 10/100/1000 SFP
- Cellular modules: up to two (LTE Cat 4/6/18, 5G sub-6GHz), active/active or active/standby
- WPAN modules: up to two 902-928 MHz IEEE 802.15.4g (from IOS XE 17.7)
- GPS/GNSS: Yes
- Edge compute module: 100 GB SSD
- Console: RJ-45
- Digital alarms (I/O): 2
- Power supply: 60W AC, 100 to 240V AC
- External power options: 12V DC out, or 15W PoE for third-party devices
- Typical power consumption: 18.2W
- Maximum power consumption: 27W, 39.5W while charging all 3 batteries
- Battery backup: up to 3 x 4 Ah (12 Ah total)
- Operating temperature: -40 to +70C, type tested to 85C for 16 hours
- Dimensions (H x W x D) without antennas: 34.04 x 23.87 x 25.15 cm
- Dimensions (H x W x D) with multipurpose antennas: 50.8 x 23.87 x 25.15 cm
- Maximum chassis weight: 13.4 kg
- Mounting options: wall or pole mount
- Throughput tiers: T0 30 Mbps, T1 200 Mbps, T2 uncapped (requires HSEC licence)
- Industry standards: IEC 61850-3, IEEE 1613, FIPS 140-2, Common Criteria, USGv6, IEC 62443-4-1, FirstNet Capable
FAQs
Q: What licences does the IR8140H-P-K9 need?
A: It runs a Cisco IOS XE universal image with Smart Licensing. A software licence (Network Essentials or Network Advantage) and a throughput tier licence are selected separately. The default tier is 30 Mbps, and the uncapped Boost tier requires the L-8100-HSEC-K9 licence.
Q: How is the router powered?
A: It requires the IRMH-PWR60W-AC 60W AC power supply module (100-240V AC). Typical draw is 18.2W, with a maximum of 27W, or 39.5W while charging three batteries. Optional IRMH-BATT-4AH batteries mount in the IRMH-BATT-BRKT kit.
Q: What PoE does the -P model provide?
A: The IR8140H-P-K9 provides up to 15W PoE on the copper port. As an alternative, a 12V DC output can power external third-party devices.
Q: Which modules and optics does it work with?
A: Cellular options include the IRMH-LTE7-NA-900, IRMH-LTE7-EAL, IRMH-5GS6-RC-GL and IRMH-5GR16SA. WPAN options are the IRMH-WPAN-NA and IRMH-WPAN-BRZ. Industrial SFPs include the GLC-SX-MM-RGD, GLC-LX-SM-RGD, GLC-ZX-SM-RGD, GLC-FE-100FX-RGD and GLC-FE-100LX-RGD.
Q: How does the IR8140H-P-K9 differ from the IR8140H-K9?
A: The -P model has PoE enabled, providing up to 15W on the copper port. Otherwise the two share the same IP67 modular platform.
Datasheet
This product has a detailed PDF datasheet available. Open PDF datasheet in a new tab .
