Cisco

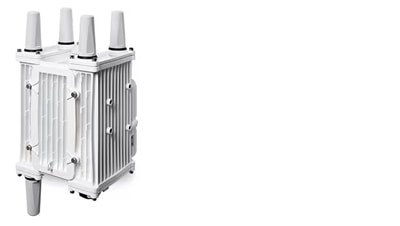

Cisco IR8140H-K9 | Catalyst IR8140H Heavy Duty Industrial Router, IP67, Non-PoE

SKU:IR8140H-K9

Request Quote
Sale Sold out
Shipping calculated at checkout.

Stock Status: Enquire

20-min response

Need a quote or bulk pricing? Answered within 20 minutes, Sydney business hours.

Description

The Catalyst IR8140H-K9 is a rugged, IP67-rated modular industrial router chassis from the Catalyst IR8100 Heavy Duty Series. It is built for remote asset connectivity in utilities, transportation, oil and gas, and mining, and mounts on a wall or pole in harsh outdoor locations. This is the base non-PoE platform, so it suits deployments that do not need the 15W PoE port found on the IR8140H-P-K9.

The modular design supports a supervisor module with one 10/100/1000 copper port and one 10/100/1000 SFP port, plus up to two cellular modules (LTE Cat 4/6/18 or 5G sub-6 GHz) running active/active or active/standby. Up to two 902-928 MHz Wi-SUN WPAN modules are supported from IOS XE 17.7, and integrated GPS/GNSS is included. It operates from -40 to +70 C with a fanless, conduction-cooled design, with typical power draw of 18.2 W and a maximum of 27 W. The non-PoE chassis provides a 12V DC output for external devices.

The platform uses a Smart License model with Network Essentials or Network Advantage software tiers and a throughput licence, and runs Cisco IOS XE 17.5.1 or later in autonomous or SD-WAN controller mode. Compatible modules include the IRMH-SUP-SP supervisor, IRMH-PWR60W-AC power supply, IRMH-BATT-BRKT battery kit and cellular modules such as IRMH-LTE7-EAL and IRMH-5GR16SA.

Enquire with XS Network Tech for new or used pricing and availability.

Features

- Modular platform with LTE Advanced, 5G, 5G RedCap and RJ45/SFP Ethernet WAN options
- Dual active 5G/LTE modules for WAN redundancy, load balancing and higher throughput
- Multiple APNs for traffic segregation, with up to 8 bearers per cellular interface
- SD-WAN capable through Cisco IOS XE autonomous and controller modes
- Optional Wi-SUN mesh WPAN module for Cisco Resilient Mesh endpoints
- Smart-grid compliant (IEEE 1613, IEC 61850-3) for harsh substation environments
- Cisco Trust Anchor Technology, secure boot, IPsec, FlexVPN, DMVPN and zone-based firewall
- Fanless, conduction-cooled design for extended temperature operation
- Manageable via WebUI, Cisco IoT Field Network Director, Catalyst Center and Cisco SD-WAN

Warranty

All products sold by XS Network Tech include a 12-month warranty on both new and used items. Our in-house technical team thoroughly tests used hardware prior to sale to ensure enterprise-grade reliability.

All technical data should be verified on the manufacturer data sheets.

View full details

specs-tabs

Collapsible content

Technical Specifications

FAQs

Datasheet

Technical Specifications

- Chassis: IR8140H-K9, non-PoE base platform
- Ingress protection: IP67
- Mounting: wall or pole
- Supervisor module (IRMH-SUP-SP): 1 x 10/100/1000 copper port and 1 x 10/100/1000 SFP port
- Cellular modules: up to two (LTE Cat 4/6/18, 5G sub-6 GHz), active/active or active/standby
- WPAN modules: up to two 902-928 MHz Wi-SUN modules from IOS XE 17.7
- Satellite positioning: integrated GPS/GNSS
- Console: RJ-45
- Digital alarms (I/O): 2
- Edge compute: optional 100 GB SSD module
- Operating temperature: -40 to +70 C, type tested to 85 C for 16 hours
- Power supply: 60W AC module (IRMH-PWR60W-AC), 100-240V AC
- External power output: 12V DC for third-party devices
- Typical power consumption: 18.2 W
- Maximum power consumption: 27 W, or 39.5 W with 3 battery units charging
- Battery backup: up to three 4 Ah units, 12 Ah total
- Dimensions without antennas (H x W x D): 34.04 x 23.87 x 25.15 cm
- Dimensions with multipurpose antennas (H x W x D): 50.8 x 23.87 x 25.15 cm
- Maximum chassis weight: 13.4 kg
- Standards: IEC 61850-3, IEEE 1613, FIPS 140-2, Common Criteria, USGv6, IEC 62443-4-1
- Software: Cisco IOS XE 17.5.1 or later

FAQs

Q: What licensing does the IR8140H-K9 use?
A: It uses Smart Licensing, so a Cisco Smart Account is required. Software is offered as Network Essentials or Network Advantage, and a throughput licence is also needed: T0 at 30 Mbps, T1 at 200 Mbps or T2 uncapped.

Q: How is the IR8140H-K9 powered?
A: It needs the IRMH-PWR60W-AC 60W AC power supply module (100-240V AC). An optional IRMH-BATT-BRKT mounting kit holds up to three IRMH-BATT-4AH batteries for backup power.

Q: What is the difference between the IR8140H-K9 and the IR8140H-P-K9?
A: The IR8140H-K9 is the non-PoE chassis and provides a 12V DC output for external devices. The IR8140H-P-K9 adds a 15W PoE port.

Q: Which modules does the IR8140H-K9 work with?
A: It uses the IRMH-SUP-SP supervisor module, the IRMH-PWR60W-AC power supply and the IRMH-BATT-BRKT battery kit. Cellular options include IRMH-LTE7-EAL, IRMH-LTE7-NA-900, IRMH-5GS6-RC-GL and IRMH-5GR16SA.

Q: What software version does it require?
A: It requires Cisco IOS XE 17.5.1 or later. Wi-SUN WPAN module support is available from IOS XE 17.7.
