Cisco

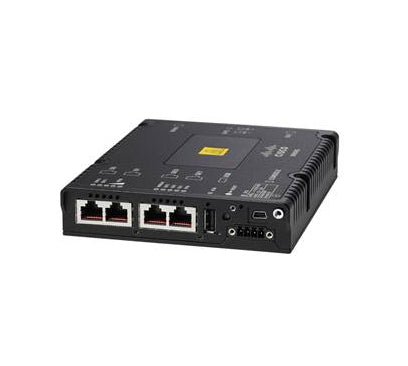

Cisco IR809G-LTE-LA-K9 | IR809 Industrial Router, 4G LTE Cat 4, Dual SIM, AU/Asia/LATAM

SKU:IR809G-LTE-LA-K9

Request Quote
Sale Sold out
Shipping calculated at checkout.

Stock Status: Enquire

20-min response

Need a quote or bulk pricing? Answered within 20 minutes, Sydney business hours.

Description

The Cisco IR809G-LTE-LA-K9 is a compact, ruggedised industrial integrated services router from the Cisco 809 range, built for harsh sites that need cellular WAN connectivity. It suits distribution automation, secondary substations, remote asset management, SCADA gateway and RTU backhaul, and transportation deployments.

This variant carries an integrated multimode 4G LTE Cat 4 modem delivering up to 150 Mbps down and 50 Mbps up, with 3G fallback. It is the version for Australia, Asia including Japan, and Latin America, covering LTE FDD bands 1, 3, 5, 7, 8, 18, 19, 21 and 28 plus TDD bands 38 to 41. Dual SIM active-backup failover keeps the link available if one carrier drops. Two Gigabit Ethernet ports handle LAN and WAN, alongside one RS-232 and one RS-232/RS-485 serial port. It has 2 GB DRAM and 4 GB flash, and accepts a 9.6 to 60V DC input with a maximum draw of 19 W. It supports 20 IPsec tunnels and runs Cisco IOS with IOx application hosting.

The unit mounts on DIN rail, panel or door, is rated IP30, and operates from -40 to 60 C sealed, or up to 75 C with forced air. Hazardous location approvals include Class 1 Div 2 and ATEX Zone 2, and it complies with IEEE 1613 and IEC 61850-3 for smart-grid use.

Enquire with XS Network Tech for new or used pricing and availability.

Features

- Multimode 4G LTE Cat 4 with 3G fallback
- Dual SIM cellular failover and multihoming
- IPsec, DMVPN, FlexVPN, Easy VPN and GET VPN support
- Zone-based policy firewall and VRF instances for cellular
- Multiple PDN and APN support for traffic segregation
- Cisco IOx application hosting at the network edge
- SCADA gateway features including DNP3, IEC 60870 T101 to T104 and Raw Socket
- GPS support for remote asset tracking

Warranty

All products sold by XS Network Tech include a 12-month warranty on both new and used items. Our in-house technical team thoroughly tests used hardware prior to sale to ensure enterprise-grade reliability.

All technical data should be verified on the manufacturer data sheets.

View full details

specs-tabs

Collapsible content

Technical Specifications

FAQs

Technical Specifications

- Cellular: multimode 4G LTE Cat 4, 150 Mbps down / 50 Mbps up, 3G fallback, no 2G support
- LTE FDD bands: 1, 3, 5, 7, 8, 18, 19, 21, 28
- LTE TDD bands: 38, 39, 40, 41
- SIM: dual SIM, active-backup failover
- LAN/WAN ports: 2 x 10/100/1000BASE-T Gigabit Ethernet
- Serial: 1 x RS-232 and 1 x RS-232/RS-485, up to 115,200 baud
- Console: Mini type-B USB
- Memory: 2 GB DRAM, 4 GB flash
- IPsec tunnels: 20
- Power input: 9.6 to 60V DC
- Power consumption: 12 W idle, 15 W typical, 19 W maximum
- Operating temperature: -40 to 60 C sealed cabinet, -40 to 75 C with forced air
- Mounting: DIN rail, panel and door mount
- Ingress protection: IP30
- Dimensions (H x W x D): 29.21 x 128 x 159.2 mm
- Weight: 0.77 kg
- MTBF (ground benign): 440,000 hours or more
- Hazardous locations: ANSI/ISA 12.12.01 Class 1 Div 2, IECEx and ATEX Zone 2
- Standards: IEEE 1613, IEC 61850-3

FAQs

Q: Which regions does this LTE variant cover?
A: The LA variant is for Australia, Asia including Japan, and Latin America. It supports LTE FDD bands 1, 3, 5, 7, 8, 18, 19, 21 and 28 and TDD bands 38 to 41.

Q: What power does it need?
A: It runs from a 9.6 to 60V DC input and draws 12 W idle, 15 W typical and 19 W maximum. AC operation uses the optional PS-SWITCH-AC-2P or 3P power supplies.

Q: How do I mount it?
A: It can be mounted on a DIN rail, on a panel or on a door. The optional IR809-DINRAIL and IR809-VM-DINRAIL mounts are listed for it.

Q: Does it support 2G networks?
A: No. It supports 4G LTE with 3G fallback, but there is no 2G support.

Q: What management tools work with this router?
A: It can be managed with Cisco IoT Operations Dashboard, IoT Field Network Director, Cisco Prime and APIC-EM.
