Cisco

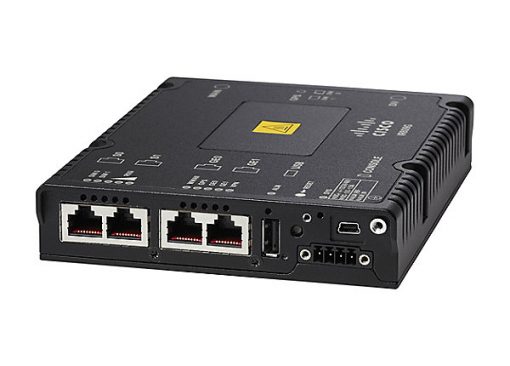

Cisco IR809G-LTE-GA-K9 | IR809 Industrial Router, Global 4G LTE Cat 3, Dual SIM

SKU:IR809G-LTE-GA-K9

Request Quote
Sale Sold out
Shipping calculated at checkout.

Stock Status: Enquire

20-min response

Need a quote or bulk pricing? Answered within 20 minutes, Sydney business hours.

Description

The Cisco IR809 is a compact, ruggedised industrial router from the Cisco 809 Industrial Integrated Services Router range (IR800 Series). This global model carries a multimode 4G LTE modem and is built for IoT and edge deployments such as SCADA gateways, smart-grid distribution automation and secondary substations, transportation, remote asset tracking, and cellular primary or backup WAN at harsh-environment sites.

The Global/Europe LTE modem is Category 3 and supports bands 1, 3, 7, 8 and 20, with theoretical speeds of 100 Mbps down and 50 Mbps up. It falls back to UMTS/HSPA+ (850/900/1900/2100 MHz) and quad-band EDGE/GPRS/GSM. The router provides two 10/100/1000BASE-T Gigabit Ethernet ports, one RS-232 and one RS-232/RS-485 serial port, dual SIM slots in active-backup mode and integrated GPS. It has 2 GB DRAM and 4 GB flash, and supports 20 IPsec tunnels.

Power is a 9.6 to 60 V DC input with a 19 W maximum draw and no PoE. It operates from -40 to 60 C in a sealed NEMA cabinet, up to 75 C with forced air, and mounts on a DIN rail, panel or door. It is IEEE 1613 and IEC 61850-3 certified. A carrier SIM and data plan is required.

Enquire with XS Network Tech for new or used pricing and availability.

Features

- Dual SIM support in active-backup mode for cellular failover
- Integrated GPS for asset tracking
- SCADA gateway features including DNP3 serial to DNP3/IP and IEC 60870 T101 to T104 translation
- Cisco IOS zone-based policy firewall and VPN (DMVPN, FlexVPN, GET VPN, SSL VPN)
- IPv4/IPv6 routing with OSPF, BGP, EIGRP and VRF-Lite, plus QoS and HSRP/VRRP
- Remote management via Cisco IoT Operations Dashboard and IoT Field Network Director
- Remote firmware upgrade over 4G LTE
- Edge compute and automation at the device

Warranty

All products sold by XS Network Tech include a 12-month warranty on both new and used items. Our in-house technical team thoroughly tests used hardware prior to sale to ensure enterprise-grade reliability.

All technical data should be verified on the manufacturer data sheets.

View full details

specs-tabs

Collapsible content

Technical Specifications

FAQs

Technical Specifications

- Model: IR809G-LTE-GA-K9
- Region: Europe/Global
- Cellular: Multimode 4G LTE Category 3
- LTE bands: 1, 3, 7, 8, 20 (800/900/1800/2100/2600 MHz)
- LTE speed: 100 Mbps download / 50 Mbps upload (theoretical)
- Fallback: UMTS/HSPA+ 850/900/1900/2100 MHz; quad-band EDGE/GPRS/GSM
- HSPA+ speed: up to 42.2 Mbps down, 5.76 Mbps up
- LAN/WAN: 2 x 10/100/1000BASE-T Gigabit Ethernet
- Serial: 1 x RS-232 and 1 x RS-232/RS-485, up to 115,200 baud
- SIM: Dual SIM, active-backup
- Console: Mini type-B USB
- Memory: 2 GB DRAM, 4 GB flash
- Power input: 9.6 to 60 V DC
- Power consumption: 12 W idle, 15 W typical, 19 W maximum
- Operating temperature: -40 to 60 C sealed NEMA cabinet, up to 75 C with 200 LFM forced air
- IP rating: IP30
- Mounting: DIN rail, panel or door
- Dimensions (H x W x D): 29.21 x 128 x 159.2 mm
- Weight: 0.77 kg
- MTBF: 440,000 hours or more (ground benign)
- Standards: IEEE 1613, IEC 61850-3
- Hazardous location: ANSI/ISA 12.12.01 Class 1 Div 2, IECEx and ATEX Class I Zone 2
- VPN: 20 IPsec tunnels, hardware-accelerated AES/3DES

FAQs

Q: Which LTE bands does this router support?
A: It supports LTE bands 1, 3, 7, 8 and 20 (800/900/1800/2100/2600 MHz) at Category 3, with fallback to UMTS/HSPA+ and quad-band EDGE/GPRS/GSM.

Q: How is the router powered?
A: It takes a 9.6 to 60 V DC input and draws 12 W idle, 15 W typical and 19 W maximum. It has no PoE. An optional AC adapter, PWR-IE50W-AC-L(=), is available for 110/240 V AC.

Q: What software and licensing does it use?
A: It runs a Universal Cisco IOS image, IOS 15.6(3)M2 or later. Optional licences include SL-IR800-DATA-K9, SL-IR800-SNPE-K9, SL-IR800-SEC-K9 and SL-IR800-IPB-K9. A carrier SIM and data plan are also required.

Q: What mounting and accessories does it work with?
A: It mounts on a DIN rail, panel or door, using kits such as IR809-DINRAIL1 or IR809-VM-DINRAIL2. Antennas such as ANT-3-4G2G1-O and an active GPS SMA antenna are supported.

Q: Is it suitable for substation use?
A: Yes. It is certified to IEEE 1613 and IEC 61850-3, and supports serial protocols including DNP3 and T101-104 for SCADA and distribution automation.
