Cisco

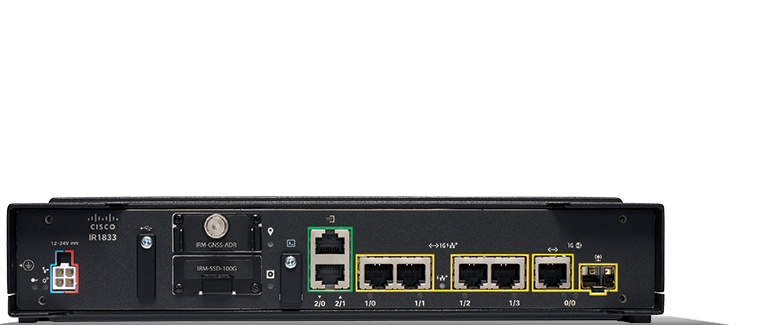

Cisco IR1833-K9 | Catalyst IR1833 Rugged Router, 2x RS-232, No Digital I/O

SKU:IR1833-K9

Request Quote
Sale Sold out
Shipping calculated at checkout.

Stock Status: Enquire

20-min response

Need a quote or bulk pricing? Answered within 20 minutes, Sydney business hours.

Description

The Cisco Catalyst IR1833 is a modular, ruggedised industrial router in the Catalyst IR1800 Rugged Series, built for mobile and remote assets such as vehicles, transit and rail, renewable energy sites and other harsh industrial locations. It runs Cisco IOS XE and supports Cisco SD-WAN, managed through Cisco SD-WAN Manager or Catalyst Center.

The IR1833-K9 provides 4 x 10/100/1000 RJ-45 LAN ports and a combo 10/100/1000 RJ-45/SFP WAN port, with PoE/PoE+ support. Two pluggable slots take LTE or 5G cellular modules, and a wide pluggable slot accepts a Wi-Fi 6 module. Serial connectivity is 2 x RS-232 (one DTE, one DCE) with no digital I/O, which separates it from the IR1835-K9 that adds 4 x digital I/O and RS-232/485. It accepts 9-36 V DC input, mounts on a DIN rail or panel, and is rated for -40 to 75 C operation with forced air.

It works with the P-5GS6-RC-GL, P-5GS6-R16SA-GL, P-LTEA7-NA, P-LTEA7-EAL, P-LTEA7-JP and P-LTE-GB cellular modules, the IRM-SSD-100G industrial SSD and the IRM-GNSS-ADR dead reckoning GNSS module. Software licensing uses the Cisco IR1800 licence structure, with a network stack and throughput tier ordered separately.

Enquire with XS Network Tech for new or used pricing and availability.

Features

- Runs Cisco IOS XE, a fully programmable operating system
- Supports Cisco IOS XE SD-WAN, managed via Cisco SD-WAN Manager or Catalyst Center
- Modular design with pluggable LTE and 5G cellular modules, including private LTE support
- Wi-Fi 6 pluggable module with CAPWAP and Workgroup Bridge modes
- Supports Cisco ThousandEyes Assurance and Cisco Cyber Vision
- Enterprise-grade security with NGFW capability
- Automatic ignition power management with OBD-II/CAN bus power option for vehicles
- Optional IP54 kit and M12 kit for harsher installations

Warranty

All products sold by XS Network Tech include a 12-month warranty on both new and used items. Our in-house technical team thoroughly tests used hardware prior to sale to ensure enterprise-grade reliability.

All technical data should be verified on the manufacturer data sheets.

View full details

specs-tabs

Collapsible content

Technical Specifications

FAQs

Datasheet

Technical Specifications

- LAN ports: 4 x 10/100/1000 Mbps RJ-45
- WAN port: 1 x combo 10/100/1000 Mbps RJ-45/SFP
- Cellular module slots: 2 x pluggable (LTE/5G)
- Wi-Fi module slot: 1 x wide pluggable (Wi-Fi 6)
- Serial: 1 x RS-232 DTE and 1 x RS-232 DCE
- Digital I/O: None
- Power over Ethernet: PoE/PoE+ supported
- Console: 1 x micro-USB
- USB: 1 x USB 2.0 Type A
- Expandable storage: 1 x slot for IRM-SSD-100G (100 GB industrial SSD)
- GNSS: 1 x slot for IRM-GNSS-ADR automotive dead reckoning module
- Power input: 9-36 V DC (12/24 V nominal), 4-pin Molex Mini-Fit power/CAN bus connector
- Power consumption: idle 16 W (12 V) / 17 W (24 V), maximum 27 W without PoE and 71 W with PoE
- Operating temperature: -40 to 75 C with forced air at 200 LFM
- IP rating: IP40, IP54 with IR1800-IP54-KIT
- Mounting: DIN rail or panel mount
- Dimensions (H x W x D): 55.9 x 280.4 x 204.7 mm
- Weight: 2.4 kg without modules, 3.1 kg fully configured
- Operating altitude: up to 13,800 ft
- Standards: SAE J1455, MIL STD 810G, EN 50155, EN 45545-2, UNECE R10
- Hazardous locations: UL 121201 / CSA 213 Class I Div 2, ATEX/IECEx Class I Zone 2

FAQs

Q: Does the IR1833-K9 need a software licence?
A: Yes. It uses the Cisco IR1800 licence structure, made up of a network stack (Network Essentials or Network Advantage) and a throughput tier. The default tier is T0 at 50 Mbps, Performance T1 is 250 Mbps, and Uncapped T2 also needs the L-18-HSEC-K9 licence. Licences are ordered separately.

Q: How is the IR1833-K9 powered?
A: It takes 9-36 V DC (12/24 V nominal) through a 4-pin Molex Mini-Fit power/CAN bus connector. Maximum draw is 27 W without PoE and 71 W with PoE. The optional PWR-MF4-125W-AC adapter and OBD-II cables are available.

Q: Which cellular modules does it work with?
A: It supports the P-5GS6-RC-GL, P-5GS6-R16SA-GL, P-LTEA7-NA, P-LTEA7-EAL, P-LTEA7-JP and P-LTE-GB pluggable modules. The P-LTEA7-EAL covers Australia and New Zealand.

Q: How does it differ from the IR1835-K9?
A: The IR1833-K9 has 2 x RS-232 serial ports and no digital I/O. The IR1835-K9 adds 4 x digital I/O and RS-232/485 serial.

Q: Can it be installed outdoors or in a vehicle?
A: It is rated IP40, or IP54 with the IR1800-IP54-KIT, and operates from -40 to 75 C with forced air. It supports automatic ignition sensing and an OBD-II/CAN bus power option for vehicle installations.

Datasheet

This product has a detailed PDF datasheet available. Open PDF datasheet in a new tab .
