Cisco CISCO5915RC-K9 | 5915 ESR Router Card, 5x FE, Conduction-Cooled
SKU:CISCO5915RC-K9
Stock Status: Enquire
Need a quote or bulk pricing? Answered within 20 minutes, Sydney business hours.
Description
Description

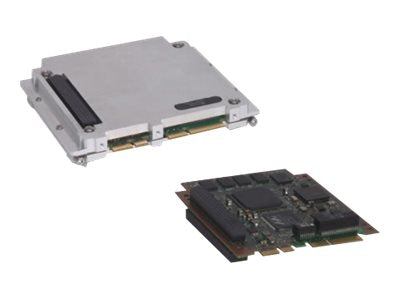

The Cisco 5915 Embedded Services Router is a ruggedised PCI-104 router and switch card for mobile and embedded networks in harsh environments. This conduction-cooled model suits first-responder and armoured vehicles, rail, border security, outdoor video surveillance aggregation and on-demand disaster-response connectivity across industrial, public safety, transportation, defence and energy markets.
It provides five 10/100 Fast Ethernet ports, two routed and three switched, plus one RS-232 console port. The card carries 512 MB DRAM and 256 MB flash, and an onboard processor handles hardware encryption including IPsec, SSL/TLS, SRTP, 3DES, AES and IKE. The conduction-cooled design is rated for operation from -40 to +85 C and up to 15,000 ft (4500 m), and it supports up to 32 VLANs per router and up to 48 phones with Cisco Unified CME.
The card needs a separate Cisco IOS Software image, either Enterprise Base or Advanced Enterprise. Advanced Enterprise adds IPv6, SSH, Mobile IP, radio-aware routing, Suite-B cryptography, VPN and firewall features. It follows the standard PCI-104 form factor for integration into commercial or custom enclosures, and was designed as a replacement for the Cisco 3200 Series Mobile Access Router.
Enquire with XS Network Tech for new or used pricing and availability.
Features
Features
- Cisco Mobile Ready Net support for mission-critical mobile communications
- Mobile IP and Cisco Mobile Networks in Cisco IOS Software
- Onboard hardware encryption offloads crypto from the routing engine
- Two routed and three switched Fast Ethernet interfaces
- Cisco Unified Communications Manager Express support for up to 48 phones
- Radio-aware routing (DLEP, R2CP) and Mobile Ad Hoc Network enhancements with the Advanced Enterprise image
- Suite-B cryptography support with the Advanced Enterprise image
Warranty
Warranty
All products sold by XS Network Tech include a 12-month warranty on both new and used items. Our in-house technical team thoroughly tests used hardware prior to sale to ensure enterprise-grade reliability.
All technical data should be verified on the manufacturer data sheets.
View full details
What is the difference between add to cart and request a quote?
Add to Cart lets you purchase in-stock products immediately at listed pricing.
Request a Quote is for customised pricing, volume-based deals, or orders that need a tailored response.
specs-tabs
Collapsible content
Technical Specifications
FAQs
Technical Specifications
- Form factor: Industry-standard PCI-104, 3.775 x 4 in. (96 x 101 mm)
- Cooling: Conduction-cooled
- Fast Ethernet: Five 10/100 ports (two routed, three switched) with autonegotiation
- Console port: One RS-232 console port with modem flow-control signalling
- LEDs: LED signals provided on edge finger pins
- DRAM: 512 MB
- Flash memory: 256 MB
- Hardware encryption: Onboard processor supporting IPsec, SSL/TLS, SRTP, 3DES, AES, IKE
- Operating temperature: -40 to +85 C (-40 to +185 F)
- Nonoperating temperature: -51 to +85 C (-60 to +185 F)
- Altitude: Up to 15,000 ft (4500 m)
- VLANs: Up to 32 per router
- Cisco Unified CME: Up to 48 phones
- Software images: C5915-entbase-mz (Enterprise Base), C5915-adventerprisek9-mz (Advanced Enterprise)
FAQs
Q: Does the 5915 card need a software licence?
A: Yes. It needs a separate Cisco IOS Software image, either Enterprise Base (S591EBK9-15201GC) or Advanced Enterprise (S591AESK9-15201GC). Advanced Enterprise adds IPv6, SSH, Mobile IP, radio-aware routing, Suite-B, VPN and firewall features.
Q: How is the card powered?
A: Power is supplied through the PCI-104 edge-finger connector of the host enclosure. The card is described as low power.
Q: What is the difference between CISCO5915RC-K9 and the air-cooled model?
A: CISCO5915RC-K9 is the conduction-cooled version, rated for -40 to +85 C operation. The air-cooled model is CISCO5915RA-K9.
Q: What enclosures or systems does it fit?
A: It uses the standard PCI-104 form factor (96 x 101 mm) for embedding in commercial or custom enclosures. It was designed as a replacement for the Cisco 3200 Series Mobile Access Router.
