Cisco

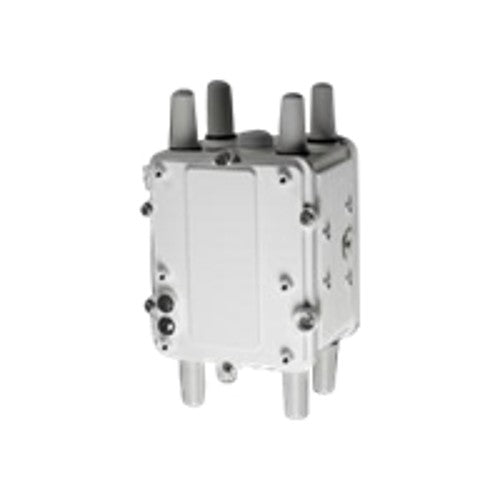

Cisco CGR1240/K9 | CGR 1240 Industrial Router, 4 Module Slots, 2 GE, Wi-Fi

SKU:CGR1240/K9

Request Quote
Sale Sold out
Shipping calculated at checkout.

Stock Status: Enquire

20-min response

Need a quote or bulk pricing? Answered within 20 minutes, Sydney business hours.

Description

The CGR 1240 is a weatherproof, pole-mount Connected Grid Router in the Cisco 1000 Series, built for outdoor utility and Field Area Network deployments. It runs Cisco IOS in a NEMA Type 4X / IP67 enclosure and is suited to Advanced Metering Infrastructure, Distribution Automation, Distributed Energy Resource integration and smart city lighting. It can aggregate RF mesh endpoints and legacy serial devices such as RTUs and IEDs, then backhaul over Ethernet fibre, cellular or Wi-Fi.

This base chassis has four Connected Grid module slots, 2 Gigabit Ethernet combo ports (10/100/1000 copper or 100/1000 SFP), 4 Fast Ethernet copper ports, 2 RS-232/RS-485 serial ports, integrated GPS and an autonomous 802.11 b/g/n Wi-Fi access point for local management access. It uses an AC power supply rated 100-240 VAC with a typical draw of 20-28 W and a maximum of 75 W. Operating temperature range is -40 to +70 C, with no moving parts and conduction cooling.

It accepts the supported rugged SFPs, WPAN, LTE and compute modules listed in the specifications, and is mounted with the CGR-PMK1000 pole mount kit or on a wall. Management is through Cisco IoT Field Network Director.

Enquire with XS Network Tech for new or used pricing and availability.

Features

- Runs Cisco IOS Software with Layer 3 services such as FlexVPN
- Cisco IOx support for hosting third-party applications at the network edge
- 902-928 MHz IPv6 RF mesh can aggregate up to 5000 endpoints such as smart meters
- SCADA serial-to-IP protocol translation (IEC 60870-5-101/104, DNP3) and raw socket support
- Security: IEEE 802.1x, IPsec VPN, FlexVPN, DMVPN, IEEE 802.1AR device identity, RBAC, ACLs, SSHv2, SNMPv3 and door tamper detection
- Built for IEEE 1613 and IEC 61850-3 with no moving parts and conduction cooling
- Optional battery backup units give up to 12 hours of operation on AC failure
- Secure zero-touch commissioning and management through IoT Field Network Director

Warranty

All products sold by XS Network Tech include a 12-month warranty on both new and used items. Our in-house technical team thoroughly tests used hardware prior to sale to ensure enterprise-grade reliability.

All technical data should be verified on the manufacturer data sheets.

View full details

specs-tabs

Collapsible content

Technical Specifications

FAQs

Technical Specifications

- Module slots: 4 x Connected Grid module slots
- Gigabit Ethernet: 2 x combo ports (10/100/1000 copper or 100/1000 SFP)
- Fast Ethernet: 4 x 10/100 copper ports (ETH 2/5 supports PoE up to 15.4 W)
- Serial: 2 x RS-232/RS-485
- GPS: Integrated
- Wi-Fi: Integrated 802.11 b/g/n access point (autonomous)
- USB: 2 x Type-A host ports
- Console/AUX: 1 x RJ-45
- Digital alarm inputs: 2
- Digital alarm outputs: 2
- Memory: 1 GB DDR SDRAM, 16 MB boot flash
- Storage: 2 GB SD flash card
- Power supply: AC, 100-240 VAC
- Typical power consumption: 20-28 W depending on configuration
- Maximum power consumption: 75 W
- Third-party radio power output: 12 VDC, 12 W continuous
- Operating temperature: -40 to +70 C (derated to 50 C max with a cellular module in slot 6)
- Enclosure: NEMA Type 4X / IP67
- Mounting: Pole-mount and wall-mount
- Dimensions (H x W x D): 28.7 x 24.6 x 21.6 cm without antennas
- Typical weight fully configured: 10.4 kg
- Environmental compliance: IEC 61850-3, IEEE 1613
- Safety: UL 60950-1, EN 60950-1, AS/NZS 60950.1

FAQs

Q: Which licence tier does the CGR 1240 use?
A: It is a Cisco IOS-based router with optional licences available: SL-CGR1K-IPB-K9 (IP Base), SL-CGR1K-SEC-K9 (Security) and SL-CGR1K-DATA-K9 (Data). Enquire to confirm the tier you need.

Q: How is the CGR 1240 powered?
A: It uses an AC power supply for 100-240 VAC input. Typical draw is 20-28 W and the maximum is 75 W. Optional CGR-BATT-4AH battery backup units can be added, up to three. It can also supply 12 VDC at 12 W to external third-party radios.

Q: Which SFPs work in the combo Gigabit ports?
A: The supported rugged SFPs are GLC-SX-MM-RGD, GLC-LX-SM-RGD, GLC-ZX-SM-RGD, GLC-FE-100FX-RGD, GLC-FE-100LX-RGD, GLC-BX-D and GLC-BX-U.

Q: Which modules can be installed in the four module slots?
A: Supported modules include WPAN modules (CGM-WPAN-FSK-NA, CGM-WPAN-OFDM-FCC, CGM-WPAN-OFDM-ANZ for Australia, CGM-WPAN-OFDM-BRZ), LTE modules (CGM-4G-LTE-EA-900, CGM-4G-LTE-EA-AB, CGM-4G-LTE-LA-AB) and compute modules (CGM-SRV-64, CGM-SRV-128).

Q: How is the CGR 1240 mounted and managed?
A: It is pole-mounted with the CGR-PMK1000 pole mount kit and CGR-PMK-BAND band straps, or wall-mounted. It is managed with Cisco IoT Field Network Director, or locally through the integrated Wi-Fi access point or RJ-45 console port.
