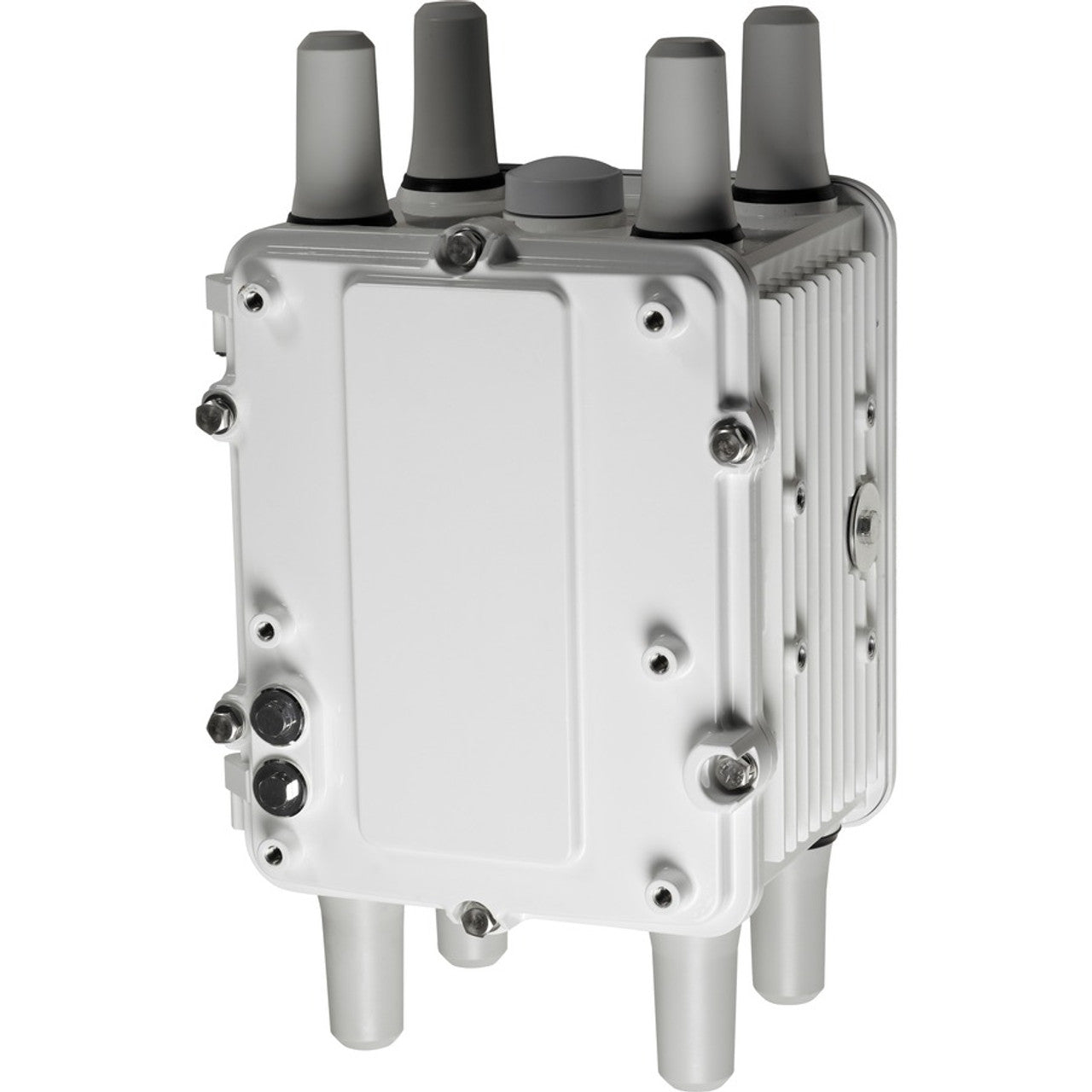

Cisco CGR1240/K9-0CONN | CGR 1240 Industrial Router, 2x GE, 4x FE, 4 Slots
SKU:CGR1240/K9-0CONN
Stock Status: Enquire
Need a quote or bulk pricing? Answered within 20 minutes, Sydney business hours.
Description
Description
The Cisco CGR 1240 is a ruggedised, weatherproof modular router from the Cisco 1000 Series Connected Grid Routers. It is built for outdoor pole-top and wall deployments and suits utility field area networks, smart metering, distribution automation, distributed energy resource integration, smart street lighting and smart city applications.
It provides 4 communication module slots, 2 combination Gigabit Ethernet ports (10/100/1000 copper or 100/1000 SFP), 4 Fast Ethernet copper ports and 2 serial ports (RS-232/RS-485). Integrated autonomous 802.11 b/g/n Wi-Fi and GPS are included. It operates from -40 to +70 C in a NEMA Type 4 enclosure and is IEC 61850-3 and IEEE 1613 compliant. Typical power draw is 20-28 W from an AC supply, with a maximum of 75 W.
The router runs Cisco IOS with Cisco IOx application hosting. Supported rugged SFPs include GLC-SX-MM-RGD, GLC-LX-SM-RGD and GLC-ZX-SM-RGD. Communication modules cover WPAN, 4G LTE and compute options, and the pole mount kit CGR-PMK1000 is supported.
Enquire with XS Network Tech for new or used pricing and availability.
Features
Features
- Runs Cisco IOS with FlexVPN, IPsec, DMVPN, OSPF, BGP, EIGRP and IPv4/IPv6
- Cisco IOx for hosting third-party applications at the network edge
- 902-928 MHz IPv6 RF mesh (Wi-SUN compliant Cisco Resilient Mesh) aggregating up to 5000 endpoints
- SCADA serial-to-IP protocol translation for IEC 60870-5-101/104 and DNP3
- IEEE 802.1x, 802.1AR device identity, RBAC and hardware-stored X.509 certificate with tamper-resistant design
- Door tamper detection and battery health monitoring
- Secure zero-touch commissioning with NETCONF management via IoT Field Network Director
- Conduction cooling with no moving parts
- Optional modular battery backup and power output for third-party radios
Warranty
Warranty
All products sold by XS Network Tech include a 12-month warranty on both new and used items. Our in-house technical team thoroughly tests used hardware prior to sale to ensure enterprise-grade reliability.
All technical data should be verified on the manufacturer data sheets.
View full details
What is the difference between add to cart and request a quote?
Add to Cart lets you purchase in-stock products immediately at listed pricing.
Request a Quote is for customised pricing, volume-based deals, or orders that need a tailored response.
specs-tabs
Collapsible content
Technical Specifications
FAQs
Technical Specifications
- Communication module slots: 4
- Gigabit Ethernet combination ports: 2 (10/100/1000 copper or 100/1000 SFP)
- Fast Ethernet copper ports: 4 (10/100)
- Serial ports: 2 (RS-232/RS-485)
- Wi-Fi: Integrated IEEE 802.11 b/g/n, autonomous
- GPS: Yes
- IRIG-B: BNC connector
- Digital alarm inputs: 2
- Digital alarm outputs: 2
- USB Type A host ports: 2
- Console and AUX port: 1 x RJ-45
- SD flash slot: 1 (2 GB)
- Dimensions (H x W x D): 28.7 x 24.6 x 21.6 cm, without antennas
- Weight, fully configured: 10.4 kg with four communication modules, AC power supply and 8 Ah battery backup unit
- Operating temperature: -40 to +70 C, derated to 50 C if a cellular module is in slot 6
- Power supply: AC, 100-240 VAC
- Typical power consumption: 20-28 W, maximum 75 W
- Power for third-party radios: 12 VDC, 12 W continuous
- Enclosure and mounting: NEMA Type 4, pole or wall mount
- Environmental compliance: IEC 61850-3, IEEE 1613
FAQs
Q: Which licences does the CGR 1240 use?
A: It runs Cisco IOS. Optional paper licences are available: SL-CGR1K-IPB-K9 (IP Base), SL-CGR1K-SEC-K9 (Security) and SL-CGR1K-DATA-K9 (Data).
Q: How is the CGR 1240 powered?
A: It uses an AC power supply (CGR1240-PWR-AC, 85-264 VAC). Typical draw is 20-28 W and maximum is 75 W. Optional 4 Ah battery backup units (CGR-BATT-4AH) can be added, up to three.
Q: Which SFPs and modules work with it?
A: Supported rugged SFPs include GLC-SX-MM-RGD, GLC-LX-SM-RGD, GLC-FE-100LX-RGD, GLC-FE-100FX-RGD, GLC-ZX-SM-RGD and GLC-BX-D/GLC-BX-U. Communication modules include WPAN (CGM-WPAN-OFDM-ANZ for Australia), LTE (CGM-4G-LTE-EA-900, CGM-4G-LTE-EA-AB, CGM-4G-LTE-LA-AB) and compute (CGM-SRV-64, CGM-SRV-128).
Q: How is it mounted?
A: It can be pole mounted or wall mounted. Supported accessories include the CGR-PMK1000 pole mount kit, CGR-PMK-BAND band straps and the CGR-IP67GLAND cable gland. DIN-rail mounting is not supported.
Q: Can it power external radios?
A: Yes. It can supply 12 VDC at 12 W continuous to third-party radios.
