Cisco

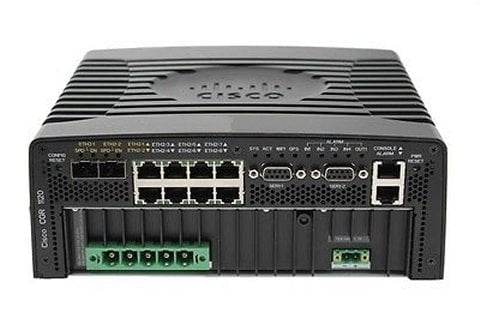

Cisco CGR1120/K9 | CGR 1120 Rugged Router, 2x GE, 6x FE, Wi-Fi, GPS

SKU:CGR1120/K9

Request Quote
Sale Sold out
Shipping calculated at checkout.

Stock Status: Enquire

20-min response

Need a quote or bulk pricing? Answered within 20 minutes, Sydney business hours.

Description

The CGR 1120 is a ruggedised, modular connected grid router for indoor deployments in utility and industrial field area networks. It is suited to substations and secondary distribution sites, and to applications such as Advanced Metering Infrastructure, Distribution Automation and smart city projects like street lighting and smart parking. It runs Cisco IOS with IOx application hosting and mounts on a DIN-rail or wall.

The chassis provides 2 Gigabit Ethernet combo ports (10/100/1000 copper or 100/1000 SFP), 6 Fast Ethernet copper ports and 2 serial ports (RS-232/RS-485). Integrated 802.11 b/g/n Wi-Fi and GPS are built in, and two communication module slots take options such as cellular and 902-928 MHz WPAN mesh. Power is an integrated AC/DC supply accepting 100-240 VAC or 10.6-52 VDC nominal, with a typical draw of 16-23 W. Operating temperature runs from -40 to +60 C, with conduction cooling and no moving parts.

It works with the CGM WPAN modules (CGM-WPAN-OFDM-ANZ for Australia), CGM LTE modules and the CGM-SRV-64 compute module. The Gigabit combo ports accept ruggedised SFPs such as GLC-SX-MM-RGD and GLC-LX-SM-RGD. IOS feature licences for IP Base, Security and Data are ordered separately.

Enquire with XS Network Tech for new or used pricing and availability.

Features

- Runs Cisco IOS Software with Layer 3 services such as FlexVPN
- Cisco IOx for hosting third-party applications at the network edge
- 902-928 MHz IPv6 RF mesh aggregating up to 5000 endpoints with a WPAN module
- SCADA serial-to-IP protocol translation for IEC 60870-5-101/104 and DNP3
- Security with IEEE 802.1x, IPsec, FlexVPN, DMVPN, WPA2, IEEE 802.1AR device identity and RBAC
- Hardware chip storing the X.509 certificate and security credentials, with a tamper-resistant design
- Conduction cooling with no moving parts
- Embedded management via NETCONF and SNMP v1/v2/v3, with secure zero-touch commissioning

Warranty

All products sold by XS Network Tech include a 12-month warranty on both new and used items. Our in-house technical team thoroughly tests used hardware prior to sale to ensure enterprise-grade reliability.

All technical data should be verified on the manufacturer data sheets.

View full details

specs-tabs

Collapsible content

Technical Specifications

FAQs

Technical Specifications

- Gigabit Ethernet combo ports: 2 (10/100/1000 copper or 100/1000 SFP)
- Fast Ethernet copper ports: 6 (10/100)
- Serial ports: 2 (RS-232/RS-485)
- Wi-Fi: IEEE 802.11 b/g/n, autonomous
- GPS: integrated
- Communication/compute module slots: 2
- Digital alarm inputs: 3
- Digital alarm outputs: 1
- USB Type-A host ports: 1
- Console and AUX port: 1 x RJ-45
- SD flash slot: 1 (2 GB)
- Power supply: integrated AC/DC, 100-240 VAC or 10.6-52 VDC nominal (9-60 VDC maximum)
- Typical power consumption: 16-23 W
- Maximum power consumption: 40 W
- Operating temperature: -40 to +60 C (-40 to 140 F)
- Dimensions (H x W x D): 8.9 x 22.9 x 20 cm (3.5 x 9.0 x 7.8 in)
- Rack height: 2 RU
- Typical weight fully configured: 3.6 kg (8 lbs)
- Mounting: DIN-rail or wall
- Environmental compliance: IEC 61850-3, IEEE 1613

FAQs

Q: Which licences does the CGR 1120 use?
A: Cisco IOS feature licences are ordered separately: SL-CGR1K-IPB-K9 for IP Base, SL-CGR1K-SEC-K9 for Security and SL-CGR1K-DATA-K9 for Data.

Q: What power input does it accept?
A: It has an integrated AC/DC power supply accepting 100-240 VAC or 10.6-52 VDC nominal (9-60 VDC maximum). Typical draw is 16-23 W and maximum is 40 W.

Q: Which communication modules fit the two slots?
A: The WPAN modules (CGM-WPAN-FSK-NA, CGM-WPAN-OFDM-FCC, CGM-WPAN-OFDM-ANZ for Australia, CGM-WPAN-OFDM-BRZ), the LTE modules (CGM-4G-LTE-EA-900, CGM-4G-LTE-EA-AB, CGM-4G-LTE-LA-AB) and the CGM-SRV-64 compute module.

Q: Which SFPs work in the Gigabit combo ports?
A: The combo ports support GLC-SX-MM-RGD, GLC-LX-SM-RGD, GLC-FE-100LX-RGD, GLC-FE-100FX-RGD, GLC-ZX-SM-RGD, GLC-BX-D and GLC-BX-U.

Q: How is the CGR 1120 mounted and managed?
A: It mounts on a DIN-rail using the CGR1120-DINRAIL kit, or on a wall. It is managed with Cisco IoT Field Network Director and supports NETCONF and SNMP.
