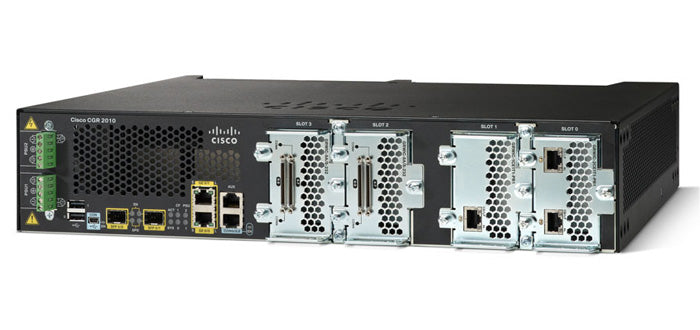

Cisco CGR-2010-SEC/K9 | CGR 2010 Industrial Router, 2x 1G, 4x GRWIC, SEC
SKU:CGR-2010-SEC/K9
Stock Status: Enquire
Need a quote or bulk pricing? Answered within 20 minutes, Sydney business hours.
Description
Description
The Cisco CGR 2010 is a rugged, fanless utility-grade router from the Cisco 2000 Series Connected Grid Routers, built on the ISR G2 platform. It is hardened for substation use to IEC 61850-3 and IEEE 1613, and is aimed at transmission and distribution substation automation, SCADA communications, renewable generation, oil and gas, water and trackside networks that need NERC/CIP security.
There are two combo Gigabit Ethernet WAN ports (RJ-45 copper or SFP fibre) and four GRWIC module slots, two of which are double-wide capable. Memory is 1 GB DDR2 ECC DRAM with 256 MB of rugged compact flash and a second flash slot for expansion. Hardware crypto acceleration handles IPSec and SSL, and the chassis runs from -40 to +60 C continuous with no fans. The CGR 2010-SEC/K9 is the security bundle: it includes the Security (SEC) licence PAK, where the base CGR 2010/K9 ships with IP Base only. A single Cisco IOS Universal image is used, with technology packages activated by licence.
The chassis takes up to two hot-swap, load-sharing power supplies, PWR-RGD-AC-DC or PWR-RGD-LOW-DC. Supported GRWIC modules include T1/E1, serial RS-232, DSL, ISDN, 4G LTE and EtherSwitch options, and industrial SFPs such as GLC-SX-MM-RGD, GLC-LX-SM-RGD and GLC-ZX-SM-RGD.
Enquire with XS Network Tech for new or used pricing and availability.
Features
Features
- Rugged fanless design with no moving parts and an extended temperature range
- IEC 61850-3 and IEEE 1613 substation compliance
- Integrated security for NERC/CIP: firewall, zone-based firewall, IPS, IPSec, DMVPN, GET VPN, AAA and PKI
- Modular GRWIC architecture for T1/E1, serial, DSL, ISDN, 4G LTE and EtherSwitch modules
- Dual hot-swappable load-sharing power supply support
- Hot-standby capability in dual-router designs, with PfR and BFD for high availability
- Advanced QoS for SCADA and mission-critical traffic
- Front or reverse cabling and rack mounting options
Warranty
Warranty
All products sold by XS Network Tech include a 12-month warranty on both new and used items. Our in-house technical team thoroughly tests used hardware prior to sale to ensure enterprise-grade reliability.
All technical data should be verified on the manufacturer data sheets.
View full details
What is the difference between add to cart and request a quote?
Add to Cart lets you purchase in-stock products immediately at listed pricing.
Request a Quote is for customised pricing, volume-based deals, or orders that need a tailored response.
specs-tabs
Collapsible content
Technical Specifications
FAQs
Technical Specifications
- WAN ports: 2 x combo Gigabit Ethernet (RJ-45 or SFP)
- GRWIC slots: 4 (2 double-wide capable)
- Memory: 1 GB DDR2 ECC DRAM
- Flash: 256 MB rugged compact flash (slot 0), second slot for expansion
- USB: 2 x USB 2.0 Type A
- Console: USB Type B (up to 115.2 kbps), serial console and serial aux
- Cryptography: hardware acceleration for IPSec and SSL
- Substation compliance: IEC 61850-3, IEEE 1613
- AC input: nominal 100-240 VAC, operating 85-264 VAC (also accepts 88-300 VDC)
- DC input: nominal 24-60 VDC, operating 20-75 VDC
- System power consumption (no modules): 30 W
- GRWIC power consumption: typical 4.5 W, maximum 6 W
- Dimensions (H x W x D): 88.9 x 438.2 x 381 mm (3.5 x 17.25 x 15 in)
- Rack height: 2 RU, 19 in EIA rack mount, wall mount capable
- Weight: 8.6 kg with one power supply and no modules
- Cooling: convection and conduction, no fans
- Operating temperature: -40 to +60 C continuous
- Operating shock: 30G at 11 ms
- Operating altitude: 3,048 m (10,000 ft), with temperature derating
- Relative humidity: 5 to 95% non-condensing
- Safety: UL 60950-1, CAN/CSA C22.2 No. 60950-1, EN 60950-1, AS/NZS 60950-1, IEC 60950-1
- EMC: FCC Part 15 / ICES-003 Class A, EN55022 Class A, AS/NZS 3548 Class A, VCCI
FAQs
Q: What does the SEC licence add compared with the CGR 2010/K9?
A: The CGR 2010-SEC/K9 is the security bundle and includes the Security (SEC) licence PAK. The base CGR 2010/K9 ships with IP Base only.
Q: Which software does it run?
A: A single Cisco IOS Universal image is used, with technology packages activated by licence. IP Base is the default, and Data and Security licences are optional. Cisco IOS 15.1T or higher is supported.
Q: What power supplies does the chassis use?
A: It takes up to two hot-swap load-sharing supplies. PWR-RGD-AC-DC covers 85-264 VAC or 88-300 VDC, and PWR-RGD-LOW-DC covers 24-60 VDC. A single supply can run a fully configured router.
Q: Which modules and optics does it work with?
A: Supported GRWIC modules include GRWIC-1CE1T1-PRI, GRWIC-2CE1T1-PRI, GRWIC-8A/S-232, GRWIC-2SHDSL, GRWIC-D-ES-2S-8PC, GRWIC-D-ES-6S, GRWIC-4G-LTE-A/G/V and GRWIC-4T. Industrial SFPs such as GLC-SX-MM-RGD and GLC-LX-SM-RGD fit the combo ports.
Q: Is it suitable for outdoor or substation environments?
A: It is hardened for substation use to IEC 61850-3 and IEEE 1613, with fanless cooling and continuous operation from -40 to +60 C.
