Cisco CG113-4GW6Z | Catalyst CG113 Wireless Gateway, Wi-Fi 6, 4G LTE, Domain Z
SKU:CG113-4GW6Z
Stock Status: Enquire
Need a quote or bulk pricing? Answered within 20 minutes, Sydney business hours.
Description
Description

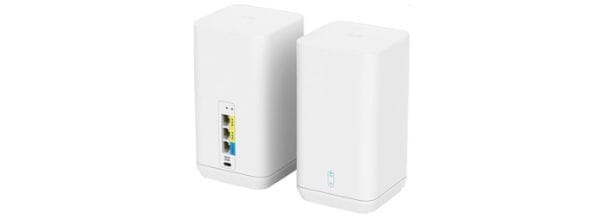

The Catalyst CG113 is a compact, fanless remote-worker gateway built for hybrid and teleworker deployments. It brings an office-like network experience into the home, with secure access to corporate and cloud applications and 4G LTE cellular backup for business continuity. It runs Cisco IOS CG and is provisioned and managed centrally through Cisco Catalyst SD-WAN Manager.
This SKU combines Wi-Fi 6 (802.11ax, 2x2 MIMO with MU-MIMO) and 4G LTE in the Wi-Fi regulatory domain Z variant. It provides one 2.5GbE RJ-45 WAN/LAN mGig port and two Gigabit Ethernet RJ-45 LAN ports, plus two nano SIM slots in an active/standby arrangement. Memory is 2 GB DDR4 ECC DRAM with 1 GB NAND flash. Power is supplied over USB Type-C at 9V or 12V and 3A, and passive cooling keeps the unit silent on a desk.
It is managed by Cisco Catalyst SD-WAN Manager 20.9.1.1 and later and runs Cisco IOS CG 17.9.1a and later. It can be deployed through an IPsec tunnel to an enterprise headend or via SD-WAN Remote Access to a branch or headend router.
Enquire with XS Network Tech for new or used pricing and availability.
Features
Features
- Compact, noiseless home and desk form factor, powered via USB-C
- 802.11ax Wi-Fi with MU-MIMO, extending the corporate SSID to the home with no VPN needed
- QoS to prioritise corporate traffic over non-corporate traffic in home offices
- Automatic WAN failover from wired to 4G LTE cellular (active-standby)
- On-box IPsec/AES data privacy, ACL policy and SHA2-based cryptography
- Zero-touch provisioning and central configuration of the corporate SSID and 4G LTE via SD-WAN Manager
- Local Web User Interface for end users (release 17.10 and above)
- Deployable via IPsec tunnel to an enterprise headend, or via SD-WAN Remote Access to a branch or headend router
Warranty
Warranty
All products sold by XS Network Tech include a 12-month warranty on both new and used items. Our in-house technical team thoroughly tests used hardware prior to sale to ensure enterprise-grade reliability.
All technical data should be verified on the manufacturer data sheets.
View full details
What is the difference between add to cart and request a quote?
Add to Cart lets you purchase in-stock products immediately at listed pricing.
Request a Quote is for customised pricing, volume-based deals, or orders that need a tailored response.
specs-tabs
Collapsible content
Technical Specifications
FAQs
Technical Specifications
- Series: Cisco Catalyst Wireless Gateway CG113 (CG110 family)
- Variant: 4G LTE, Wi-Fi 6, Wi-Fi regulatory domain Z
- 2.5GbE ports: 1 x RJ-45 WAN/LAN mGig port
- Gigabit Ethernet ports: 2 x RJ-45 LAN ports with switch expansion capability
- Wi-Fi: 802.11ax (Wi-Fi 6) with MU-MIMO, 2x2 MIMO
- Wi-Fi antennas: 2 internal
- Cellular: 4G LTE with 2 internal WWAN antennas
- SIM slots: 2 x nano SIM (active/standby)
- Memory: 2 GB onboard DDR4 ECC DRAM
- Flash: 1 GB NAND
- Power input: USB Type-C, 9V and 12V at 3A
- AC input (external power supply): 100 to 240 VAC, 50 to 60 Hz
- Cooling: passive, fanless and ventless
- Operating temperature: 0 to 45 C (32 to 113 F)
- Dimensions: 7.6 x 7.6 x 18.0 cm (3.8 x 3.8 x 7.1 in) maximum
- Weight: less than 1.4 kg (3 lb)
- EMI compliance: Class B
- Operating system: Cisco IOS CG Release 17.9.1a and later
- Controller: Cisco Catalyst SD-WAN Manager 20.9.1.1 and later
- LTE bands (EMEAR, Asia, ASEAN): B1, B3, B7, B8, B20, B28, B32, B38, B40, B41, B42, B43
FAQs
Q: Does the CG113-4GW6Z need a licence?
A: Yes. It requires a Cisco DNA Remote-worker gateway licence, available as On-Prem (DNA-P-RW-3Y/5Y/7Y) or Cloud (DNA-C-RW-3Y/5Y/7Y). Cisco Catalyst SD-WAN Remote Access is licensed separately.
Q: How is the CG113-4GW6Z powered?
A: It is powered over a USB Type-C input at 9V or 12V and 3A, using the external region-specific power supply (CG113-4G-PWR-US, -EU or -AU). It does not use PoE.
Q: What does the Z in the part number mean?
A: Z is the Wi-Fi regulatory domain code. The CG113-4GW6x family is offered in domains A, B, E, H and Z, so the Wi-Fi settings follow the domain of the SKU.
Q: What manages and provisions the gateway?
A: It is managed centrally by Cisco Catalyst SD-WAN Manager 20.9.1.1 or later and runs Cisco IOS CG 17.9.1a or later. Zero-touch provisioning pushes the corporate SSID and 4G LTE configuration to the device.
Q: How does the 4G LTE backup work?
A: The gateway uses two nano SIM slots in an active/standby arrangement and fails over automatically from the wired WAN to the cellular connection if the primary link drops.
