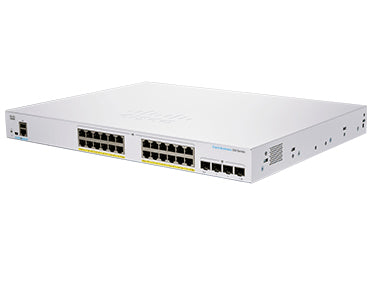

Cisco CBS350-24P-4X-AU | 24x GE PoE+ (195W), 4x 10G SFP+ uplinks, no-license L2/L3

Cisco CBS350-24P-4X-AU | 24x GE PoE+ (195W), 4x 10G SFP+ uplinks, no-license L2/L3

SKU:CBS350-24P-4X-AU

Regular price $0.00 AUD
Regular price
$0.00 AUD
$0.00 AUD
Regular price
Sale Sold out
Shipping calculated at checkout.

Description

Enterprise-grade SMB switch with 24 Gigabit PoE+ access ports and 4x 10G SFP+ uplinks for high-speed aggregation. Offers L2/L3 static routing, robust security, and intuitive web/CLI management for converged voice, video, and data networks.

Features

- Power endpoints with PoE+ (195W) for phones, cameras, and APs
- 4x 10G SFP+ uplinks deliver high-speed aggregation and future growth
- Built-in L3 static routing simplifies inter-VLAN traffic without a router
- Advanced security controls protect access edges and segments
- Easy deployment and monitoring via intuitive web UI and CLI/SSH

Warranty

All products sold by XS Network Tech include a 12-month warranty on both new and used items. Our in-house technical team thoroughly tests used hardware prior to sale to ensure enterprise-grade reliability.

All technical data should be verified on the manufacturer data sheets.

View full details
  • You may also like
  • Best sellers
  • Similar products

specs-tabs

Collapsible content

FAQs

Technical Specifications

FAQs

Q: Does this switch require any licenses or subscriptions?
A: No. L2/L3 features are included—no ongoing licenses required.

Q: What is the PoE capability per port?
A: Supports IEEE 802.3af/at PoE+ up to 30W per port, with a total PoE budget of 195W.

Q: Are the SFP+ uplink ports compatible with 1G SFP modules?
A: Yes. The SFP+ uplinks support both 10G SFP+ and 1G SFP optics (auto downshift).

Q: Can it route between VLANs?
A: Yes. It supports IPv4/IPv6 static routing for inter-VLAN routing.

Q: Which transceivers are supported on the uplinks?
A: Standards-based 10G SFP+ (SR/LR/BX/DAC/AOC) and 1G SFP (SX/LX/BX/RJ45) per compatibility guidelines.

Q: Is a rack-mount kit included?
A: Yes. Rack ears are included for 19-inch rack installation.

Technical Specifications

- Ports: 24x 10/100/1000BASE-T with 802.3af/at PoE+ (up to 30W/port), total PoE budget 195W
- Uplinks: 4x 10G SFP+ (supports 10G SFP+ and 1G SFP downshift)
- Switching capacity: 128 Gbps non-blocking fabric
- Layer 3: IPv4/IPv6 static routing, inter-VLAN routing, DHCP server/relay
- Layer 2: 802.1Q VLANs (up to 4094), STP/RSTP/MSTP, LACP (802.3ad), IGMP snooping v1/v2/v3
- Security: 802.1X, MAC Authentication Bypass, Port Security, DHCP Snooping, IP Source Guard, Dynamic ARP Inspection, IPv4/IPv6 ACLs
- QoS: 8 hardware queues, DSCP/CoS classification, WRR/Strict scheduling, rate limiting
- Management: Web UI, CLI/SSH, SNMP v1/v2c/v3, RMON, syslog, port mirroring (SPAN/RSPAN)
- Jumbo frames: up to 9K
- Form factor: 1U rack-mount; rack ears included
- Operating temperature: 0 to 45°C
- Power: Internal AC power supply
