Cisco CBS250-24FP-4G | 24x 1G PoE+ | class 802.3af/at (370W) | uplinks: 4x 1G SFP | smart managed L2+/L3-lite

Cisco CBS250-24FP-4G | 24x 1G PoE+ | class 802.3af/at (370W) | uplinks: 4x 1G SFP | smart managed L2+/L3-lite

SKU:CBS250-24FP-4G

Regular price $0.00 AUD
Regular price
$0.00 AUD
$0.00 AUD
Regular price
Sale Sold out
Shipping calculated at checkout.

Description

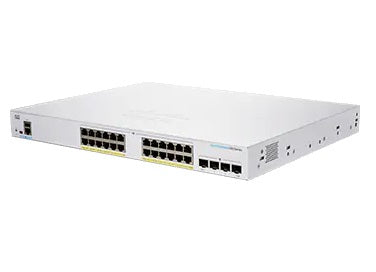

High-capacity 24-port gigabit smart switch with 370W PoE+ for dense AP, phone, and camera deployments, plus 4x dedicated 1G SFP uplinks. Non-blocking 56 Gbps switching with L2+ features, IPv4/IPv6 static routing, advanced QoS, and comprehensive access security for converged SMB edge networks.

Features

- High 370W PoE+ budget powers dense AP/phone/camera deployments
- 4x dedicated 1G SFP uplinks for fiber aggregation and uplink redundancy
- Smart-managed L2+/L3-lite with static routing for simplified segmentation
- Advanced QoS and Auto Voice VLAN ensure excellent UC and video quality
- Strong access security: 802.1X, ACLs, DHCP Snooping, IP Source Guard
- Energy-efficient design with IEEE 802.3az and intelligent cooling

Warranty

All products sold by XS Network Tech include a 12-month warranty on both new and used items. Our in-house technical team thoroughly tests used hardware prior to sale to ensure enterprise-grade reliability.

All technical data should be verified on the manufacturer data sheets.

View full details
  • You may also like
  • Best sellers
  • Similar products

specs-tabs

Collapsible content

Technical Specifications

Technical Specifications

- Access ports: 24x 10/100/1000 RJ-45 with PoE+
- PoE standard: IEEE 802.3af/at (PoE+), up to 30W per port
- Total PoE budget: 370W
- Uplinks: 4x 1G SFP (dedicated)
- Switching capacity: 56 Gbps
- Forwarding rate: 41.67 Mpps
- Management: Web GUI, SNMP v1/v2c/v3, RMON, Syslog, Cisco FindIT
- Layer 2: 802.1Q VLANs (up to 4094 IDs), Voice VLAN, Private VLAN, Port isolation
- Layer 3 Lite: IPv4/IPv6 static routing, Inter-VLAN routing
- Spanning Tree: STP/RSTP/MSTP; Loop prevention and storm control
- Multicast: IGMP snooping v1/v2/v3, MLD snooping
- QoS: 8 hardware queues, CoS/DSCP marking, rate limiting, WRR/SP scheduling
- Security: 802.1X, MAC/Auth-based ACLs, DHCP Snooping, IP Source Guard
- Jumbo frames: up to 9K bytes
- Energy Efficient Ethernet (IEEE 802.3az)
- Cooling: Smart fan (designed for quiet operation)
- Mounting: 19-inch rack (rack ears included)
- Operating temperature: 0°C to 45°C
- Physical stacking: Not supported
