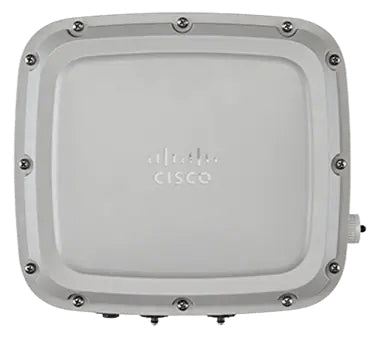

Cisco C9124AXI-Z | Catalyst 9124AXI Wi-Fi 6 Outdoor AP, Internal Antenna, -Z

SKU:C9124AXI-Z

$3,629.64 inc. GST
$3,299.67 ex. GST
Sale Sold out
Shipping calculated at checkout.

Stock Status: Enquire

20-min response

Need a quote or bulk pricing? Answered within 20 minutes, Sydney business hours.

Description

The Catalyst 9124AXI is a ruggedised Wi-Fi 6 (802.11ax) outdoor access point with an internal omnidirectional antenna, built for service providers and enterprises that need high-performance outdoor coverage. It suits high-density outdoor areas, mobile clients such as smartphones, tablets and laptops, wireless backhaul, and IoT or location services using the integrated BLE 5 radio. This SKU is the -Z regulatory domain variant.

The access point runs 4x4:4 radios on both 2.4 GHz and 5 GHz with uplink and downlink MU-MIMO and four spatial streams, with 802.11ax PHY data rates up to 5.38 Gbps. Wired connectivity comprises a 100/1000/2500 BASE-T multigigabit uplink and a Gigabit Ethernet SFP port. The internal antenna provides 7 dBi peak gain on both bands, and the IP66/IP67 enclosure is rated for operation from -40 to 65 C. Licensing is managed under Cisco DNA Software for Wireless.

Power can come from 802.3af, 802.3at or 802.3bt PoE, Cisco UPOE, a Cisco power injector or auxiliary DC input of 24 to 56 V. Full 4x4 operation with the 2.5G uplink, SFP port and PoE output requires 802.3bt, UPOE or DC power. The access point is supported with Cisco Catalyst 9800 Series Wireless Controllers.

Enquire with XS Network Tech for new or used pricing and availability.

Features

- Wi-Fi 6 with uplink and downlink OFDMA and MU-MIMO for improved performance in dense environments
- BSS colouring for spatial reuse and more simultaneous transmissions
- Target Wake Time (TWT) power saving for battery-operated clients
- Cisco RF ASIC software-defined radio for CleanAir spectrum analysis, wIPS, FastLocate and DFS
- Integrated BLE 5 radio for asset tracking, wayfinding and analytics
- Multigigabit uplink supported over Category 5e cabling
- Cisco Trust Anchor technologies including image signing and Secure Boot
- Supports Cisco DNA Software, Cisco Spaces, Cisco ISE and SD-Access

Warranty

All products sold by XS Network Tech include a 12-month warranty on both new and used items. Our in-house technical team thoroughly tests used hardware prior to sale to ensure enterprise-grade reliability.

All technical data should be verified on the manufacturer data sheets.

View full details

specs-tabs

Collapsible content

Technical Specifications

FAQs

Datasheet

Technical Specifications

- Model: C9124AXI, internal omnidirectional antenna
- Regulatory domain: -Z
- Wi-Fi standard: 802.11ax (Wi-Fi 6), backward compatible with 802.11a/b/g/n/ac
- Radios: 4x4:4 in both 2.4 GHz and 5 GHz with uplink and downlink MU-MIMO, four spatial streams
- Channel widths: 20, 40, 80 and 80+80 MHz (160 MHz at 5 GHz)
- 802.11ax PHY data rate: up to 5.38 Gbps
- 802.11ac PHY data rate: up to 3.47 Gbps
- 802.11n PHY data rate: up to 890 Mbps
- Uplink: 1 x 100/1000/2500 BASE-T multigigabit
- Fibre port: 1 x Gigabit Ethernet SFP
- Console: RJ-45 management console port
- Bluetooth: integrated BLE 5 radio, 5 dBi internal antenna
- Internal antenna gain: 7 dBi peak on 2.4 GHz and 5 GHz, omnidirectional, vertical polarisation
- Max Tx power: 30 dBm (1 W) on 2.4 GHz and 5 GHz
- Security: WPA3, WPA3-Enterprise 192, 802.11i, 802.1X/AES/TKIP
- Power input: 802.3af/at/bt PoE, Cisco UPOE, or auxiliary DC 24 to 56 V
- PoE output: 802.3af on the 10/100/1000 BASE-T downlink when powered by UPOE, 802.3bt or DC
- Dimensions (W x L x H, without brackets): 25.9 x 23.3 x 8.1 cm
- Weight: 2.9 kg
- Operating temperature: -40 to 65 C (-40 to 55 C with solar loading)
- Ingress protection: IP66/IP67
- Wind resistance: up to 161 km/h sustained, 266 km/h gusts
- Minimum software: Cisco IOS XE 17.6.2 or later for all regulatory domains

FAQs

Q: Which controllers does the C9124AXI-Z work with?
A: It is supported with Cisco Catalyst 9800 Series Wireless Controllers. All regulatory domains require Cisco IOS XE 17.6.2 or later.

Q: How does the C9124AXI-Z need to be powered for full performance?
A: Full 4x4 operation with the 2.5G uplink, SFP port and PoE output requires 802.3bt PoE, Cisco UPOE or auxiliary DC input. 802.3at gives reduced 2x2 operation, and 802.3af disables the radios.

Q: Which power injectors are supported?
A: The Cisco power injectors AIR-PWRINJ-60RGD1=, AIR-PWRINJ-60RGD2= and AIR-PWRINJ6= (802.3at only) are supported.

Q: How is the access point licensed?
A: It is managed under Cisco DNA Software for Wireless subscription licensing. Licences can be managed through a Smart Account using Cisco Smart Software Manager.

Q: What does the -Z suffix mean?
A: The -Z suffix identifies the regulatory domain variant of the C9124AXI. Check that this domain suits your country of deployment before ordering.

Q: Can it supply PoE to another device?
A: Yes. When powered by UPOE, 802.3bt or DC input from a supply rated 60 W or more, it provides 802.3af PoE output on its 10/100/1000 BASE-T downlink port.
