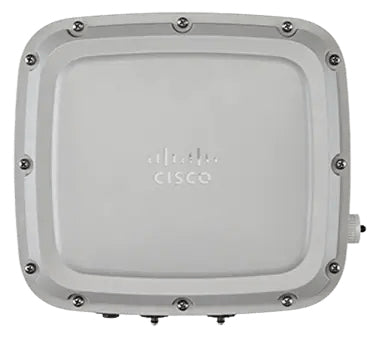

• Cisco C9124AXD-Z Wi-Fi 6 outdoor AP with white-gray design
1 1

Cisco

Cisco C9124AXD-Z | Catalyst 9124AXD Wi-Fi 6 Outdoor Access Point, 9 dBi, -Z

C9124AXD-Z

$3,955.45 inc. GST
$3,595.86 ex. GST
Sale Sold out
Shipping calculated at checkout.

Stock Status: Enquire

20-min response

Need a quote or bulk pricing? Answered within 20 minutes, Sydney business hours.

Description

The Catalyst 9124AXD is a rugged Wi-Fi 6 (802.11ax) outdoor access point from the Catalyst 9124AX Series, built with integrated directional antennas for service provider and enterprise deployments. This -Z regulatory domain model is controller-based and managed by Cisco Catalyst 9800 Series wireless controllers. The directional pattern suits focused-sector coverage such as car parks, stadium areas, campus walkways and industrial sites.

It runs 4x4:4 uplink and downlink MU-MIMO with four spatial streams on both 2.4 GHz and 5 GHz, with PHY data rates up to 5.38 Gbps using 160 MHz channels on 5 GHz. The integrated dual-polarised antennas deliver 9 dBi peak gain on both bands, and maximum transmit power is 30 dBm. Uplink is via 1x 100/1000/2500 BASE-T multigigabit port, with an additional Gigabit Ethernet SFP port. An integrated Bluetooth 5 radio supports asset tracking and location services. The unit is rated IP66/IP67 and operates from -40 to 65 C without solar loading.

Power options include 802.3af/at/bt PoE, Cisco UPOE or a 24-56 V DC auxiliary input. Full 4x4 radio operation, the 2.5G uplink, the SFP port and PoE output require 802.3bt, UPOE or DC power. Compatible power injectors are AIR-PWRINJ-60RGD1=, AIR-PWRINJ-60RGD2= and AIR-PWRINJ6= (802.3at only). Licensing follows the Cisco DNA Software for Wireless subscription model, managed through Cisco Smart Accounts.

Enquire with XS Network Tech for new or used pricing and availability.

Features

- Wi-Fi 6 (802.11ax) with uplink and downlink OFDMA for lower latency and overhead
- Uplink and downlink MU-MIMO with four spatial streams
- BSS colouring (spatial reuse) allows more simultaneous transmissions
- Target Wake Time (TWT) improves battery life on client devices
- Cisco RF ASIC supporting CleanAir, wIPS, FastLocate and DFS
- Integrated Bluetooth 5 for asset tracking, wayfinding and analytics
- Cisco Trust Anchor technologies including image signing and secure boot
- Supports Cisco SD-Access, Cisco Spaces, Cisco ISE and Cisco DNA Analytics and Assurance

Warranty

All products sold by XS Network Tech include a 12-month warranty on both new and used items. Our in-house technical team thoroughly tests used hardware prior to sale to ensure enterprise-grade reliability.

All technical data should be verified on the manufacturer data sheets.

View full details

specs-tabs

Technical Specifications

FAQs

Datasheet

Technical Specifications

- Wireless standards: IEEE 802.11a/b/g/n/ac/ax
- Radio configuration: 4x4:4 on both 2.4 GHz and 5 GHz, uplink/downlink MU-MIMO with four spatial streams
- Channel widths: 20, 40, 80 and 80+80 MHz (160 MHz on 5 GHz)
- Maximum PHY data rate: up to 5.38 Gbps
- Integrated antenna 2.4 GHz: 9 dBi peak gain, dual polarisation, directional, 70 degree azimuth and 65 degree elevation beamwidth
- Integrated antenna 5 GHz: 9 dBi peak gain, dual polarisation, directional, 55 degree azimuth and 50 degree elevation beamwidth
- Bluetooth: integrated Bluetooth 5 (BLE) radio, 4 dBi internal antenna
- Uplink: 1x 100/1000/2500 BASE-T multigigabit Ethernet
- Additional interface: 1x Gigabit Ethernet SFP
- Console: RJ-45 management console port
- PoE output: 802.3af PSE on the downlink port when powered by UPOE, 802.3bt or DC input
- Input power: 802.3af/at/bt PoE, Cisco UPOE, or 24-56 V DC auxiliary input
- Maximum transmit power: 30 dBm (1 W) on 2.4 GHz and 5 GHz
- Dimensions (W x L x H, without brackets): 25.9 x 23.3 x 8.1 cm
- Weight: 2.9 kg
- Operating temperature: -40 to 65 C without solar loading, -40 to 55 C with solar loading
- Ingress protection: IP66/IP67
- Wind resistance: 161 km/h sustained, 266 km/h gusts
- Security: 802.11i, WPA, WPA2, WPA3, WPA3-Enterprise 192, 802.1X

FAQs

Q: What power source does it need for full 4x4 operation?
A: Full 4x4 radio operation, the 2.5G uplink, the SFP port and PoE output require 802.3bt, Cisco UPOE or DC power. On 802.3at it runs 2x2 on both radios, and on 802.3af the radios are disabled.

Q: Which controllers manage this access point?
A: It is managed by Cisco Catalyst 9800 Series Wireless Controllers. It requires Cisco IOS XE 17.6.2 or later for all regulatory domains.

Q: Which power injectors are compatible?
A: AIR-PWRINJ-60RGD1=, AIR-PWRINJ-60RGD2= and AIR-PWRINJ6= (802.3at only) are the supported power injectors.

Q: How is this access point licensed?
A: It works with the Cisco DNA Software for Wireless subscription, with licences managed through Cisco Smart Accounts and Smart Software Manager.

Q: How does the C9124AXD-Z differ from other C9124AX variants?
A: This model has integrated 9 dBi directional antennas, is controller-based, and is configured for the -Z regulatory domain. Variants with different antenna types or regulatory domains are separate SKUs.

Datasheet

This product has a detailed PDF datasheet available. Open PDF datasheet in a new tab .
