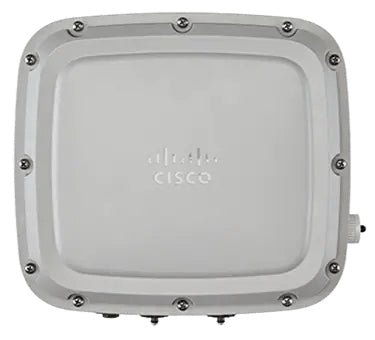

• Cisco C9124AXD-EWC-ROW Wi-Fi 6 outdoor AP with white-gray design
1 1

Cisco

Cisco C9124AXD-EWC-ROW | Catalyst 9124AX Wi-Fi 6 Outdoor AP, Directional, EWC, ROW

C9124AXD-EWC-ROW

Stock Status: Enquire

$3,770.72 inc. GST
$3,427.93 ex. GST
Sale Sold out
Shipping calculated at checkout.
20-min response

Need a quote or bulk pricing? Answered within 20 minutes, Sydney business hours.

Description

This Catalyst 9124AX Series outdoor access point delivers Wi-Fi 6 (802.11ax) with dual-band 2.4 GHz and 5 GHz 4x4:4 MU-MIMO and speeds of up to 5.38 Gbps. It features an internal directional antenna, making it suited to focused outdoor coverage for enterprise and service provider deployments. The Embedded Wireless Controller (EWC) runs on the access point itself, allowing small deployments to operate without a separate controller. This SKU is configured for the Rest of World (ROW) regulatory domain.

Enquire with XS Network Tech for new or used pricing and availability.

Features

- Uplink and downlink MU-MIMO with four spatial streams
- Cisco CleanAir RF spectrum analysis
- Wireless Intrusion Prevention System (wIPS), FastLocate and Dynamic Frequency Selection (DFS)
- Integrated BLE 5 radio for asset tracking, wayfinding and analytics
- Cisco Trust Anchor Technologies for hardware and software authenticity
- Embedded Wireless Controller on the access point, with no separate controller needed for small deployments
- Rugged design for service provider and enterprise outdoor deployments
- Also managed by Cisco Catalyst 9800 Series Wireless Controllers

Warranty

All products sold by XS Network Tech include a 12-month warranty on both new and used items. Our in-house technical team thoroughly tests used hardware prior to sale to ensure enterprise-grade reliability.

All technical data should be verified on the manufacturer data sheets.

View full details

specs-tabs

Technical Specifications

FAQs

Datasheet

Technical Specifications

- 802.11ax (Wi-Fi 6) outdoor access point
- Dual-band 2.4 GHz and 5 GHz, 4x4:4 MU-MIMO with four spatial streams on both bands
- Internal directional antenna
- Up to 5.38 Gbps maximum wireless data rate
- 802.11ac PHY data rates up to 3.47 Gbps (160 MHz in 5 GHz)
- 802.11n PHY data rates up to 890 Mbps
- Maximum transmit power 30 dBm (1W) in both 2.4 GHz and 5 GHz
- Integrated Bluetooth 5 (BLE) radio
- 2 x RJ-45 network ports, including PoE powered device port and management port
- Embedded Wireless Controller (EWC) onboard, requires IOS XE 17.6.2 or later
- Encryption: WPA, WPA2, WPA3, AES, TKIP
- ROW regulatory domain

FAQs

Q: What does EWC mean in this model?
A: EWC stands for Embedded Wireless Controller. The controller function runs on the access point itself, so small deployments do not need a separate wireless controller. It requires IOS XE 17.6.2 or later.

Q: Does this access point use an internal or external antenna?
A: The D model has an internal directional antenna, which focuses coverage in a particular direction rather than providing omnidirectional coverage.

Q: Which regulatory domain does the ROW suffix cover?
A: ROW means Rest of World regulatory domain. Confirm that this domain is permitted for use in your country and region before deployment.

Q: Can it be managed by a Catalyst 9800 Series controller instead of using EWC?
A: Yes. The Catalyst 9124AX family can also be managed by Cisco Catalyst 9800 Series Wireless Controllers.

Q: What wireless speeds and radio configuration does it support?
A: It supports dual-band 2.4 GHz and 5 GHz operation with 4x4:4 MU-MIMO and four spatial streams on both bands, for a maximum wireless data rate of up to 5.38 Gbps.

Datasheet

This product has a detailed PDF datasheet available. Open PDF datasheet in a new tab .
