Cisco C9115AXI-Z | Catalyst 9115AXI Wi-Fi 6 Access Point, -Z Domain, 2.5G

Name: Cisco C9115AXI-Z | Catalyst 9115AXI Wi-Fi 6 Access Point, -Z Domain, 2.5G
Brand: Cisco
SKU: C9115AXI-Z
Price: 1469.25 AUD
Availability: InStock

SKU:C9115AXI-Z

63 in stock

$1,469.25 inc. GST

$1,335.68 ex. GST

Sale Sold out

Shipping calculated at checkout.

Quantity

20-min response

Need a quote or bulk pricing? Answered within 20 minutes, Sydney business hours.

Description

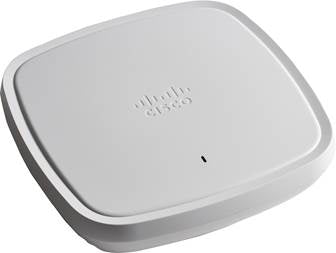

The Catalyst 9115AXI is an enterprise-class indoor Wi-Fi 6 (802.11ax) access point with 4x4 dual-band radios, internal antennas and a 2.5G multigigabit RJ45 uplink powered by 802.3at PoE+. This -Z regulatory domain variant runs without the embedded wireless controller, making it suited to deployments managed through an external controller or Cisco DNA Center. It supports OFDMA, MU-MIMO and channel widths up to 160 MHz for high-density office and campus environments.

Enquire with XS Network Tech for new or used pricing and availability.

Features

- Uplink and downlink OFDMA
- MU-MIMO
- BSS colouring for spatial reuse
- Target Wake Time (TWT) power saving for clients
- 2.5 Gbps multigigabit uplink, also supports 100 Mbps and 1 Gbps, runs over Cat 5e cabling
- USB interface for containerised applications and hardware modules
- Bluetooth Low Energy radio
- Managed with Cisco DNA Center
- Internal antennas for discreet ceiling or wall installation

Warranty

All products sold by XS Network Tech include a 12-month warranty on both new and used items. Our in-house technical team thoroughly tests used hardware prior to sale to ensure enterprise-grade reliability.

All technical data should be verified on the manufacturer data sheets.

View full details

specs-tabs

Technical Specifications

FAQs

Datasheet

Technical Specifications

- Wi-Fi 6 (802.11ax) dual-band access point
- Radios: 2.4 GHz (4x4), 5 GHz (4x4) and Bluetooth Low Energy
- 4x4 downlink MU-MIMO with four spatial streams
- Channel widths: 20, 40, 80 and 160 MHz
- Four internal dual-band antennas (AXI model)
- Internal antenna peak gain: 3 dBi (2.4 GHz), 4 dBi (5 GHz)
- 1 x 100/1000/2500 Multigigabit Ethernet (RJ45), IEEE 802.3bz
- RJ45 RS-232 console port
- USB 2.0 port
- Recovery push button
- Power: 802.3at PoE+
- Dimensions (without brackets): 20.3 x 20.3 x 3.8 cm
- Plenum rated (UL-2043)
- Regulatory domain: -Z

FAQs

Q: What does the -Z suffix on the C9115AXI-Z mean?
A: The -Z suffix denotes the regulatory domain variant of the Catalyst 9115AXI. It is the same hardware family as other domain variants, certified for the -Z regulatory domain.

Q: Does this access point include the embedded wireless controller?
A: No. This SKU is the version without the Cisco Embedded Wireless Controller, so it is intended to be managed by an external wireless controller or Cisco DNA Center.

Q: How is the C9115AXI-Z powered?
A: It is powered through its multigigabit RJ45 uplink using 802.3at PoE+, so a PoE+ capable switch port or injector is required.

Q: Does it have internal or external antennas?
A: The AXI model uses four internal dual-band antennas, with a peak gain of 3 dBi at 2.4 GHz and 4 dBi at 5 GHz.

Q: What uplink speeds does the Ethernet port support?
A: The single RJ45 port supports 100 Mbps, 1 Gbps and 2.5 Gbps multigigabit (IEEE 802.3bz) and can run over Cat 5e cabling.
