Cisco

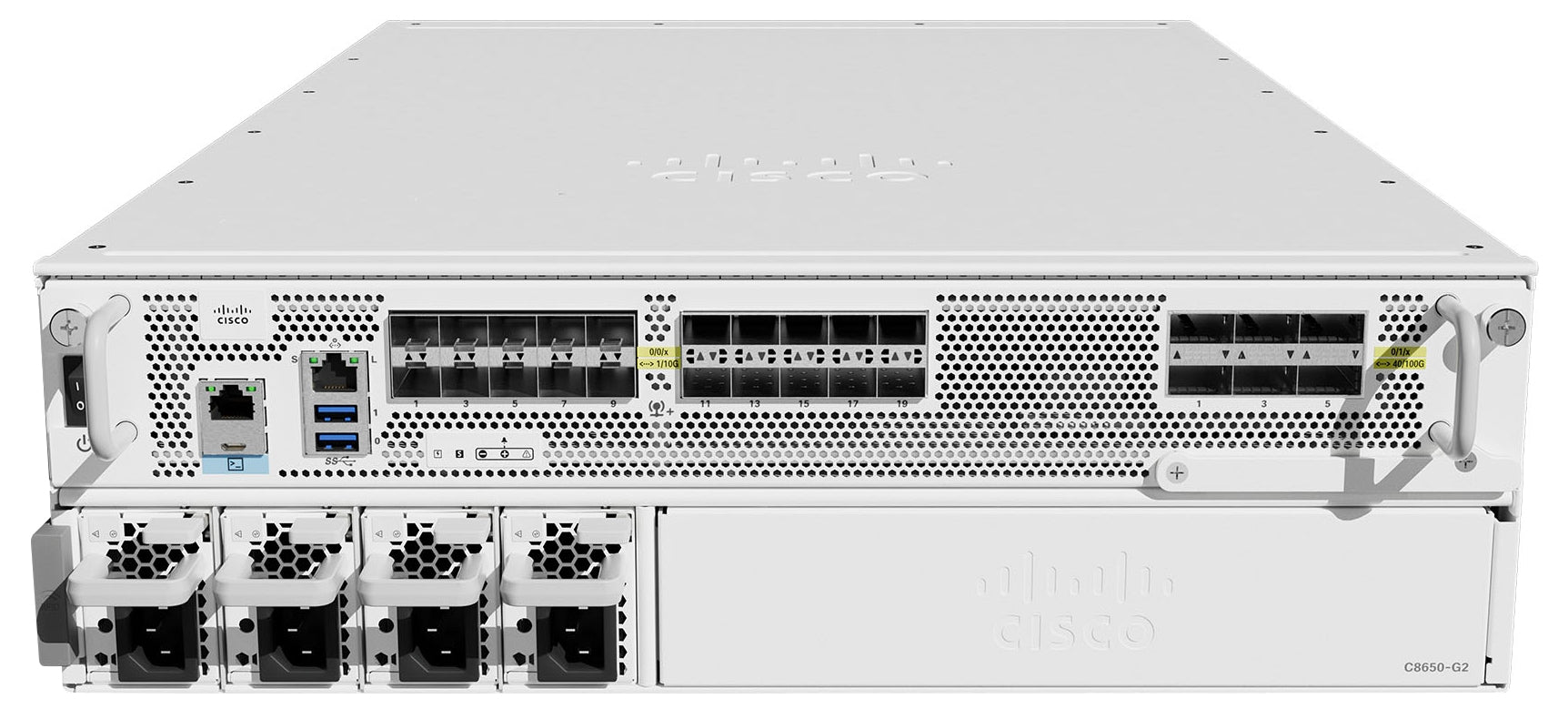

Cisco C8650-G2 | 8600 Secure Router, 20x 10G SFP+, 6x 100G QSFP28, 3RU

SKU:C8650-G2

Request Quote
Sale Sold out
Shipping calculated at checkout.

Stock Status: Enquire

20-min response

Need a quote or bulk pricing? Answered within 20 minutes, Sydney business hours.

Description

The Cisco 8650-G2 is a 3RU secure router from the Cisco 8600 Series, built for data centre and colocation environments. It suits large-scale VPN aggregation for 100GE deployments, multi-100GE internet peering and secure interconnects between data centres and clouds, including AI workloads.

This configuration provides 20x 1/10GE SFP+ ports and 6x 40/100GE QSFP28 ports, with MACsec supported on all built-in ports. Four dedicated QuantumFlow Processor ASICs handle hardware-accelerated cryptography and deep packet inspection, delivering forwarding throughput of up to 540 Gbps, IPsec throughput of up to 225 Gbps and SD-WAN throughput of up to 80 Gbps (512B). It ships with 64 GB DRAM and 480 GB storage as standard.

Power is supplied by 1100W AC or 950W DC modules with N+2 redundancy, certified 80 PLUS Platinum. The router runs Cisco IOS XE Release 26.1.2 or later and is managed through Cisco Catalyst SD-WAN Manager. It includes Post-Quantum Cryptography readiness and NEBS GR-1089 and GR-63 criteria levels.

Enquire with XS Network Tech for new or used pricing and availability.

Features

- Four dedicated third-generation QuantumFlow Processor ASICs for hardware-accelerated cryptography and deep packet inspection
- Security embedded in hardware for high throughput and scale
- Post-Quantum Cryptography readiness with quantum-resistant encryption
- MACsec on all built-in WAN/LAN ports
- Large-scale VPN aggregation for 100GE deployments
- Energy Management dashboard in Cisco Catalyst SD-WAN Manager covering usage, energy mix, cost and emissions
- 80 PLUS Platinum certified power supplies, up to 94% efficiency at 50% load
- NEBS GR-1089 and GR-63 criteria levels

Warranty

All products sold by XS Network Tech include a 12-month warranty on both new and used items. Our in-house technical team thoroughly tests used hardware prior to sale to ensure enterprise-grade reliability.

All technical data should be verified on the manufacturer data sheets.

View full details

specs-tabs

Collapsible content

Technical Specifications

FAQs

Datasheet

Technical Specifications

- WAN ports: 20x 1/10GE SFP+, 6x 40/100GE QSFP28
- MACsec: Supported on all built-in ports
- Management port: 1x RJ-45 Out-Of-Band (OOB)
- Console: 1x RJ-45 / 1x Micro-USB
- USB: USB 3.0 interfaces
- DRAM: 64 GB (default)
- Storage: 480 GB (default)
- Power supply: 1100W AC or 950W DC, N+2 redundancy
- Forwarding throughput (512B): Up to 540 Gbps
- IPsec throughput (512B): Up to 225 Gbps
- SD-WAN throughput (512B): Up to 80 Gbps (IPsec, QoS, DPI, Flexible NetFlow)
- IPv4/IPv6 routes: 16M
- SD-WAN IPsec tunnels: 12,000
- IPv4 ACLs: 4000
- IPv4 ACEs: 380,000
- NAT sessions: 32M
- VRF instances: 8000
- Dimensions (H x W x D): 13.26 x 43.81 x 68.20 cm (5.22 x 17.25 x 26.85 in)
- Rack units: 3 RU
- Chassis weight: 35.15 kg with 4x AC supplies, 34.02 kg with 3x AC supplies
- Operating temperature: 0 to 40 C
- Storage temperature: -40 to 65.5 C
- Operating humidity: 10% to 85%
- Altitude: -152 to 3048 m
- Minimum software: IOS XE Release 26.1.2, SD-WAN Release 26.1.2

FAQs

Q: What software does the C8650-G2 run?
A: It runs Cisco IOS XE Release 26.1.2 and later. It is managed through Cisco Catalyst SD-WAN Manager using SD-WAN Release 26.1.2 and later.

Q: What speeds do the built-in ports support?
A: The 20 SFP+ ports support 1GE and 10GE. The 6 QSFP28 ports support 40GE and 100GE. MACsec is supported on all built-in ports.

Q: What power options does it use?
A: It uses 1100W AC or 950W DC power supplies with N+2 redundancy. The supplies are 80 PLUS Platinum certified, with up to 94% efficiency at 50% load.

Q: How much throughput can it handle?
A: Using 512B packets it delivers up to 540 Gbps forwarding, up to 225 Gbps IPsec and up to 80 Gbps SD-WAN throughput with IPsec, QoS, deep packet inspection and Flexible NetFlow enabled.

Q: How much memory and storage does this configuration have?
A: This configuration has 64 GB of DRAM and 480 GB of storage as standard.

Datasheet

This product has a detailed PDF datasheet available. Open PDF datasheet in a new tab .
