Cisco

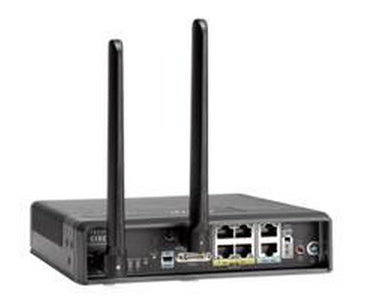

Cisco C819HG+7-K9 | 819 Hardened 3G HSPA+ Router, Dual SIM, GPS + SMS

SKU:C819HG+7-K9

Request Quote
Sale Sold out
Shipping calculated at checkout.

Stock Status: Enquire

20-min response

Need a quote or bulk pricing? Answered within 20 minutes, Sydney business hours.

Description

The Cisco 819 is a compact, hardened Cisco IOS machine-to-machine router with an embedded Sierra Wireless MC8705 HSPA+ Release 7 3G modem. It suits stationary and mobile deployments exposed to extreme temperatures, dust, splash water, shock and vibration, including industrial automation, transportation and mobile fleets, ATMs and kiosks, healthcare, utilities, retail point of sale, gas stations and telemetry. It also works as a primary or backup WAN at remote or branch sites.

This global (non-US) 3G-only variant supports HSPA+ at up to 21 Mbps downlink and 5.76 Mbps uplink across the 850, 900, 1900 and 2100 MHz bands, with EDGE and GPRS fallback. Two internal SIM slots enable cellular multi-homing, and the router adds SMS and standalone GPS. WAN options include a 10/100/1000 Gigabit Ethernet port and a Cisco Smart Serial interface, with four 10/100 Fast Ethernet LAN ports. It has 512 MB DRAM and 256 MB flash, and runs Cisco IOS Release 15.1(4)M1 or later with the Advanced IP feature set as default.

It mounts on a DIN-rail, wall or floor, and operates from -25 to 60 C with IP41 protection and MIL-STD-810G shock and vibration ratings. Power comes from an external 100-240 VAC adapter, with optional 12 VDC and 24 VDC vehicle adapters.

Enquire with XS Network Tech for new or used pricing and availability.

Features

- Smallest Cisco IOS ISR, built with industrial-grade components for extreme temperature, dust, splash water, shock and vibration
- Dual SIM support for cellular multi-homing and high reliability on HSPA and HSPA+ networks
- Cisco IOS Mobile IP and mobile network features for roaming between wireless networks
- Integrated firewall, IPS, IPsec VPN (3DES/AES), SSL VPN, DMVPN, content filtering and ScanSafe web security
- Remote 3G management with SNMP 3G MIBs, remote firmware upgrade over 3G, SMS-initiated callback and SIM/MEP lock
- QoS, IP multicast and WAN diversity across cellular, Gigabit Ethernet and serial links
- Flexible DIN-rail, wall and floor mounting with AC and DC power options

Warranty

All products sold by XS Network Tech include a 12-month warranty on both new and used items. Our in-house technical team thoroughly tests used hardware prior to sale to ensure enterprise-grade reliability.

All technical data should be verified on the manufacturer data sheets.

View full details

specs-tabs

Collapsible content

Technical Specifications

FAQs

Technical Specifications

- Modem: Sierra Wireless MC8705, HSPA+ Release 7, embedded PCI minicard
- HSPA+ bands: 850, 900, 1900, 2100 MHz
- HSPA+ speed: up to 21 Mbps downlink, 5.76 Mbps uplink
- HSDPA: 850, 900, 1900, 2100 MHz, up to 21 Mbps downlink, 384 kbps uplink
- UMTS: 850, 900, 1900, 2100 MHz, up to 2.0 Mbps downlink, 384 kbps uplink
- EDGE: 850, 900, 1800, 1900 MHz, up to 236 kbps downlink, 124 kbps uplink
- GPRS: 850, 900, 1800, 1900 MHz
- SIM slots: 2 internal (dual SIM, ISO-7816-2 compliant)
- SMS and GPS: SMS up to 160 characters, standalone GPS
- WAN interfaces: 3G wireless WAN, 1 x 10/100/1000 Gigabit Ethernet, 1 x Cisco Smart Serial
- LAN interfaces: 4 x 10/100 Fast Ethernet
- Serial WAN: sync up to 8 Mbps, async up to 115.2 kbps; EIA-232, EIA-449, EIA-530, EIA-530A, V.35, X.21
- Console and aux: single dual-purpose RJ-45, Mini-USB for 3G diagnostics
- Memory: 512 MB DRAM, 256 MB flash
- Included antennas: 2 multiband swivel-mount dipole antennas (3G-ANTM1919D)
- Dimensions (H x W x D): 44 x 196 x 206 mm
- Weight: 1.5 kg
- Operating temperature: -25 to 60 C
- Humidity: maximum 95% non-condensing
- Ingress protection: IP41 (IEC 60529), Pollution 3 (dust)
- Shock and vibration: MIL-STD-810G, EN61373, SAE J1455
- Maximum power consumption: 20 W
- MTBF (Ground Benign): 420,000 hours
- Mounting: DIN-rail, wall or floor
- Software: Cisco IOS Release 15.1(4)M1 or later

FAQs

Q: Does this router need a feature licence?
A: It runs the Advanced IP feature set by default on Cisco IOS Release 15.1(4)M1 or later. Optional features such as Trend Micro content filtering and ScanSafe are subscription-based.

Q: How is this router powered?
A: It uses an external AC adapter (PWR1-20W-AC) rated 100-240 VAC and supplying up to 20 W. Optional 12 VDC (PWR1-20W-12VDC) and 24 VDC (PWR1-20W-24VDC) vehicle adapters are available.

Q: Which Smart Serial cables work with it?
A: The Smart Serial interface supports Cisco cables CAB-SS-V35MT/FC, CAB-SS-232MT/FC, CAB-SS-449MT/FC, CAB-SS-X21MT/FC, CAB-SS-530MT and CAB-SS-530AMT.

Q: How does this model differ from other 819 variants?
A: This is the hardened, global (non-US) 3G-only model with an HSPA+ Release 7 modem, dual SIM, SMS and GPS. It does not include Wi-Fi.
