Cisco C1300X-48P-4X | Catalyst 1300X 48-Port Gigabit PoE+ Switch, 375W, 4x 10G SFP+

C1300X-48P-4X

Stock Status: Enquire

$4,181.94 AUD
$4,181.94 AUD
$4,181.94 AUD
Sale Sold out
Taxes included. Shipping calculated at checkout.

Description

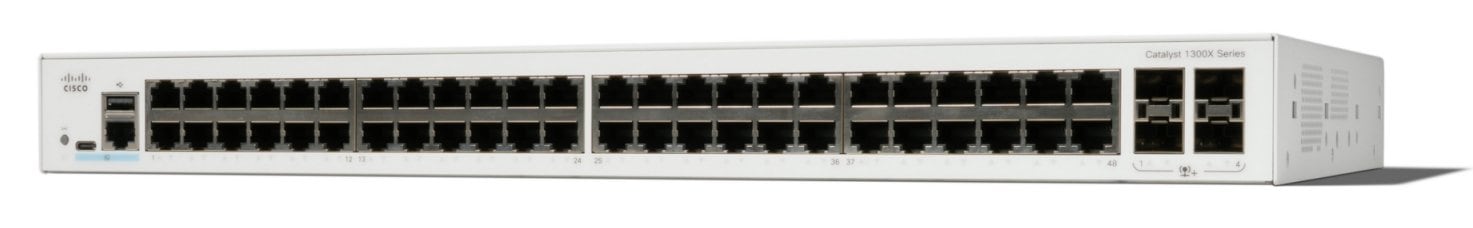

The Cisco Catalyst 1300X-48P-4X is a Layer 3 managed switch designed for SMB and enterprise branch networks. With 48 Gigabit PoE+ ports delivering 375W total power budget and four 10G SFP+ uplinks, it efficiently powers wireless access points, IP cameras, and VoIP phones while providing high-speed backbone connectivity. Front-panel stacking supports up to 8 switches for simplified scalability and unified management.

Features

Layer 3 managed switch with static routing, inter-VLAN routing, and OSPF support for advanced routing capabilities
- 48 Gigabit Ethernet PoE+ ports with 375W total budget to power access points, cameras, and IP phones
- 4x 10G SFP+ ports for high-speed uplinks and fiber connectivity to core/distribution switches
- Front-panel stacking supports up to 8 switches for scalable, unified management
- 176 Gbps non-blocking switching capacity and 130.94 Mpps forwarding rate for high-performance throughput
- Advanced security: IEEE 802.1X authentication, port security, DHCP snooping, Dynamic ARP Inspection, IP Source Guard
- Comprehensive QoS with 802.1p CoS and DSCP marking for traffic prioritization
- VLAN support with 802.1Q tagging, up to 4,096 VLANs for network segmentation
- Link aggregation (LACP) for bandwidth optimization and redundancy
- Rapid Spanning Tree Protocol (RSTP) and Multiple Spanning Tree Protocol (MSTP) for loop prevention
- Dual IPv4/IPv6 stack for seamless migration to next-generation networking
- Energy-efficient design with support for Energy Efficient Ethernet (EEE) 802.3az
- Cisco Business Dashboard and mobile app for simplified cloud-based management
- Local management via intuitive Web GUI, CLI, SSH, and SNMP
- Dual firmware image support for zero-downtime software upgrades
- Compact 1U rack-mountable design with internal power supply
- Wide operating temperature range (-5°C to 50°C) for diverse deployment environments
- Auto-sensing PoE to prevent damage to non-PoE devices
- Port mirroring for traffic analysis and troubleshooting
- Broadcast/multicast/unicast storm control for network stability

Warranty

All products sold by XS Network Tech include a 12-month warranty on both new and used items. Our in-house technical team thoroughly tests used hardware prior to sale to ensure enterprise-grade reliability.

All technical data should be verified on the manufacturer data sheets.

View full details

specs-tabs

Technical Specifications

FAQs

Datasheet

Technical Specifications

48x 10/100/1000 Gigabit Ethernet PoE+ ports (IEEE 802.3af/at, up to 30W per port)
- 4x 10G SFP+ uplink ports for fiber connectivity and stacking
- Total PoE budget: 375W
- Switching capacity: 176 Gbps
- Forwarding rate: 130.94 Mpps
- Packet buffer: 1.5 MB shared
- MAC address table: 16,000 entries
- CPU: ARM dual-core up to 1.4 GHz
- Memory: 1 GB DDR4 RAM
- Flash: 512 MB
- Front-panel stacking: Up to 8 switches via 10G SFP+ ports
- Layer 3 features: Static routing, inter-VLAN routing, OSPF support
- Management: Web GUI, CLI, SSH, SNMP, Cisco Business Dashboard, Cisco Business mobile app
- Security: IEEE 802.1X, DHCP snooping, Dynamic ARP inspection, IP Source Guard, port security
- Quality of Service: 802.1p CoS, DSCP-based QoS, rate limiting
- VLANs: 802.1Q VLAN support, up to 4,096 VLANs
- Link aggregation: LACP (802.3ad)
- Spanning Tree: 802.1w RSTP, 802.1s MSTP
- IPv6 support: Dual IPv4/IPv6 stack
- Dimensions: 445 x 350 x 44 mm (1U rack-mountable)
- Weight: 6.37 kg
- Power supply: Internal, 100-240V AC, 50/60 Hz
- Maximum power consumption: 463W (with full PoE load)
- Operating temperature: -5°C to 50°C
- Cooling: 1 fan, approximately 37.3 dBA at 25°C
- Compliance: IEEE 802.3, 802.3u, 802.3ab, 802.3z, 802.3ae, 802.3af, 802.3at

FAQs

Q: Does the C1300X-48P-4X require a license to operate?
A: No, the Cisco Catalyst 1300X Series switches do not require any subscription or software licenses for full Layer 3 functionality. All features are included and the switch comes with a limited lifetime hardware warranty and complimentary 1-year technical support.

Q: Can I stack multiple C1300X-48P-4X switches together?
A: Yes, the C1300X-48P-4X supports front-panel stacking of up to 8 switches using the 10G SFP+ ports. Stacked switches operate as a single logical unit with unified management, a single IP address, and automatic failover capabilities for enhanced resilience.

Q: What is the difference between the C1300-48P-4X and C1300X-48P-4X?
A: The C1300X-48P-4X is part of the enhanced Catalyst 1300X Series and offers a 375W PoE budget, OSPF routing support, and increased stacking bandwidth compared to the standard C1300-48P-4X which has 370W PoE. The 1300X Series is designed for more demanding enterprise environments.

Q: What devices can I power with the 375W PoE budget?
A: The 375W PoE+ budget can power devices such as Wi-Fi 6/6E access points, IP cameras, VoIP phones, wireless controllers, IoT sensors, and building automation devices. Each port supports up to 30W (802.3at PoE+), suitable for most standard enterprise equipment.

Q: Is this switch suitable for deployment outside a wiring closet?
A: Yes, the Catalyst 1300X Series features a compact, quiet design suitable for deployment in open-plan offices, classrooms, retail stores, and other environments where traditional wiring closets are not available. The switch operates at approximately 37.3 dBA noise level.
