• Cisco C1300-8MGP-2X switch with 8 RJ45 ports and 2x 10G SFP+ uplinks
1 1

Cisco

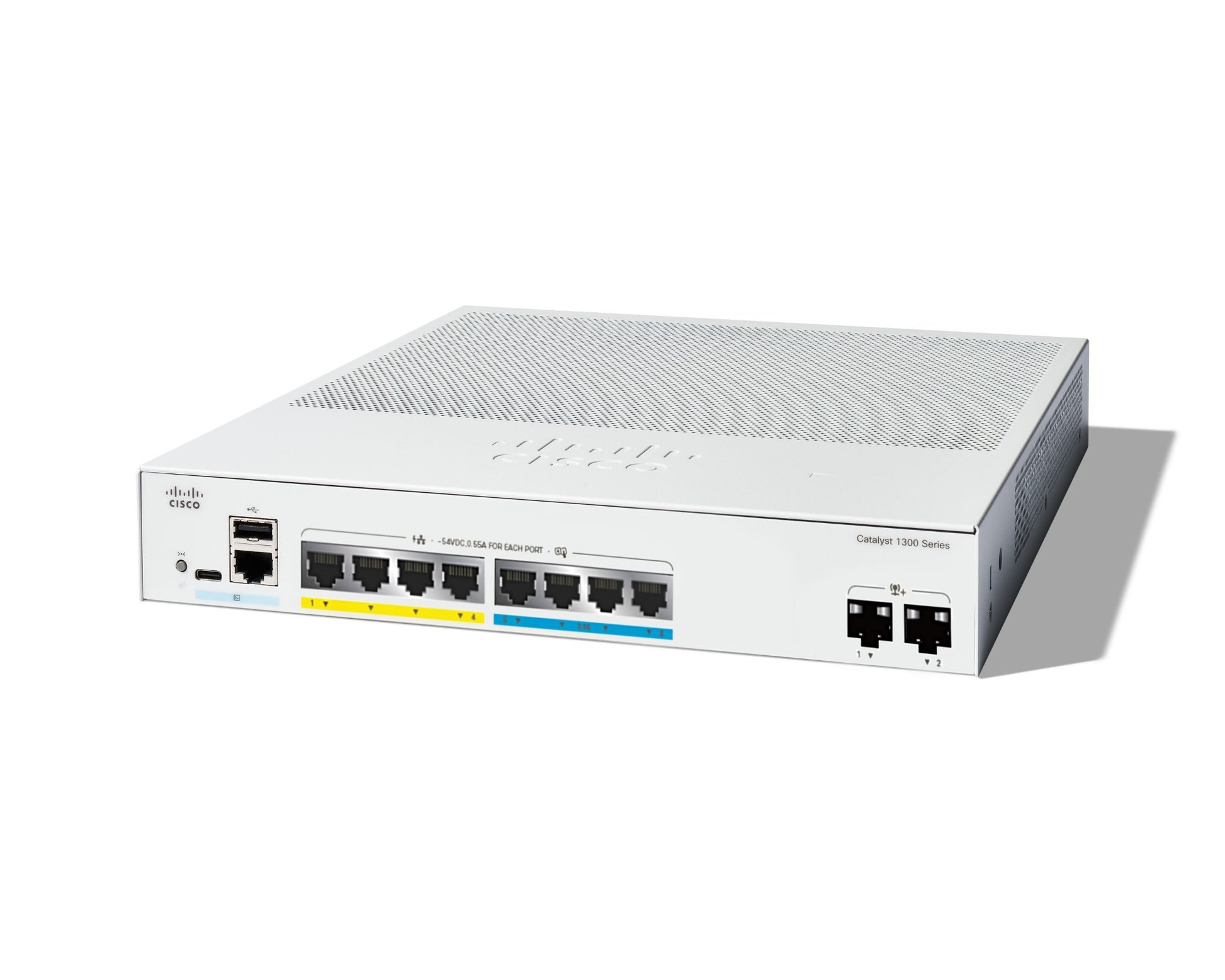

Cisco C1300-8MGP-2X | Catalyst 1300 8-Port Multi-Gig PoE+ Switch, 120W, 2x 10G SFP+

C1300-8MGP-2X

Stock Status: Enquire

$1,625.99 inc. GST
$1,478.17 ex. GST
Sale Sold out
Shipping calculated at checkout.

Description

The Cisco C1300-8MGP-2X Catalyst 1300 Series Switch is a compact Layer 3 managed switch designed for small to medium-sized businesses and enterprise branch offices. With 4 Gigabit and 4 multi-gigabit 2.5G PoE+ ports delivering up to 120W total power budget, it is ideal for powering high-performance access points, IP cameras, and VoIP phones. Two 10G SFP+ uplinks provide high-speed connectivity for backbone or server connections. Managed via the intuitive Cisco Business Dashboard and mobile app, this fanless switch delivers reliable, secure, and quiet operation for office environments.

Features

Layer 3 switching with static routing, RIP-2, and policy-based routing (PBR) for advanced traffic control
- Multi-gigabit Ethernet (2.5G) ports for high-speed connectivity to Wi-Fi 6/7 access points and modern endpoints
- Front-panel hardware stacking up to 8 units with fast failover and unified management
- Comprehensive security suite: 802.1X, port security, DHCP snooping, dynamic ARP inspection, IP Source Guard, IPv6 First Hop Security
- Advanced QoS with 8 priority queues, DSCP/CoS marking, ingress policing, and egress shaping for voice/video optimization
- PoE+ (802.3at) support on all 8 ports with 120W total budget, including perpetual PoE (maintains power during reboot)
- Energy Efficient Ethernet (IEEE 802.3az) for reduced power consumption
- IGMP v2/v3 snooping and querier for optimized multicast delivery (supports 2,000 multicast groups)
- Loopback detection and Unidirectional Link Detection (UDLD) for network resilience
- Jumbo frame support up to 9,000 bytes (default MTU 2,000 bytes)
- Dual-rate three-color (2R3C) policing for granular traffic management
- Embedded Cisco Business Dashboard probe eliminates need for separate hardware/VM
- Bluetooth support via USB dongle for secure wireless CLI/GUI access
- RESTful API for automation and integration with third-party systems
- IPv4/IPv6 dual-stack support with DHCPv6 relay and IPv6 MLD snooping
- Simple Network Time Protocol (SNTP), DNS client, DHCP client/server, and auto-configuration
- Cisco Network Plug and Play (PnP) for zero-touch provisioning in branch deployments

Warranty

All products sold by XS Network Tech include a 12-month warranty on both new and used items. Our in-house technical team thoroughly tests used hardware prior to sale to ensure enterprise-grade reliability.

All technical data should be verified on the manufacturer data sheets.

View full details

specs-tabs

Technical Specifications

FAQs

Datasheet

Manual

Technical Specifications

8 Total Ports: 4x 10/100/1000 (Gigabit) + 4x 2.5GBASE-T (multi-gigabit)
- PoE Budget: 120W total, PoE+ (802.3at) on all 8 ports, up to 30W per port
- Uplinks: 2x 10G SFP+
- Switching Capacity: 56 Gbps
- Forwarding Rate: 41.66 Mpps (million packets per second)
- MAC Address Table: 16,000 entries
- Packet Buffer: 1.5 MB
- Layer 3 Features: Static routing, RIP-2, policy-based routing (PBR), IPv4/IPv6 support, up to 990 static IPv4 routes, 128 IPv4 interfaces
- VLANs: Up to 4,093 VLAN IDs
- Stacking: Supports up to 8 switches via front-panel stacking (hardware stacking with failover)
- Link Aggregation: IEEE 802.3ad LACP, up to 8 groups, up to 8 ports per group
- Spanning Tree: STP, RSTP (802.1w), MSTP (802.1s, 8 instances), PVST+, Rapid PVST+ (126 instances)
- Security: IEEE 802.1X authentication, IP-MAC port binding, DHCP snooping, dynamic ARP inspection, IP Source Guard, IPv6 First Hop Security, ACLs (1,024 rules), port security
- QoS: 8 priority queues, DSCP/ToS/CoS classification and remarking, ingress policing, egress shaping, 802.1p support
- Management: Cisco Business Dashboard, Cisco Business mobile app, CLI (console/Telnet/SSH), Web GUI (HTTP/HTTPS), SNMP v1/v2c/v3, RMON, syslog, RADIUS, TACACS+
- Power Consumption: 21.3W (idle, typical); 100-240V AC 50-60 Hz, internal universal power supply
- Dimensions (W x D x H): 268 mm x 323 mm x 44 mm (10.6 x 12.7 x 1.7 in)
- Weight: 2.64 kg (5.82 lbs)
- Cooling: Fanless (passive cooling)
- Operating Temperature: -5°C to 50°C (23°F to 122°F)
- Certifications: UL 62368, CSA 22.2, CE mark, FCC Part 15 Class A
- MTBF: 561,618 hours at 25°C
- Warranty: Limited lifetime hardware warranty with 1-year complimentary technical support

FAQs

Q: Does the C1300-8MGP-2X require a license to operate?
A: No, the Cisco Catalyst 1300 series does not require any subscription or licenses to use. All features are available out of the box with no ongoing fees.

Q: Can this switch support Wi-Fi 6 or Wi-Fi 7 access points?
A: Yes, the 2.5G multi-gigabit ports are specifically designed to support modern high-speed access points including Wi-Fi 6 and Wi-Fi 7 models, while providing PoE+ power. The 120W PoE budget can power multiple access points simultaneously.

Q: Can I stack the C1300-8MGP-2X with other Catalyst 1300 models?
A: Yes, the C1300-8MGP-2X can be stacked with other Family 1 switches including C1300-16P-4X, C1300-24T-4X, C1300-24P-4X, C1300-24FP-4X, C1300-48T-4X, C1300-48P-4X, C1300-48FP-4X, C1300-24MGP-4X, and C1300-48MGP-4X. Up to 8 switches can be stacked as a single managed unit.

Q: Is the switch suitable for noise-sensitive environments like offices?
A: Yes, the C1300-8MGP-2X features a fanless design with passive cooling, making it completely silent. It is ideal for open-plan offices, classrooms, retail stores, and other environments where noise is a concern.

Q: What management options are available for this switch?
A: The switch can be managed through the Cisco Business Dashboard (cloud or on-premises), Cisco Business mobile app for iOS/Android, local web interface (HTTP/HTTPS), or CLI via console/Telnet/SSH. It also supports SNMP for integration with third-party network management systems.
