• Cisco C1300-8FP-2G 8-port PoE+ smart managed switch
1 1

Cisco

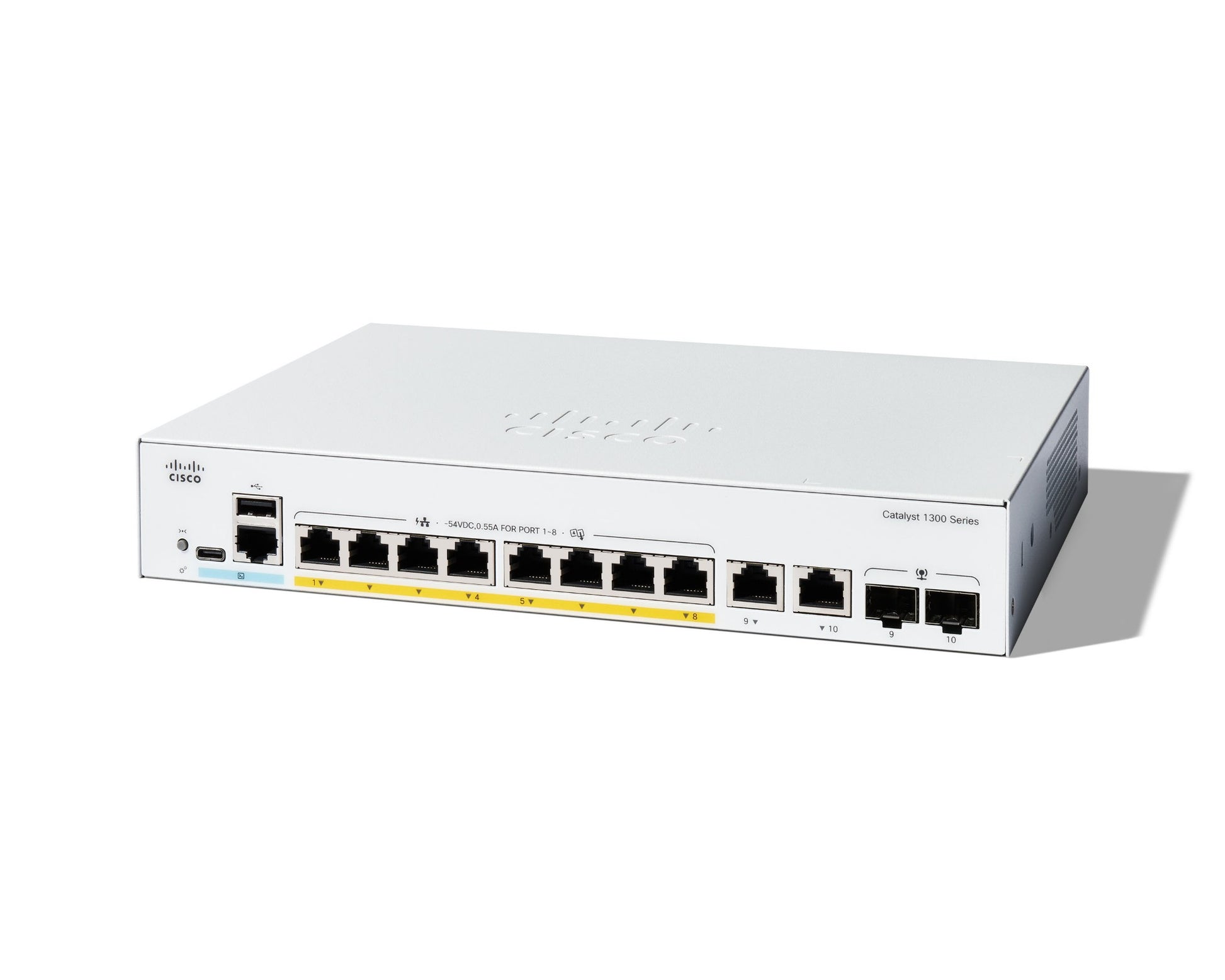

Cisco C1300-8FP-2G | Catalyst 1300 8-Port Gigabit PoE+ Switch, 120W, 2x 1G SFP/RJ45

C1300-8FP-2G

4 in stock

$897.06 AUD
$897.06 AUD
$897.06 AUD
Sale Sold out
Taxes included. Shipping calculated at checkout.

Description

The Cisco C1300-8FP-2G is a compact, fanless Layer 3 managed switch designed for SMB and branch office deployments. With 8 Gigabit PoE+ ports delivering 120W total power budget and 2 combo copper/SFP uplink ports, it provides enterprise-class performance ideal for powering IP phones, wireless access points, and security cameras. Managed through Cisco Business Dashboard, Web GUI, CLI, or SNMP, it delivers reliable connectivity with advanced security features.

Features

Layer 3 switching with static routing, RIP-2, and policy-based routing (PBR)
- Advanced VLAN capabilities: 802.1Q VLAN tagging, private VLANs, voice VLAN, guest VLAN
- Spanning Tree Protocols: STP, RSTP, MSTP with Root Guard and BPDU Guard
- Link aggregation: up to 8 groups with 8 ports per group (LACP support)
- Multicast support: IGMP v2/v3 snooping, MLD v1/v2 snooping, up to 2000 multicast groups
- Comprehensive security: 802.1X port-based authentication, MAC address authentication, RADIUS, TACACS+
- Advanced threat defense: Dynamic ARP inspection, DHCP snooping, IP Source Guard, port security
- Quality of Service (QoS): 8 priority queues, rate limiting, traffic shaping, DiffServ marking
- IPv4 and IPv6 dual stack support with up to 990 static IPv4 routes
- Energy Efficient Ethernet (EEE) IEEE 802.3az
- PoE scheduling for power management and energy savings
- Dual firmware images for zero-downtime upgrades
- Cisco Business Dashboard support with embedded probe (no separate hardware required)
- Zero-Touch Deployment and Cisco Network Plug and Play
- USB port for Bluetooth dongle (CLI and GUI access via Bluetooth)
- Port mirroring (SPAN) and flow-based monitoring (sFlow)
- Storm control for broadcast, multicast, and unicast traffic
- Cable diagnostics and loopback detection

Warranty

All products sold by XS Network Tech include a 12-month warranty on both new and used items. Our in-house technical team thoroughly tests used hardware prior to sale to ensure enterprise-grade reliability.

All technical data should be verified on the manufacturer data sheets.

View full details

specs-tabs

Technical Specifications

FAQs

Datasheet

Manual

Technical Specifications

8x 10/100/1000 PoE+ ports (IEEE 802.3at), up to 30W per port
- 2x Gigabit combo ports (RJ45/SFP), one active per combo port
- Total PoE budget: 120W
- Switching capacity: 20 Gbps
- Forwarding rate: 14.88 Mpps
- Layer 3 switching with static routing and inter-VLAN routing
- Packet buffer: 1.5 MB
- VLAN support: up to 4093 VLAN IDs
- Management: Web GUI, CLI, SNMP, SSH, Telnet, HTTPS, Cisco Business Dashboard
- Security: 802.1X authentication, ACLs (1024 rules), port security, DHCP snooping, IP Source Guard, ARP inspection
- QoS: 8 priority queues, DiffServ support
- Fanless silent operation
- Operating temperature: 0°C to 40°C (32°F to 104°F)
- Rack mountable with optional brackets (not included)
- Internal universal AC power supply

FAQs

Q: Does the C1300-8FP-2G support stacking?
A: No, the Catalyst 1300 Series does not support physical stacking. However, up to eight switches can be managed together as a virtual stack through the Cisco Business Dashboard for simplified management.

Q: What is the difference between C1300-8P-E-2G and C1300-8FP-2G?
A: Both models have 8 PoE+ ports and 2 combo uplinks, but the C1300-8FP-2G offers a significantly higher PoE budget of 120W compared to 67W on the 8P-E model, making it better suited for deployments with multiple high-power devices like PTZ cameras or WiFi 6 access points.

Q: Is this switch suitable for outdoor deployment?
A: No, the C1300-8FP-2G is designed for indoor use only with an operating temperature range of 0°C to 40°C. For outdoor applications, consider Cisco's industrial switch portfolio such as the Catalyst IE or ruggedized models.

Q: Can I use SFP fiber modules in the combo uplink ports?
A: Yes, the two combo ports support standard Cisco 1G SFP modules including SX (multimode), LX/LH (single-mode), and BiDi transceivers. Only one connection type (RJ45 or SFP) can be active per combo port at a time.

Q: What warranty does Cisco provide with this switch?
A: The Cisco Catalyst 1300 Series typically includes a limited lifetime hardware warranty with return-to-factory replacement, plus complimentary one-year access to the Cisco Small Business Support Center for technical assistance and software updates.

Datasheet

This product has a detailed PDF datasheet available. Open PDF datasheet in a new tab .

Your browser can’t display the embedded PDF. Click here to open it in a new tab.

Manual

This product has a detailed PDF manual available. Open PDF manual in a new tab .

Your browser can’t display the embedded PDF. Click here to open it in a new tab.
