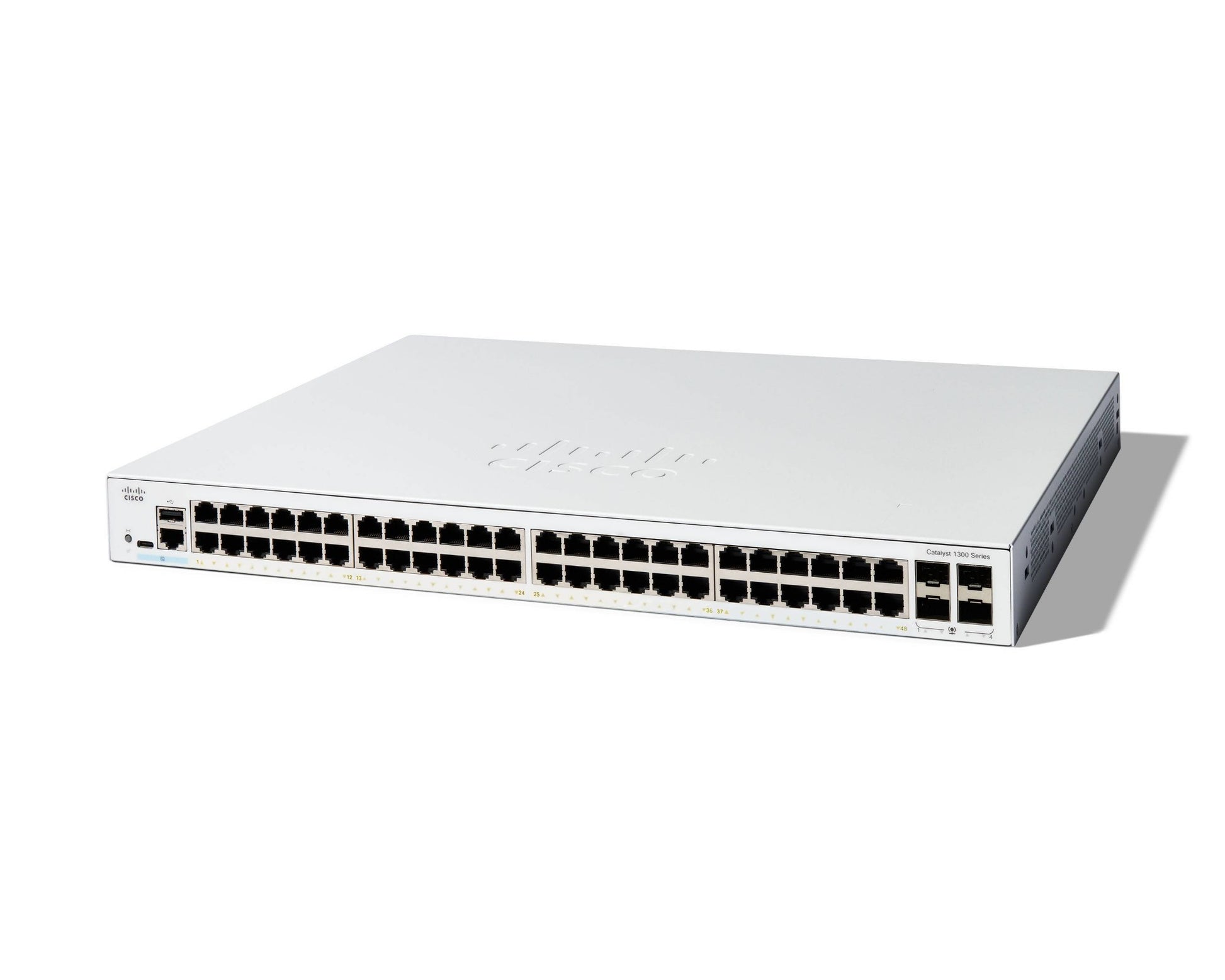

Cisco C1300-48T-4G | Catalyst 1300 48-Port Gigabit Switch, 4x 1G SFP

SKU:C1300-48T-4G

14 in stock

Regular price $1,698.20 AUD
Regular price
$1,698.20 AUD
$1,698.20 AUD
Regular price
Sale Sold out
Taxes included. Shipping calculated at checkout.

Description

The Cisco Catalyst 1300-48T-4G is a managed Layer 3 Gigabit Ethernet switch designed for SMB and enterprise branch deployments. With 48 auto-sensing 10/100/1000 ports and 4 Gigabit SFP uplinks, it delivers reliable connectivity with advanced Layer 2/3 features, robust security, and intuitive management via web interface and mobile app. Ideal for connecting IP cameras, wireless access points, and network devices in offices and branch locations.

Features

Layer 2 switching with Layer 3 static and dynamic routing capabilities
- VLAN support with 802.1Q tagging and 4093 VLAN IDs
- Link aggregation (802.3ad LACP) with 8 groups and 8 ports per group
- Spanning Tree Protocol: STP, RSTP, MSTP (8 instances)
- Rapid Per-VLAN Spanning Tree Plus (RPVST+) with 126 instances
- Quality of Service (QoS) with 8 priority queues and DSCP-based classification
- Advanced security: 802.1X authentication, port security, MAC address authentication
- Network attack prevention: IP Source Guard, Dynamic ARP Inspection, DHCP snooping
- IPv6 First Hop Security for IPv6 network protection
- IGMP v2/v3 snooping, querier, and proxy for multicast optimization
- MLD v1/v2 snooping and proxy for IPv6 multicast
- Storm control for broadcast, multicast, unicast, and unknown traffic
- Port mirroring and VLAN mirroring for traffic analysis
- Access Control Lists (ACLs) with 1024 rules
- Energy Efficient Ethernet (IEEE 802.3az) compliance
- LLDP and LLDP-MED for device discovery and VoIP integration
- Private VLAN, Guest VLAN, and Voice VLAN support
- Q-in-Q VLAN tunneling for service provider scenarios
- Loopback detection and cable length detection
- Zero-Touch Deployment for simplified installation
- USB Type-C console port for easy management access

Warranty

All products sold by XS Network Tech include a 12-month warranty on both new and used items. Our in-house technical team thoroughly tests used hardware prior to sale to ensure enterprise-grade reliability.

All technical data should be verified on the manufacturer data sheets.

View full details

specs-tabs

Collapsible content

Technical Specifications

FAQs

Datasheet

Manual

Technical Specifications

48x 10/100/1000 Mbps auto-sensing Ethernet ports
- 4x Gigabit SFP uplink ports
- Switching capacity: 104 Gbps
- Forwarding rate: 77.38 Mpps
- Packet buffer: 3 MB
- Processor: ARM dual-core at 1.4 GHz
- Memory: 1 GB DDR4 DRAM
- Flash: 512 MB
- MAC address table: 16,000 entries
- VLANs: 4093 VLAN IDs supported
- Form factor: 1U rack-mountable
- Dimensions: 445 x 288 x 44 mm (17.5 x 11.33 x 1.73 in)
- Weight: 3.95 kg (8.71 lb)
- Power consumption: ~90W
- Power supply: 100-240V AC, 50-60 Hz, internal universal
- Operating temperature: -5°C to 50°C (23°F to 122°F)
- Management: Web GUI, CLI, Cisco Business Dashboard, Cisco Business mobile app, SNMP, RMON
- Certifications: UL 62368, CSA 22.2, CE, FCC Part 15 Class A

FAQs

Q: Does the C1300-48T-4G support PoE?
A: No, this model does not support Power over Ethernet. For PoE requirements, consider the C1300-48P-4G or C1300-48FP-4G models which offer PoE+ with 370W or 740W power budgets respectively.

Q: What Layer 3 routing protocols does this switch support?
A: The C1300-48T-4G supports static routing, RIP-2, and EIGRP for dynamic routing, along with up to 990 static IPv4 routes and 128 IPv4 interfaces.

Q: Can this switch be used in a stacking configuration?
A: Yes, the Catalyst 1300 Series supports front-panel stacking technology, allowing up to eight switches to operate as a single unified device with centralized management.

Q: What management options are available?
A: The switch can be managed via intuitive web GUI, CLI through console or SSH, Cisco Business Dashboard cloud platform, Cisco Business mobile app, and integrates with Cisco DNA Center and Prime Infrastructure.

Q: Does this switch require licensing to use advanced features?
A: No subscription or licenses are required to use the full feature set. The switch includes a limited lifetime hardware warranty with complimentary one-year technical support and software updates.

Datasheet

This product has a detailed PDF datasheet available. Open PDF datasheet in a new tab .

Your browser can’t display the embedded PDF. Click here to open it in a new tab.

Manual

This product has a detailed PDF manual available. Open PDF manual in a new tab .

Your browser can’t display the embedded PDF. Click here to open it in a new tab.
