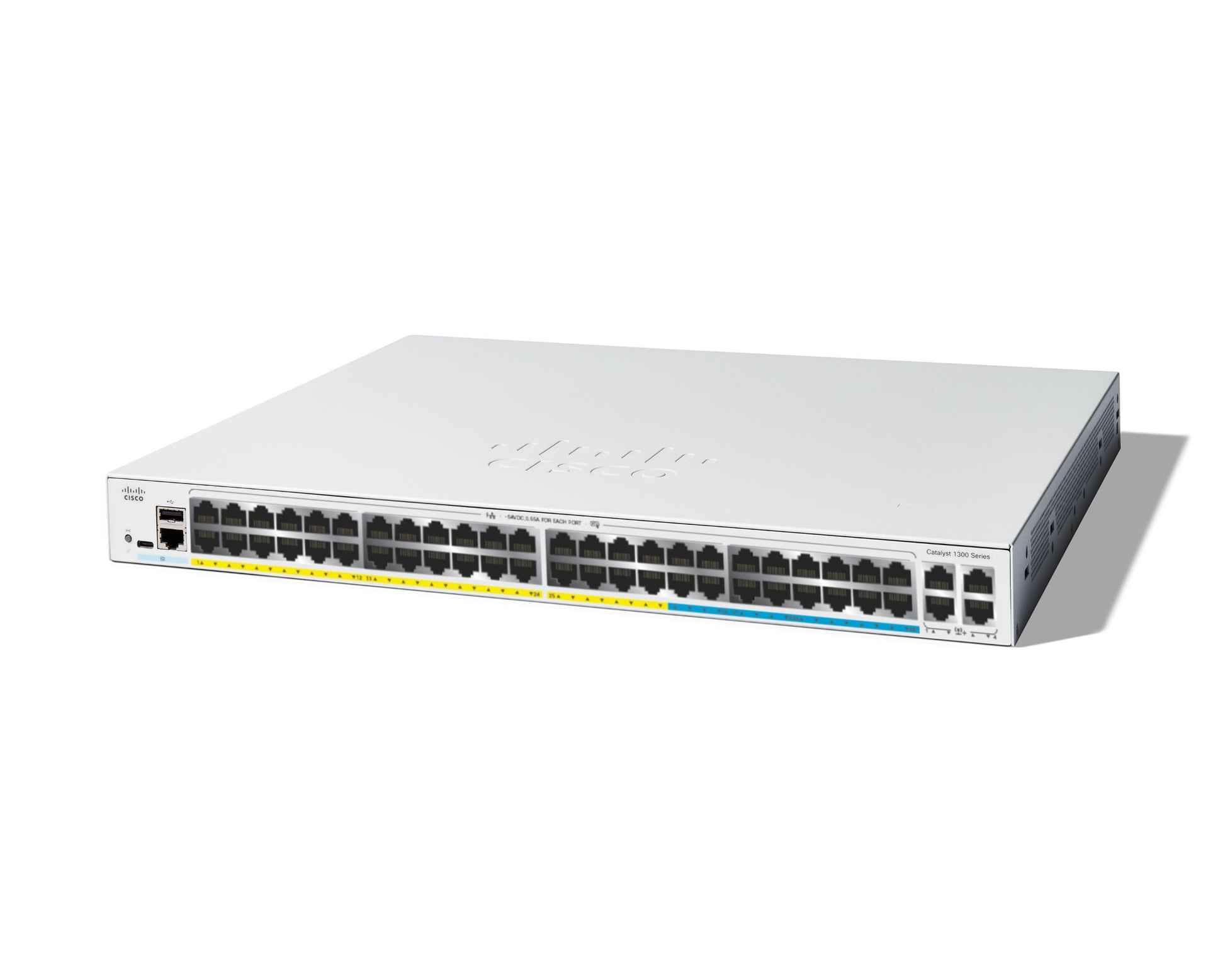

• Cisco C1300-48MGP-4X silver switch with multi-gigabit ports
1 1

Cisco

Cisco C1300-48MGP-4X | Catalyst 1300 48-Port Multi-Gig PoE+ Switch, 740W, 4x 10G SFP+

C1300-48MGP-4X

Stock Status: Enquire

$5,249.41 inc. GST
$4,772.19 ex. GST
Sale Sold out
Shipping calculated at checkout.

Description

The Cisco Catalyst C1300-48MGP-4X is a managed Layer 3 Gigabit Ethernet switch designed for small to medium-sized businesses and branch offices. Featuring 32 Gigabit PoE+ ports and 16 multi-gigabit 2.5G PoE+ ports with a total 740W PoE budget, it delivers reliable power and connectivity for IP phones, wireless access points, and security cameras. With four 10G SFP+ uplink ports and front-panel stacking support for up to 8 switches, it provides scalable, high-performance networking with advanced security features and simplified management through the Cisco Business Dashboard.

Features

Layer 2 switching with Layer 3 static routing and inter-VLAN routing
- 802.3af PoE and 802.3at PoE+ support across all 48 ports with 740W total budget
- Multi-gigabit support: 16 ports at 2.5G for high-bandwidth devices like Wi-Fi 6 APs
- Four 10 Gigabit SFP+ uplink ports for high-speed fiber connectivity to core network
- Front-panel hardware stacking up to 8 switches for unified management
- Advanced QoS with 8 priority queues for voice, video, and data traffic optimization
- VLAN support: 4,093 VLAN IDs, VLAN trunking, private VLANs
- Spanning Tree Protocol: STP, RSTP, MSTP (8 instances), and RPVST+ (126 instances)
- Link aggregation: 8 groups with 8 ports per group (LACP)
- IPv4 and IPv6 dual-stack support for future-proof networking
- IGMP snooping v2/v3 and MLD snooping for efficient multicast management (2,000 groups)
- Advanced security: 802.1X, port security, ACLs, dynamic ARP inspection, DHCP snooping
- Energy Efficient Ethernet (IEEE 802.3az) for reduced power consumption
- Dual firmware images for zero-downtime software upgrades
- Comprehensive management: Cisco Business Dashboard, mobile app, Web UI, CLI, SNMP
- Auto Surveillance VLAN for automatic IP camera deployment
- Voice VLAN support for VoIP traffic prioritization
- Jumbo frame support up to 9,216 bytes
- Limited lifetime hardware warranty with 1-year technical support included

Warranty

All products sold by XS Network Tech include a 12-month warranty on both new and used items. Our in-house technical team thoroughly tests used hardware prior to sale to ensure enterprise-grade reliability.

All technical data should be verified on the manufacturer data sheets.

View full details

specs-tabs

Technical Specifications

FAQs

Datasheet

Manual

Technical Specifications

Total Ports: 48 PoE+ ports (32x 10/100/1000 + 16x 2.5G) + 4x 10G SFP+ uplinks
- PoE Budget: 740W total (802.3af PoE and 802.3at PoE+, up to 30W per port)
- Switching Capacity: 224 Gbps (176 Gbps according to some sources)
- Forwarding Rate: 166.65 Mpps (131-167 Mpps range)
- Layer Support: Layer 2 switching with Layer 3 static routing capabilities
- MAC Address Table: 16,000 entries
- VLAN Support: Up to 4,093 VLAN IDs, 64 static and 64 dynamic VLANs
- Stacking: Front-panel stacking using uplink ports, up to 8 switches in a stack
- Memory & Buffer: 3 MB packet buffer, ARM dual-core CPU at 1.4 GHz
- Management: Cisco Business Dashboard, Web UI, CLI, SNMP v2/v3, SSH, HTTPS, RADIUS/TACACS+
- Console Ports: 1x RJ-45 console port, 1x USB Type-C management port
- Power Consumption: 93.6W (switch itself)
- Dimensions: 44.5 x 22.8 x 4.4 cm (W×D×H), 1RU rack-mountable
- Weight: 3.2 kg
- Operating Temperature: Standard commercial operating range
- Energy Efficiency: IEEE 802.3az Energy Efficient Ethernet compliant

FAQs

Q: What is the difference between the 32 Gigabit ports and 16 multi-gigabit ports on this switch?
A: The C1300-48MGP-4X features 32 ports running at standard 10/100/1000 Mbps Gigabit speeds and 16 ports that support multi-gigabit speeds up to 2.5G. All 48 ports support PoE+ (802.3at) with a combined 740W power budget, making it ideal for powering Wi-Fi 6 access points and other high-bandwidth devices that benefit from 2.5G connectivity.

Q: Does this switch require licensing to operate?
A: No, the Catalyst 1300 Series operates with a perpetual license model and requires no subscription or additional licenses to use. It includes a limited lifetime hardware warranty and complimentary technical support, making it cost-effective for small and medium-sized businesses.

Q: Can this switch be stacked with other Catalyst 1300 models?
A: Yes, the C1300-48MGP-4X supports front-panel stacking using the 10G SFP+ uplink ports. You can stack up to 8 Catalyst 1300 Series switches together (including models C1300-16P-4X, C1300-24T-4X, C1300-24P-4X, C1300-24FP-4X, C1300-48T-4X, C1300-48P-4X, C1300-48FP-4X, C1300-8MGP-2X, C1300-24MGP-4X) for unified management and up to 200 ports managed as a single logical device.

Q: What Layer 3 routing capabilities does this switch support?
A: The C1300-48MGP-4X is a managed Layer 3 switch that supports static IP routing, up to 990 IPv4 static routes, 128 IPv4 interfaces, inter-VLAN routing, and policy-based routing (PBR). It also supports routing protocols including RIP-2, along with advanced features like IPv6, CIDR, and IGMP for multicast traffic management.

Q: What security features are included with this switch?
A: The switch includes comprehensive enterprise-grade security features including IEEE 802.1X port-based access control, dynamic ARP inspection, DHCP snooping, IP-MAC port binding, ACLs (up to 1,024 rules), IPv6 First Hop Security, port security, and web-based authentication. It supports RADIUS and TACACS+ authentication for centralized access control and integrates with Cisco's security ecosystem.
