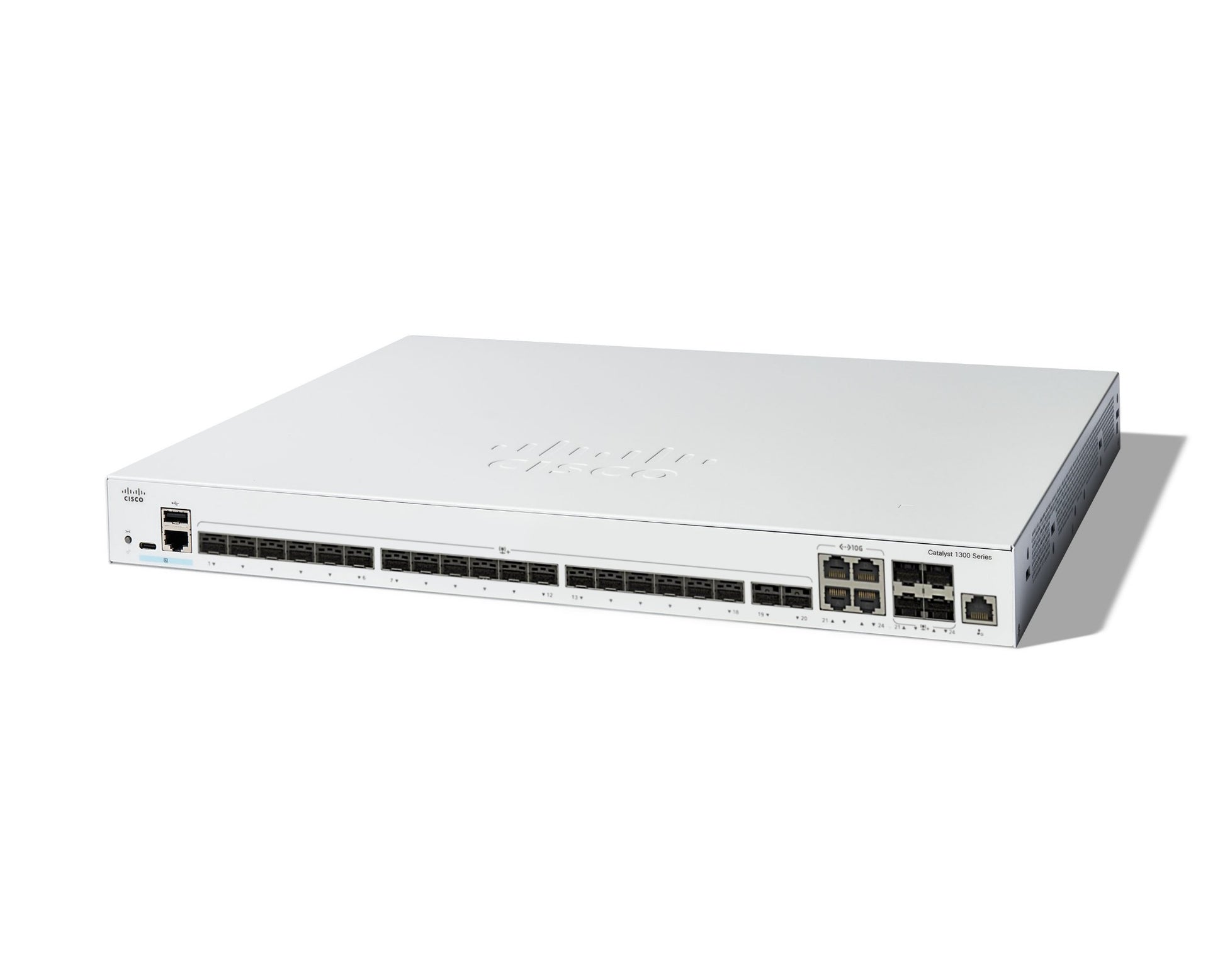

• Cisco C1300-24XS silver switch with 24x 10G SFP+ black ports
1 1

Cisco

Cisco C1300-24XS | Catalyst 1300 24-Port 10G SFP+ Switch, 4x SFP+/RJ45

C1300-24XS

$6,350.30 inc. GST
$5,773.00 ex. GST
Sale Sold out
Shipping calculated at checkout.

1 in stock

20-min response

Need a quote or bulk pricing? Answered within 20 minutes, Sydney business hours.

Description

The Catalyst 1300-24XS is a fixed, managed Layer 3 switch from the Catalyst 1300 series, built for enterprise branch offices and SMB networks. Its 10G SFP+ density suits high-bandwidth aggregation, uplinks, and server or storage connectivity, and it can carry data, voice and video on one network with traffic segmentation for secure guest access.

The port layout is 20 x 10G SFP+ ports and 4 x 10G copper RJ45/SFP+ combo ports, plus a dedicated 1 x GE out-of-band management port. Switching capacity is 480 Gbps at wire speed with a 357.14 Mpps forwarding rate and an 8 MB packet buffer. It is a 1U rack-mount unit with an internal universal power supply, 100-240V, drawing about 49.5 W worst case. There is no PoE on this model, and no software licence is needed to operate it. Up to 8 units can be stacked from the front panel and managed under a single IP address.

Stacking is supported only with other C1300 Family 2 models, including the C1300-12XT-2X, C1300-12XS, C1300-16XTS, C1300-24XT and C1300-24XTS. Genuine optics listed for the SFP+ ports include SFP-10G-SR, SFP-10G-LR, SFP-10G-ER, SFP-10G-T-X and SFP-H10GB-CU DAC cables, along with a range of 1G SFP modules. Management is available through the web GUI, CLI, SNMP, Cisco Business Dashboard and the Cisco Business mobile app.

Enquire with XS Network Tech for new or used pricing and availability.

Features

- Layer 3 wire-speed IPv4/IPv6 routing with static routes, RIPv2 and policy-based routing
- Front-panel hardware stacking for up to 8 switches under a single IP address
- Cross-stack QoS, VLAN, LAG and port mirroring
- Management via Cisco Business Dashboard, the Cisco Business mobile app, web GUI, CLI and SNMP
- Cisco Network Plug and Play support for near-zero-touch deployment
- Security with 802.1X, DHCP snooping, IP Source Guard, Dynamic ARP Inspection, port security, storm control and ACLs
- QoS with 8 hardware queues, strict priority and WRR scheduling, DSCP/CoS classification and iSCSI traffic optimisation
- Dual software image support for upgrades with minimal downtime
- Energy Efficient Ethernet (802.3az) and automatic power shut-off on ports with link down

Warranty

All products sold by XS Network Tech include a 12-month warranty on both new and used items. Our in-house technical team thoroughly tests used hardware prior to sale to ensure enterprise-grade reliability.

All technical data should be verified on the manufacturer data sheets.

View full details

specs-tabs

Technical Specifications

FAQs

Datasheet

Manual

Technical Specifications

- Ports: 20 x 10G SFP+, 4 x 10G copper RJ45/SFP+ combo, 1 x GE out-of-band management
- Switching capacity: 480 Gbps, wire speed, non-blocking
- Forwarding rate: 357.14 Mpps (64-byte packets)
- Packet buffer: 8 MB, dynamically shared across all ports
- Flash: 1 GB SLC
- CPU: ARM dual-core, 1.5 GHz
- DRAM: 1 GB DDR4
- Console: RJ45 console port and USB Type C port
- Stacking: up to 8 switches per stack, up to 400 ports managed as one system
- Jumbo frames: up to 9000 bytes
- IPv4 routing: up to 7168 dynamic and static routes, up to 256 IP interfaces
- ACLs: up to 2048 rules
- IGMP snooping: 4000 multicast groups
- Hardware queues: 8
- VLANs: up to 4094
- PoE: not supported
- Power supply: internal universal, 100-240V, 50-60 Hz
- Power consumption (worst case): 49.46 W at 110V, 49.02 W at 220V
- Idle power: 21.5 W at 110V, 21.3 W at 220V
- Heat dissipation: 220.77 BTU/hr
- Dimensions (W x D x H): 444.3 x 286 x 43.94 mm
- Weight: 4.15 kg
- Acoustic noise: 27.6 dBA at 25 C, 1 fan
- Operating temperature: -5 to 50 C
- Storage temperature: -25 to 70 C
- Operating humidity: 10% to 90% non-condensing
- Certifications: UL 62368, CSA 22.2, CE, FCC Part 15 Class A

FAQs

Q: Does the C1300-24XS need a software licence?
A: No software licence or subscription is required to operate the switch. Cisco Business Dashboard is available for management.

Q: Does this switch support PoE?
A: No. The C1300-24XS does not provide PoE on any port. It runs from an internal universal AC power supply, 100-240V.

Q: What can I stack it with?
A: It stacks only with other C1300 Family 2 models, such as the C1300-12XT-2X, C1300-12XS, C1300-16XTS, C1300-24XT and C1300-24XTS, up to 8 units per stack. Cross-family stacking is not supported.

Q: Which genuine optics work in the SFP+ ports?
A: Listed 10G options include SFP-10G-SR, SFP-10G-LR, SFP-10G-ER, SFP-10G-T-X, SFP-H10GB-CU1M to 5M DAC cables and SFP-10G-AOC1M to 10M cables. Several 1G SFP modules such as GLC-SX-MMD and GLC-LH-SMD are also listed.

Q: How does the 24XS differ from other C1300 models?
A: It offers 20 x 10G SFP+ ports plus 4 x 10G copper/SFP+ combo ports and a 1 x GE management port. It has no PoE and mounts in a 19-inch rack.
