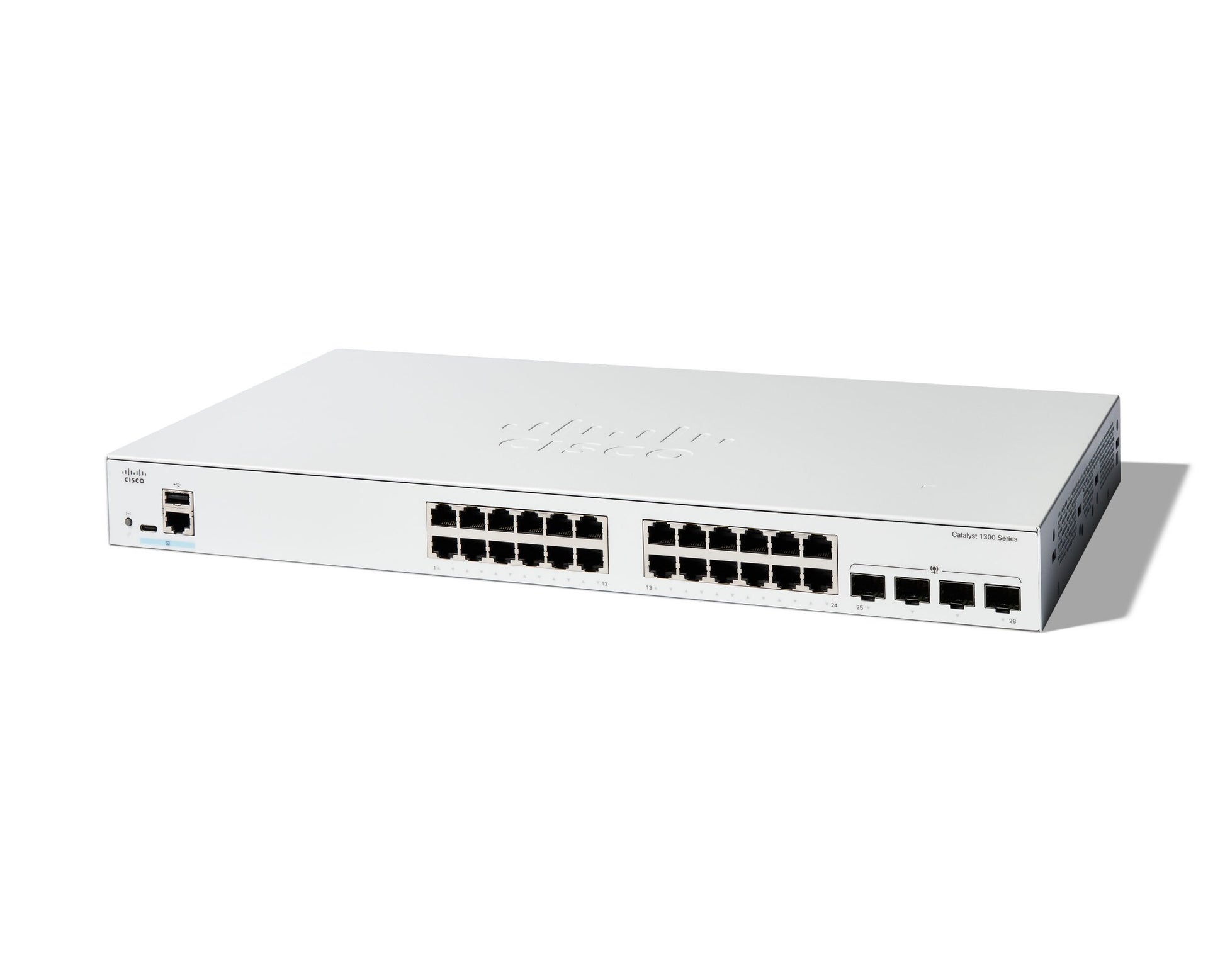

• Cisco C1300-24T-4G 24-port white switch with 4G SFP uplinks
1 1

Cisco

Cisco C1300-24T-4G | Catalyst 1300 24-Port Gigabit Switch, 4x 1G SFP

C1300-24T-4G

20 in stock

$1,076.49 inc. GST
$978.63 ex. GST
Sale Sold out
Shipping calculated at checkout.

Description

The Cisco Catalyst C1300-24T-4G is a Layer 3 managed Gigabit Ethernet switch designed for small and medium-sized businesses and enterprise branch offices. With 24 Gigabit Ethernet ports and 4 dedicated Gigabit SFP uplinks, this fanless switch delivers reliable, silent operation ideal for noise-sensitive environments like open offices, classrooms, and retail spaces. Managed through the intuitive Cisco Business Dashboard and mobile app, it provides advanced Layer 3 static routing, VLAN segmentation, and enterprise-grade security features without requiring ongoing subscriptions.

Features

Layer 3 managed switch with static IPv4/IPv6 routing capabilities
- Advanced VLAN support for network segmentation and security
- Quality of Service (QoS) with 8 hardware queues per port, DSCP/CoS classification, and WRR scheduling
- Comprehensive security features: IEEE 802.1X authentication, port security, IP/MAC/port binding (IPMB), ACLs
- Advanced defense mechanisms: dynamic ARP inspection, IP Source Guard, DHCP snooping, DoS attack prevention
- IPv6 First Hop Security for protection against address spoofing and man-in-the-middle attacks
- Web-based authentication for consistent user access control
- Link aggregation support for increased bandwidth and redundancy
- IEEE 802.3az Energy Efficient Ethernet (EEE) compliance for reduced power consumption
- Dual firmware image support for minimal downtime during software upgrades
- USB Type-C port on front panel for file and image management as well as console access
- Intuitive Cisco Business Dashboard and mobile app for simplified deployment, monitoring, and troubleshooting
- Zero-touch provisioning and auto-configuration for rapid deployment
- Supports remote management via cloud-based Cisco Business Dashboard
- Front panel LED indicators for port status and diagnostics
- Compact 1U form factor ideal for installation outside wiring closets

Warranty

All products sold by XS Network Tech include a 12-month warranty on both new and used items. Our in-house technical team thoroughly tests used hardware prior to sale to ensure enterprise-grade reliability.

All technical data should be verified on the manufacturer data sheets.

View full details

specs-tabs

Technical Specifications

FAQs

Datasheet

Manual

Technical Specifications

24 x 10/100/1000 Gigabit Ethernet RJ-45 ports
- 4 x 1G SFP uplink ports
- Switching capacity: 56 Gbps
- Forwarding rate: 41.66 Mpps (wire-speed, non-blocking)
- Layer 3 static routing support (IPv4/IPv6)
- MAC address table: 16,000 entries
- Memory: 1 GB DDR4 RAM, 512 MB Flash
- Packet buffer: 1.5 MB shared
- CPU: ARM dual-core at 1.4 GHz
- Management: Web GUI, CLI, SNMP v1/2c/3, Cisco Business Dashboard, Cisco Business mobile app
- Jumbo frame support up to 9,000 bytes (default MTU 2,000 bytes)
- Fanless passive cooling (silent operation)
- Power: 100-240V AC, 50-60 Hz, internal power supply
- Power consumption: Maximum 25.63W
- Form factor: 1RU rack-mountable
- Dimensions: 445 x 240 x 44 mm (17.5 x 9.45 x 1.73 in)
- Weight: 2.63 kg (5.80 lb)
- Operating temperature: -5°C to 50°C (23°F to 122°F)
- MTBF: 664,987 hours at 25°C
- Certifications: UL 62368, CSA 22.2, CE mark, FCC Part 15 Class A
- Limited lifetime hardware warranty with complimentary 1-year technical support

FAQs

Q: Does the C1300-24T-4G support Power over Ethernet (PoE)?
A: No, this model does not support PoE. It is designed for data connectivity only, making it ideal for environments where network devices are locally powered. For PoE requirements, consider the C1300-24P-4G (195W budget) or C1300-24FP-4G (370W budget) models.

Q: Does this switch require a subscription or license to operate?
A: No, the Cisco Catalyst C1300-24T-4G includes a perpetual license with no subscription fees required. All features and software updates are included, making it a cost-effective solution for small and medium businesses.

Q: Can I stack multiple C1300-24T-4G switches together?
A: No, the C1300-24T-4G does not support hardware stacking. Stacking is available on the C1300-24T-4X and other models in the 4X series. However, you can still manage multiple C1300-24T-4G switches centrally through the Cisco Business Dashboard.

Q: What Layer 3 features does this switch support?
A: The C1300-24T-4G supports IPv4 and IPv6 static routing, allowing inter-VLAN routing directly on the switch. This offloads traffic from the network router and improves overall performance. It does not support dynamic routing protocols like OSPF or EIGRP.

Q: Is this switch suitable for quiet office environments?
A: Yes, the C1300-24T-4G features a completely fanless design with passive cooling, ensuring silent operation. This makes it ideal for deployment in open-plan offices, meeting rooms, classrooms, and retail environments where noise is a concern.
