• Cisco C1300-24P-4X 24-port PoE+ managed switch with 10G SFP+ uplinks
1 1

Cisco

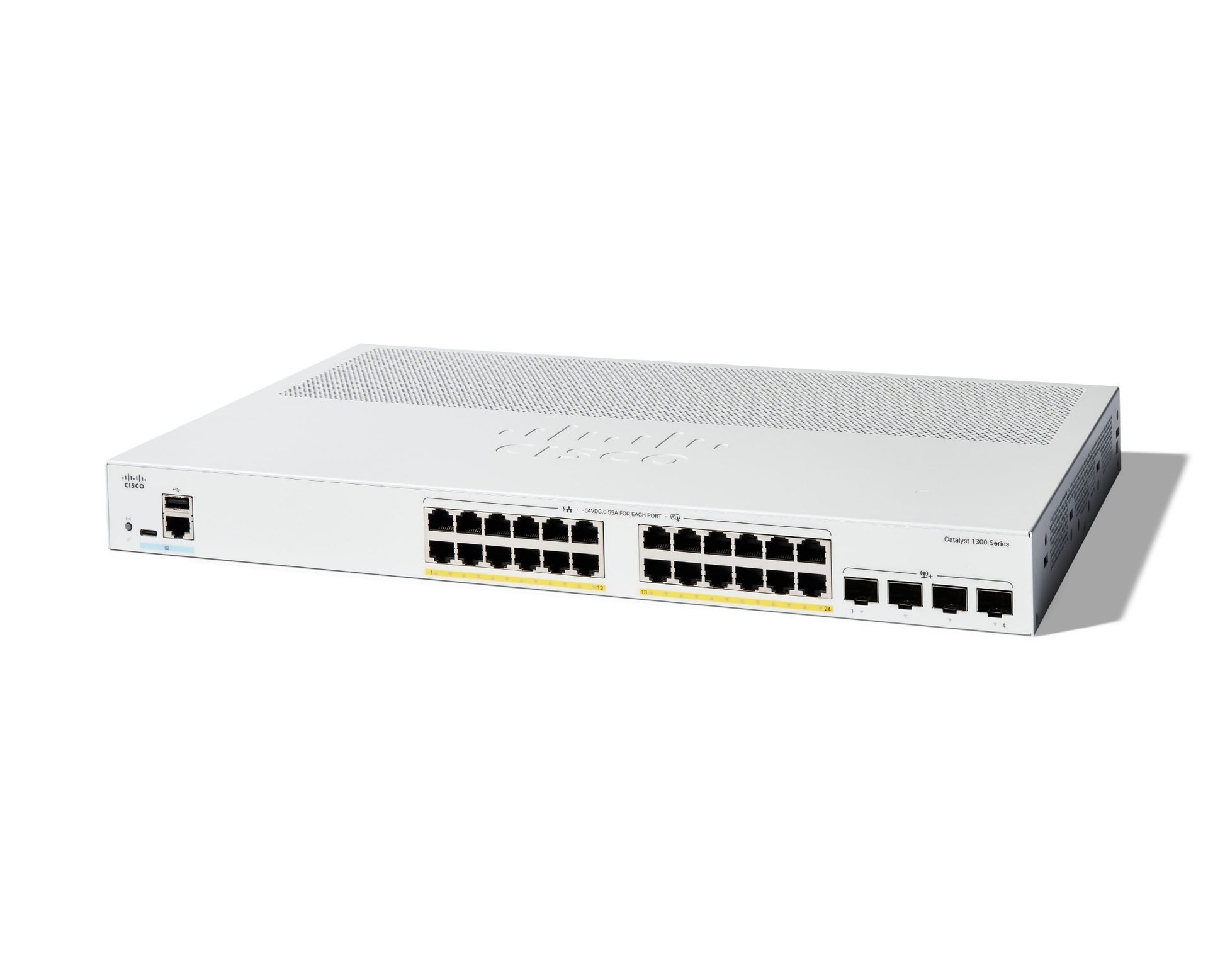

Cisco C1300-24P-4X | Catalyst 1300 24-Port Gigabit PoE+ Switch, 195W, 4x 10G SFP+

C1300-24P-4X

3 in stock

$1,980.43 inc. GST
$1,800.39 ex. GST
Sale Sold out
Shipping calculated at checkout.

Description

The Cisco Catalyst C1300-24P-4X is a fully managed Layer 2/3 Gigabit Ethernet switch designed for small and medium-sized businesses and enterprise branch offices. With 24 Gigabit PoE+ ports delivering 195W total power budget and 4x 10G SFP+ uplinks, it provides high-speed connectivity and integrated power delivery for wireless access points, IP phones, and surveillance cameras. Built on a customized Linux OS with an intuitive web dashboard and Cisco Business mobile app, it delivers enterprise-class security features, advanced routing capabilities, and fanless operation in a compact 1U rack-mountable design.

Features

Full Layer 2/3 switching with IPv4 and IPv6 static routing
- Advanced VLAN support with 802.1Q tagging for network segmentation
- Quality of Service (QoS) for traffic prioritization
- Access Control Lists (ACLs) for granular security policies
- IEEE 802.1X network access control for device authentication
- IP-MAC port binding to prevent unauthorized device connections
- IPv6 First Hop Security for protection against spoofing and man-in-the-middle attacks
- Link aggregation (LACP) for increased bandwidth and redundancy
- Storm control to prevent broadcast, multicast, and unicast traffic floods
- Spanning Tree Protocol (STP, RSTP, MSTP) for loop prevention
- IGMP snooping for efficient multicast traffic management
- DHCP snooping and Dynamic ARP Inspection for enhanced security
- Port mirroring for network monitoring and troubleshooting
- Energy Efficient Ethernet (IEEE 802.3az) to reduce power consumption on inactive links
- Fanless operation for noise-sensitive environments
- Hot-swappable redundant power supply support on select models

Warranty

All products sold by XS Network Tech include a 12-month warranty on both new and used items. Our in-house technical team thoroughly tests used hardware prior to sale to ensure enterprise-grade reliability.

All technical data should be verified on the manufacturer data sheets.

View full details

specs-tabs

Technical Specifications

FAQs

Datasheet

Manual

Technical Specifications

24x 10/100/1000 Ethernet ports with PoE+ (IEEE 802.3af/at)
- Total PoE power budget: 195W (up to 30W per port)
- 4x 10G SFP+ uplinks
- Switching capacity: 128 Gbps
- Forwarding rate: 95.23 Mpps
- Layer 2/3 managed switch with full routing capabilities
- IPv4 and IPv6 static routing support
- VLAN support (802.1Q), QoS, ACLs
- Front panel stacking support (up to 8 switches)
- Fanless design for silent operation
- 1U rack-mountable form factor
- Management: Web UI, CLI, Cisco Business Dashboard, Cisco Business Mobile App
- Security: IEEE 802.1X port security, IP-MAC port binding, IPv6 First Hop Security
- Energy efficient: IEEE 802.3az Energy Efficient Ethernet compliant
- 1x RJ-45 console port
- Limited lifetime hardware warranty

FAQs

Q: Does this switch require a subscription or licensing?
A: No, the C1300-24P-4X operates with a perpetual license model and requires no ongoing subscriptions to use its full Layer 2/3 features. It includes a limited lifetime hardware warranty with complimentary 1-year technical support.

Q: Can I stack multiple C1300-24P-4X switches together?
A: Yes, the switch supports front panel stacking technology that allows up to eight Catalyst 1300 Series switches to operate as a single virtual device with unified management control, simplifying administration and reducing operational overhead.

Q: What devices can be powered using the PoE+ budget?
A: The 195W PoE+ budget can power wireless access points (including Wi-Fi 6 APs), IP cameras, VoIP phones, and other IEEE 802.3af/at-compatible devices. Each port supports up to 30W, making it suitable for modern high-power devices.

Q: Is this switch suitable for fiber uplink connections?
A: Yes, the four 10G SFP+ uplink ports support both fiber and direct-attach copper (DAC) connections, providing flexible high-speed connectivity to distribution or core switches and eliminating bottlenecks in your network infrastructure.

Q: What management options are available?
A: The switch offers multiple management interfaces including local web UI, CLI via console port, Cisco Business Dashboard for centralized cloud-based management, and the Cisco Business Mobile App for remote monitoring and troubleshooting from smartphones or tablets.
