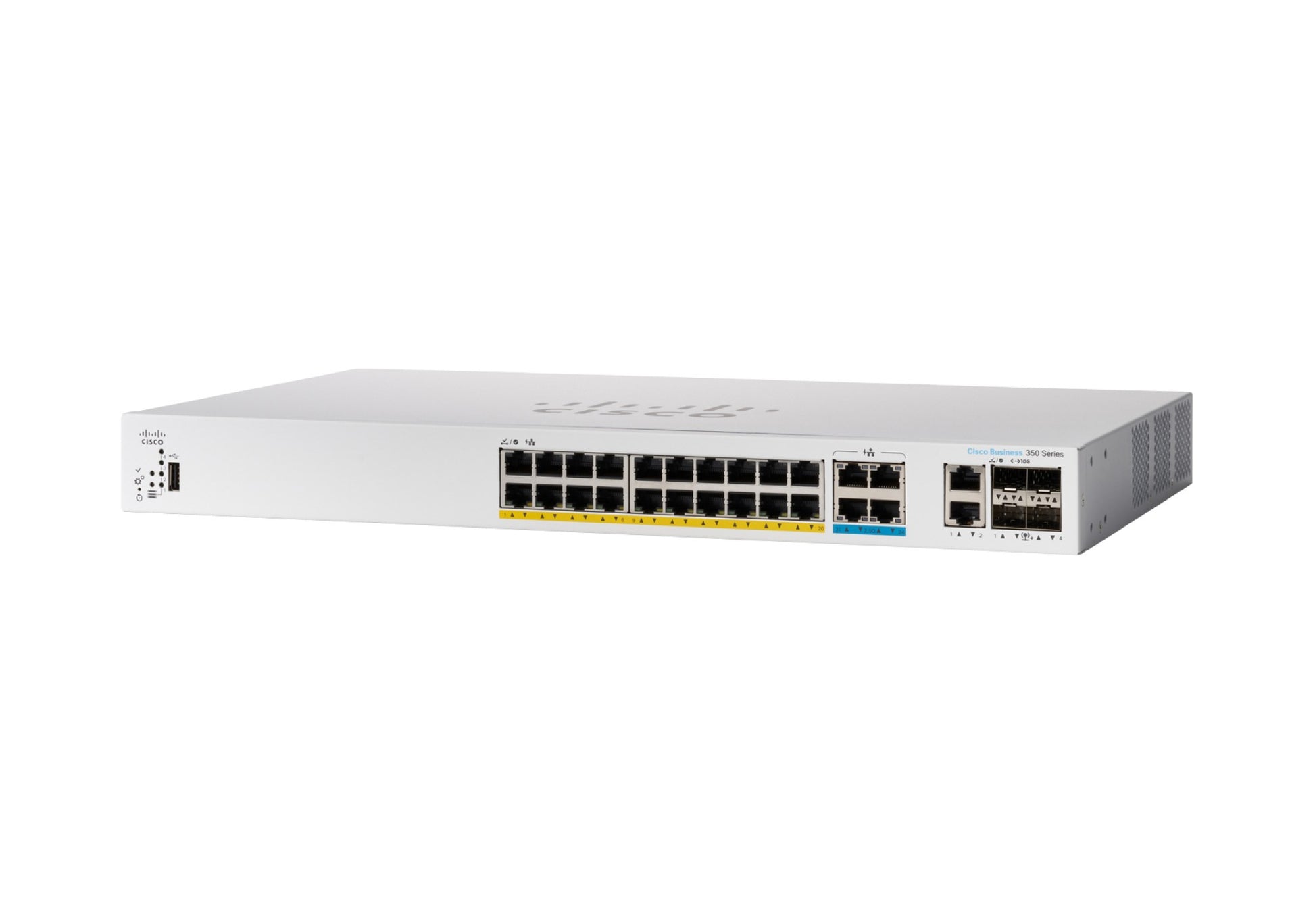

Cisco C1300-24MGP-4X | Catalyst 1300 24-Port Multi-Gig PoE+ Switch, 375W, 4x 10G SFP+

C1300-24MGP-4X

Stock Status: Enquire

$2,948.37 inc. GST
$2,680.34 ex. GST
Sale Sold out
Shipping calculated at checkout.

Description

The Cisco Catalyst 1300-24MGP-4X is a fully managed Layer 2/3 switch designed for small to medium-sized businesses and enterprise branch offices. Featuring 16 Gigabit Ethernet and 8 multi-gigabit 2.5G PoE+ ports with a 375W power budget, it provides robust connectivity for Wi-Fi 6 access points, IP phones, and surveillance cameras. Four 10G SFP+ uplinks deliver high-speed backbone connectivity, while front-panel stacking supports up to eight switches for simplified management and scalability.

Features

Full Layer 2 switching with advanced Layer 3 routing capabilities
- Multi-gigabit Ethernet: 8 x 2.5G ports optimized for Wi-Fi 6 and high-bandwidth devices
- Power over Ethernet Plus (PoE+): 375W budget across 24 ports supporting IEEE 802.3af/at
- 10G SFP+ uplinks: Four dedicated fiber uplink ports for high-speed backbone connectivity
- Front-panel stacking: Stack up to 8 switches with hardware failover and unified management
- Quality of Service (QoS): Prioritizes latency-sensitive traffic including VoIP and video
- Link Aggregation (LACP): Supports LAG for increased bandwidth and redundancy
- Energy efficiency: IEEE 802.3az compliant with programmable PoE scheduling
- Comprehensive security: 802.1X port-based authentication, ACLs, IPv6 First Hop Security, IP-MAC binding
- Intuitive management: Cisco Business Dashboard and mobile app with zero-touch provisioning
- Cisco DNA Center integration: Supports intent-based networking and automated policy enforcement
- Limited lifetime hardware warranty with complimentary technical support

Warranty

All products sold by XS Network Tech include a 12-month warranty on both new and used items. Our in-house technical team thoroughly tests used hardware prior to sale to ensure enterprise-grade reliability.

All technical data should be verified on the manufacturer data sheets.

View full details

specs-tabs

Technical Specifications

FAQs

Datasheet

Manual

Technical Specifications

Total Ports: 24 x PoE+ ports (16 x 10/100/1000 + 8 x 2.5G multi-gigabit) plus 4 x 10G SFP+ uplinks
- PoE Budget: 375W total (PoE/PoE+ IEEE 802.3af/at)
- Switching Capacity: 152 Gbps
- Forwarding Rate: 113.08 Mpps
- Layer Support: Full Layer 2 and Layer 3 capabilities
- MAC Address Table: 16,000 entries
- VLAN Support: Up to 4,094 VLANs
- Stacking: Front-panel stacking, up to 8 switches (Family 1 compatible)
- Processor: ARM dual-core 1.4 GHz CPU
- Management: CLI, web UI, SNMP, Cisco Business Dashboard, Cisco Business mobile app, Cisco DNA Center integration
- Security Features: 802.1X authentication, Dynamic ARP Inspection, IP Source Guard, ACLs, SSH, IP-MAC port binding, IPv6 First Hop Security
- Power: 100-240V AC, 50-60 Hz, internal universal power supply; 46.1W power consumption
- Energy Efficiency: IEEE 802.3az Energy Efficient Ethernet compliant
- Form Factor: 1U rack-mountable
- Operating Temperature: 0°C to 40°C (32°F to 104°F)
- Certifications: UL, CSA, CE, FCC Part 15 Class A

FAQs

Q: Does this switch require a subscription or license?
A: No, the C1300-24MGP-4X operates with a perpetual license and requires no subscription fees. It includes complimentary software updates and one year of technical support access.

Q: Can this switch support Wi-Fi 6 access points?
A: Yes, the eight 2.5G multi-gigabit PoE+ ports are specifically designed to support the higher bandwidth and power requirements of Wi-Fi 6 (802.11ax) access points, while the sixteen Gigabit PoE+ ports support legacy devices.

Q: What switches can be stacked with the C1300-24MGP-4X?
A: The C1300-24MGP-4X belongs to Stacking Family 1 and can be stacked with C1300-16P-4X, C1300-24T-4X, C1300-24P-4X, C1300-24FP-4X, C1300-48T-4X, C1300-48P-4X, C1300-48FP-4X, C1300-8MGP-2X, and C1300-48MGP-4X. Up to 8 switches and 200 ports can be managed as a single system.

Q: What Layer 3 routing features does this switch support?
A: The switch supports static routing, inter-VLAN routing, and advanced IP routing protocols. It is fully managed with comprehensive Layer 3 capabilities suitable for enterprise campus and branch deployments.

Q: Is the C1300-24MGP-4X suitable for deployment outside traditional wiring closets?
A: Yes, the switch features a compact, elegant design and can be deployed in open-plan offices, retail stores, and classrooms. Select models in the Catalyst 1300 series are fanless, though this model uses low-noise cooling for optimal thermal management.

Datasheet

This product has a detailed PDF datasheet available. Open PDF datasheet in a new tab .

Your browser can’t display the embedded PDF. Click here to open it in a new tab.

Manual

This product has a detailed PDF manual available. Open PDF manual in a new tab .

Your browser can’t display the embedded PDF. Click here to open it in a new tab.
