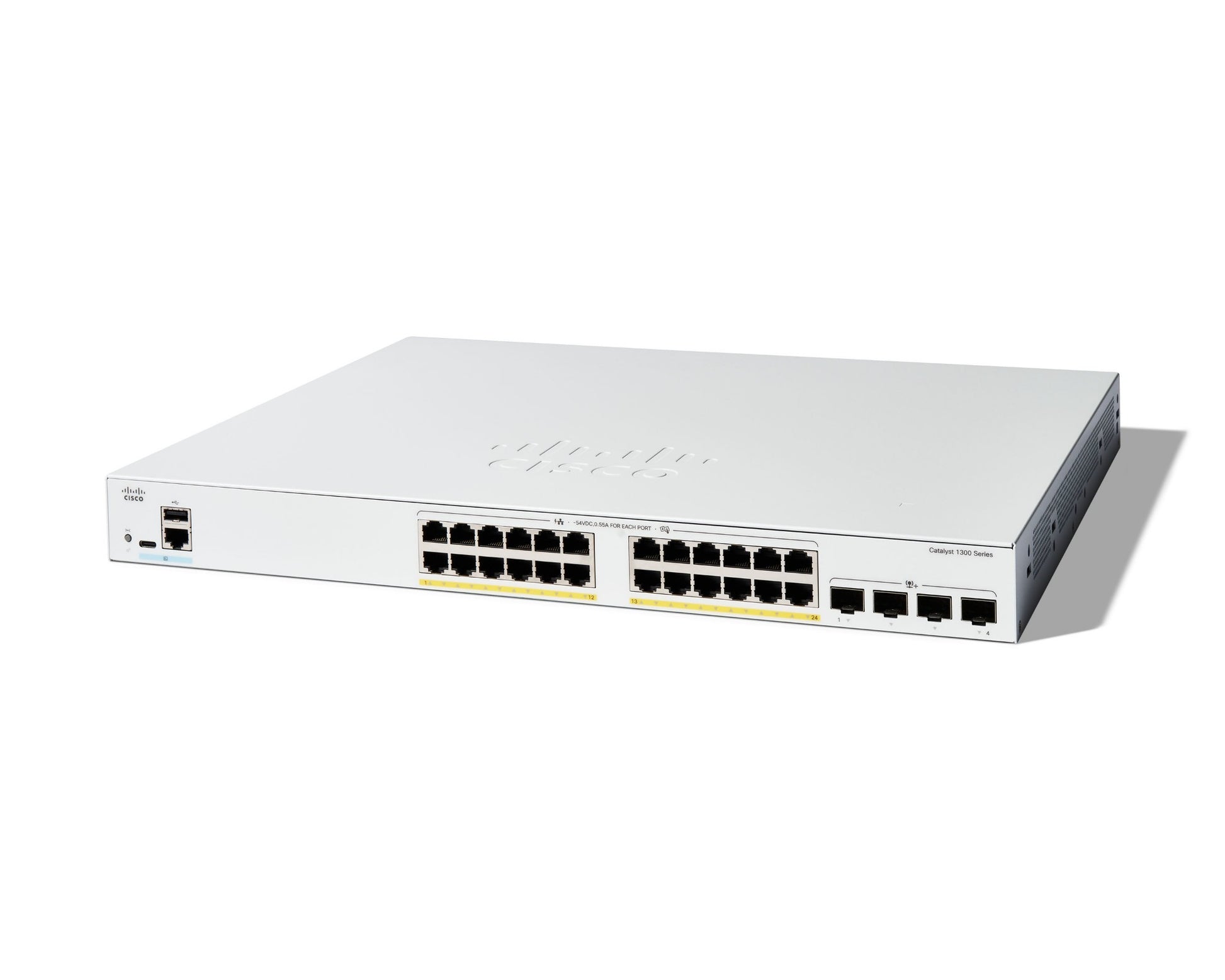

• Cisco C1300-24FP-4X white switch with 24 PoE ports and 4x 10G uplinks
1 1

Cisco

Cisco C1300-24FP-4X | Catalyst 1300 24-Port Gigabit PoE+ Switch, 375W, 4x 10G SFP+

C1300-24FP-4X

Stock Status: Enquire

$2,769.17 inc. GST
$2,517.43 ex. GST
Sale Sold out
Shipping calculated at checkout.

Description

The Cisco Catalyst C1300-24FP-4X is a managed Layer 3 switch designed for small to medium-sized businesses and enterprise branch offices. It delivers 24 Gigabit Ethernet PoE+ ports with a 375W power budget to power IP phones, wireless access points, and security cameras, plus four 10G SFP+ uplinks for high-speed fiber connectivity. Advanced features include Layer 3 routing, comprehensive security with IEEE 802.1X and port security, front-panel stacking up to 8 switches, and intuitive management through the Cisco Business Dashboard.

Features

Layer 2 and Layer 3 switching with dynamic routing support
- Front-panel stacking up to 8 switches for simplified management
- Advanced security: IEEE 802.1X, port security, DHCP snooping, Dynamic ARP Inspection, IP Source Guard
- Quality of Service (QoS) with 8 priority queues and DSCP-based classification
- VLAN support: up to 4093 VLAN IDs with Private VLAN and Voice VLAN
- Spanning Tree Protocol (STP, RSTP, MSTP) with STP Root Guard and BPDU Guard
- Link aggregation: up to 8 groups with 8 ports per group
- IPv4 and IPv6 dual-stack support with up to 990 static IPv4 routes
- Energy Efficient Ethernet (EEE) for reduced power consumption
- Dual firmware images for minimal downtime during upgrades
- Multicast support: IGMP snooping, IGMP querier, MLD snooping
- Port mirroring and sFlow for traffic monitoring
- Broadcast, multicast, and unicast storm control
- Web-based authentication and MAC address authentication
- PoE scheduling for automated power management
- Zero-Touch Deployment for simplified provisioning

Warranty

All products sold by XS Network Tech include a 12-month warranty on both new and used items. Our in-house technical team thoroughly tests used hardware prior to sale to ensure enterprise-grade reliability.

All technical data should be verified on the manufacturer data sheets.

View full details

specs-tabs

Technical Specifications

FAQs

Datasheet

Manual

Technical Specifications

24x 10/100/1000 Mbps RJ-45 PoE+ ports (IEEE 802.3af/at, up to 30W per port)
- 4x 10G SFP+ uplink ports
- PoE power budget: 375W total
- Switching capacity: 128 Gbps
- Forwarding rate: 95.23 Mpps
- Memory: 1 GB DDR4
- Flash: 512 MB
- Packet buffer: 1.5 MB shared
- MAC address table: 16,000 entries
- Processor: ARM dual-core up to 1.4 GHz
- Front-panel stacking: up to 8 switches
- Jumbo frame support: up to 9000 bytes
- Management: Web UI, CLI, SNMP, Cisco Business Dashboard
- Operating temperature: -5°C to 50°C
- Power supply: Internal 100-240V AC, 50/60 Hz
- Dimensions: 445 x 350 x 44 mm
- Weight: 4.92 kg
- Cooling: 1 fan, approximately 39 dBA at 25°C
- Certifications: IEEE 802.3af, 802.3at, 802.1X

FAQs

Q: What is the total PoE power budget of the C1300-24FP-4X?
A: The C1300-24FP-4X provides a 375W total PoE power budget across all 24 PoE+ ports, supporting up to 30W per port for powering devices like IP phones, wireless access points, and security cameras.

Q: Can this switch be stacked with other Catalyst 1300 models?
A: Yes, the C1300-24FP-4X supports front-panel stacking of up to 8 switches within Stacking Family 1, which includes models like C1300-16P-4X, C1300-24P-4X, C1300-48P-4X, and C1300-48FP-4X. The stack can be managed as a single logical unit with a single IP address.

Q: Does the C1300-24FP-4X support Layer 3 routing?
A: Yes, this is a fully managed Layer 3 switch supporting advanced routing protocols including static routing, RIP v2, policy-based routing, and dynamic routing capabilities for segmenting networks and inter-VLAN routing.

Q: What management options are available for this switch?
A: The C1300-24FP-4X can be managed through multiple methods including the Cisco Business Dashboard and mobile app, web-based UI, command-line interface (CLI) via console or SSH, and SNMP for integration with network management systems.

Q: What uplink speeds are supported on the SFP+ ports?
A: The four SFP+ ports support 10 Gigabit Ethernet connectivity using compatible 10G SFP+ transceivers, providing high-speed fiber uplinks for aggregation or backbone connectivity.

Datasheet

This product has a detailed PDF datasheet available. Open PDF datasheet in a new tab .

Your browser can’t display the embedded PDF. Click here to open it in a new tab.

Manual

This product has a detailed PDF manual available. Open PDF manual in a new tab .

Your browser can’t display the embedded PDF. Click here to open it in a new tab.
