Cisco

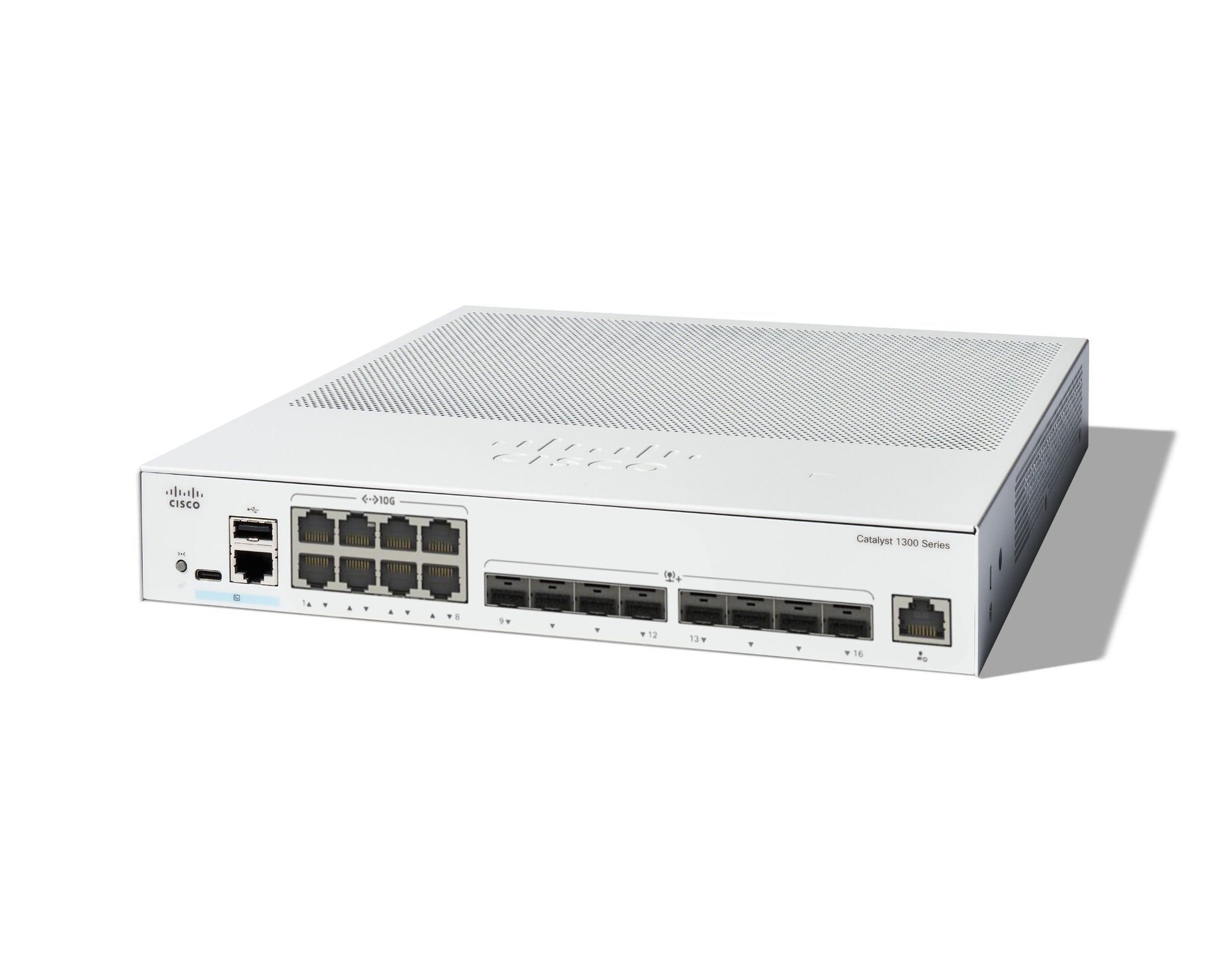

Cisco C1300-16XTS | Catalyst 1300 16-Port 10G Switch, 8x 10G RJ45 + 8x 10G SFP+

C1300-16XTS

Stock Status: Enquire

$4,686.03 inc. GST
$4,260.03 ex. GST
Sale Sold out
Shipping calculated at checkout.

Description

The Cisco C1300-16XTS Catalyst 1300 is a fully managed Layer 3 switch designed for small to medium-sized businesses and enterprise branch offices. It delivers 16 ports of 10 Gigabit connectivity with 8 copper 10GBASE-T RJ45 ports and 8 SFP+ fiber ports, providing flexible deployment options for high-speed access and aggregation. With a 320 Gbps switching capacity, hardware stacking support for up to 8 units, and comprehensive security features, this compact switch is ideal for environments requiring high-performance networking outside traditional wiring closets.

Features

Layer 3 switching with static routing, RIPv2, and policy-based routing
- Hardware stacking for up to 8 switches managed as a single unit with hardware failover
- Front-panel stacking with ring and chain topologies
- Advanced security: IEEE 802.1X, port security, web-based authentication
- Dynamic ARP inspection, IP Source Guard, DHCP snooping (IPMB)
- IPv6 First Hop Security: ND inspection, RA guard, DHCPv6 guard
- Dual image support for zero-downtime software upgrades
- VLAN support with Q-in-Q, selective Q-in-Q, and VLAN translation
- Quality of Service (QoS): 8 priority queues, Voice VLAN, VSDP
- IGMP v1/v2/v3 snooping with support for 2000 multicast groups
- Spanning Tree Protocol: STP, RSTP, MSTP (8 instances)
- Jumbo frame support up to 9000 bytes
- Loopback detection independent of STP
- Energy-efficient Ethernet (IEEE 802.3az)
- Compact, fanless design suitable for deployment outside wiring closets

Warranty

All products sold by XS Network Tech include a 12-month warranty on both new and used items. Our in-house technical team thoroughly tests used hardware prior to sale to ensure enterprise-grade reliability.

All technical data should be verified on the manufacturer data sheets.

View full details

specs-tabs

Technical Specifications

FAQs

Datasheet

Manual

Technical Specifications

Total Ports: 16 (8x 10GBASE-T RJ45 + 8x 10G SFP+)
- Additional: 1x Gigabit Ethernet out-of-band management port
- Switching Capacity: 320 Gbps
- Forwarding Rate: 238.1 Mpps (64-byte packets)
- Layer 3 Routing: Static IP routing, RIPv2, policy-based routing
- VLAN Support: 4093 VLAN IDs
- Hardware Stacking: Up to 8 switches (Family 2: C1300-12XT-2X, C1300-12XS, C1300-16XTS, C1300-24XS, C1300-24XT, C1300-24XTS)
- Management: Cisco Business Dashboard, web UI, CLI, SNMP, SSH, Telnet, HTTPS
- Packet Buffer: 1.5 MB
- Link Aggregation: 8 groups, 8 ports per group (LACP)
- Operating Temperature: -5°C to 50°C
- Power: 100-240V AC, 50-60 Hz, internal universal power supply
- Power Consumption: 50.6W operational
- Acoustic Noise: 28.7 dBA at 25°C
- MTBF: 1,201,527 hours at 25°C
- Console Ports: RJ45 console + USB Type-C
- Certifications: UL 62368, CSA 22.2, CE, FCC Part 15 Class A

FAQs

Q: Does the C1300-16XTS support Power over Ethernet?
A: No, the C1300-16XTS is a non-PoE model. For PoE requirements, consider other Catalyst 1300 Series models such as the C1300-24P-4X or C1300-48FP-4X.

Q: Can the C1300-16XTS be stacked with other Catalyst 1300 switches?
A: Yes, the C1300-16XTS supports hardware stacking with up to 8 switches in Family 2, which includes models C1300-12XT-2X, C1300-12XS, C1300-16XTS, C1300-24XS, C1300-24XT, and C1300-24XTS. Cross-stacking between Family 1 and Family 2 is not supported.

Q: What management options are available for this switch?
A: The switch can be managed via Cisco Business Dashboard, Cisco Business mobile app, intuitive web UI, full CLI, SNMP, SSH, HTTPS, Telnet, and SYSLOG. It supports embedded probe for Cisco Business Dashboard, eliminating the need for separate hardware.

Q: What Layer 3 routing protocols does the C1300-16XTS support?
A: The switch supports static IP routing, RIPv2, policy-based routing, and up to 990 static IPv4 routes with 128 IPv4 interfaces. It also includes comprehensive IPv6 support with features like IPv6 First Hop Security.

Q: Is a rack mount kit included with the C1300-16XTS?
A: No, the rack mount kit is not included with this model and must be purchased separately. Only 24-port and 48-port Catalyst 1300 models include 19-inch mounting brackets as standard.

Datasheet

This product has a detailed PDF datasheet available. Open PDF datasheet in a new tab .

Your browser can’t display the embedded PDF. Click here to open it in a new tab.

Manual

This product has a detailed PDF manual available. Open PDF manual in a new tab .

Your browser can’t display the embedded PDF. Click here to open it in a new tab.
