Cisco C1300-16P-2G | Catalyst 1300 16-Port Gigabit PoE+ Switch, 120W, 2x 1G SFP

SKU:C1300-16P-2G

Stock Status: Enquire

$1,126.81 inc. GST
$1,024.37 ex. GST
Sale Sold out
Shipping calculated at checkout.

Description

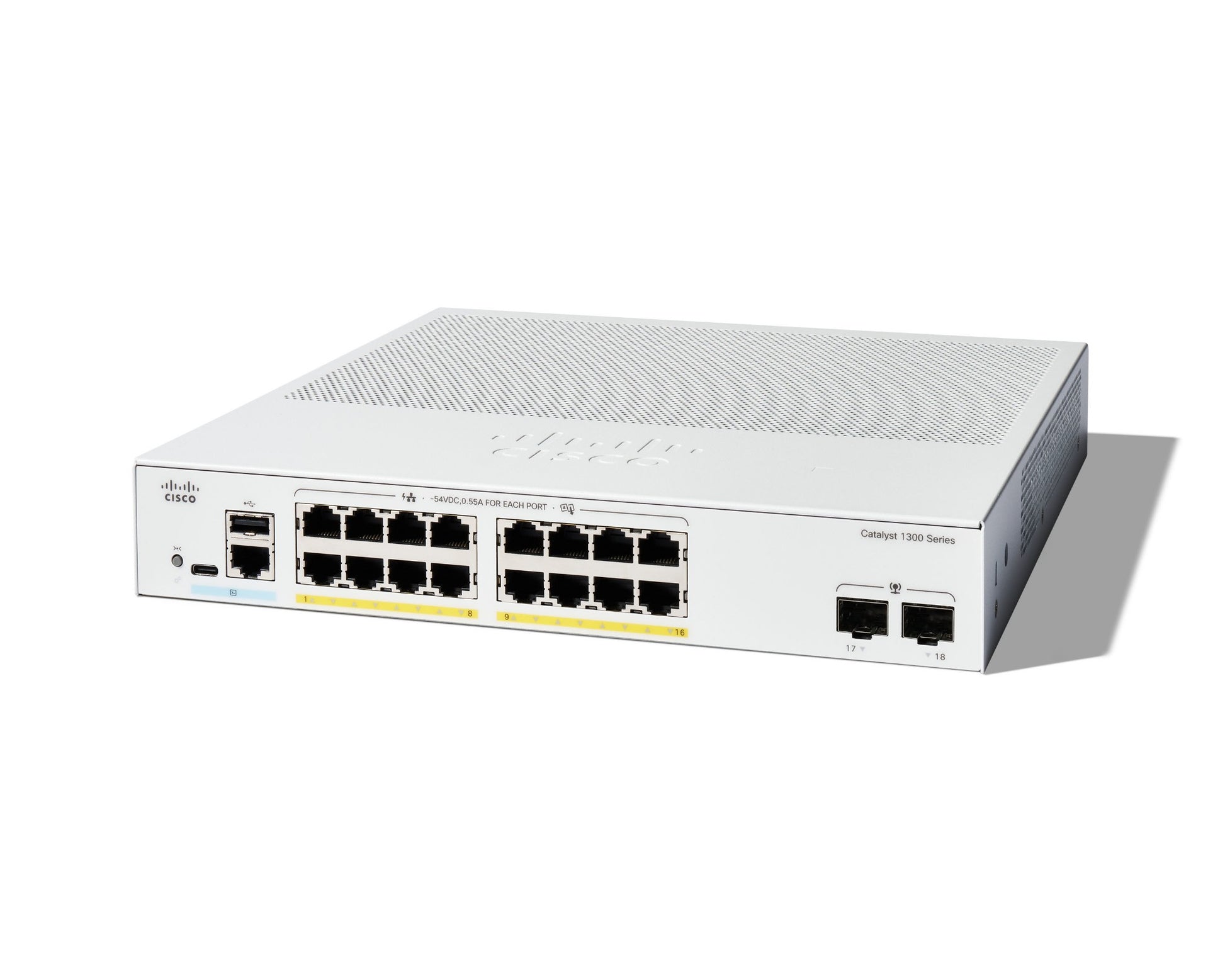

The Cisco Catalyst C1300-16P-2G is a fanless Layer 3 managed switch designed for small business and enterprise branch networks. Delivering 16 Gigabit PoE+ ports with a 120W power budget and 2 SFP uplinks, this compact switch provides reliable connectivity for IP phones, wireless access points, and surveillance cameras. Managed through Cisco Business Dashboard, web GUI, or CLI, it combines advanced Layer 3 routing, robust security features, and energy-efficient operation ideal for deployment in offices, retail, and educational environments.

Features

Full Layer 2 and Layer 3 switching with static routing and inter-VLAN routing
- Advanced security: IEEE 802.1X authentication, port security, IP-MAC binding, DHCP snooping, Dynamic ARP inspection, IP Source Guard
- IPv6 First Hop Security for protection against address spoofing and man-in-the-middle attacks
- Quality of Service (QoS) with traffic prioritization for voice and video applications
- VLAN support for network segmentation and improved security
- Link Aggregation Control Protocol (LACP) for increased bandwidth and redundancy
- Dual firmware images for zero-downtime software upgrades
- Energy Efficient Ethernet (IEEE 802.3az) reduces power consumption up to 58% vs previous generation
- Auto MDI/MDIX on all copper ports eliminates need for crossover cables
- Jumbo frame support (up to 9KB) for improved performance with large data transfers
- Comprehensive diagnostics and monitoring via embedded probe and Cisco Business Dashboard
- Customized Linux OS for stability and advanced networking capabilities

Warranty

All products sold by XS Network Tech include a 12-month warranty on both new and used items. Our in-house technical team thoroughly tests used hardware prior to sale to ensure enterprise-grade reliability.

All technical data should be verified on the manufacturer data sheets.

View full details

specs-tabs

Collapsible content

Technical Specifications

FAQs

Datasheet

Manual

Technical Specifications

16x 10/100/1000 PoE+ RJ45 ports (IEEE 802.3af/at)
- 2x 1G SFP uplink ports
- Total PoE budget: 120W (up to 30W per port)
- Switching capacity: 36 Gbps
- Forwarding rate: 26.78 Mpps
- Layer 3 managed switch with full routing capabilities
- Management: Cisco Business Dashboard, web GUI, CLI, SNMP, USB Type-C console
- Front panel stacking: up to 8 switches with single IP management
- Fanless design for silent operation
- Internal power supply, rack-mountable (1U)
- Energy efficient: IEEE 802.3az compliant
- Limited lifetime hardware warranty with 1-year technical support

FAQs

Q: What devices can this switch power with PoE+?
A: The C1300-16P-2G provides 120W total PoE+ budget across 16 ports, with up to 30W per port. It can power IP phones, wireless access points, IP cameras, and other IEEE 802.3af/at compliant devices, making it ideal for unified communications and security deployments.

Q: Does this switch require licenses to operate?
A: No, the Catalyst 1300 Series requires no subscriptions or licenses for full functionality. It includes all Layer 2 and Layer 3 features out of the box, along with software updates at no additional cost and complimentary 1-year support through Cisco Small Business Support Center.

Q: Can I stack multiple C1300-16P-2G switches together?
A: Yes, the switch supports front panel stacking for up to 8 units, allowing you to manage, configure, and troubleshoot the entire stack as a single logical device with one IP address. This simplifies management and reduces operational complexity for growing networks.

Q: What management options are available?
A: The switch offers flexible management through Cisco Business Dashboard (cloud or on-premises), Cisco Business mobile app, local web interface, CLI via USB Type-C console, and SNMP. The intuitive dashboard provides step-by-step setup wizards requiring no advanced IT expertise.

Q: Is this switch suitable for deployment outside the wiring closet?
A: Yes, the C1300-16P-2G features a fanless, compact design for silent operation, making it ideal for deployment in open-plan offices, classrooms, retail stores, and other noise-sensitive environments where traditional switches would be disruptive.
