• Cisco C1300-16FP-2G Catalyst 9100 switch with 16x1G PoE+ ports and 2xSFP uplinks
1 1

Cisco

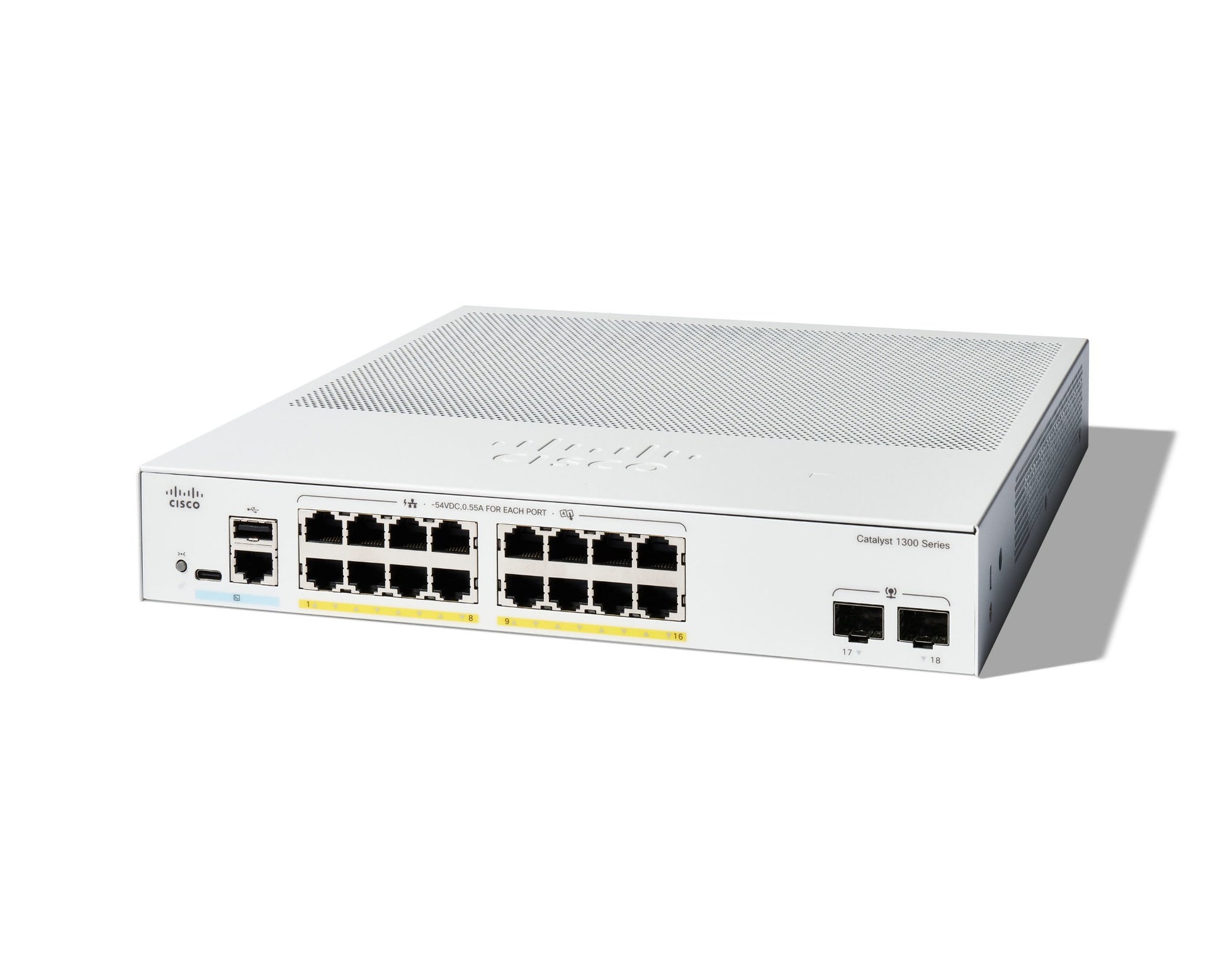

Cisco C1300-16FP-2G | Catalyst 1300 16-Port Gigabit PoE+ Switch, 240W, 2x 1G SFP

C1300-16FP-2G

7 in stock

$1,598.30 inc. GST
$1,453.00 ex. GST
Sale Sold out
Shipping calculated at checkout.

Description

The Cisco Catalyst 1300-16FP-2G is a Layer 3 managed switch delivering 16 Gigabit Ethernet PoE+ ports with a 240W power budget and 2x 1G SFP uplinks. Designed for small and medium-sized businesses and branch offices, this fanless switch offers 36 Gbps switching capacity and advanced security features including ACL, DHCP snooping, and port security. Ideal for powering IP phones, wireless access points, and surveillance cameras with silent operation and simple management via CLI, Web GUI, or Cisco Business Dashboard.

Features

Layer 3 routing with static routing and RIP-2 dynamic routing protocol
- Advanced VLAN features including private VLAN, voice VLAN, Q-in-Q tunneling, and multicast VLAN registration (MVR)
- Spanning Tree Protocol: IEEE 802.1d STP, 802.1w RSTP, 802.1s MSTP, PVST+, and Rapid PVST+
- Link aggregation with LACP support (8 groups, 8 ports per group)
- Comprehensive QoS with 8 priority queues, DSCP-based CoS, weighted round robin (WRR), and DiffServ support
- IGMP v2/v3 snooping, IGMP querier, IGMP proxy for efficient multicast traffic management
- MLD v1/v2 snooping and MLD proxy for IPv6 multicast
- Security: 802.1X authentication, port security, DHCP snooping, Dynamic ARP inspection (DAI), IP source guard, ACL support (1024 rules)
- Storm control (broadcast, multicast, unicast, unknown)
- Loopback detection, BPDU guard, STP root guard, STP loop guard, UDLD
- Energy Efficient Ethernet (EEE) and eco-friendly button for reduced power consumption
- PoE scheduling for automated power management
- Zero-touch deployment for simplified installation
- sFlow for network traffic monitoring and analysis
- IPv4 and IPv6 dual stack support
- DHCP server, DHCP relay, DHCP client, and DHCPv6 guard
- Web authentication and guest VLAN for secure visitor access
- Router Advertisement (RA) guard for IPv6 security
- Fanless design for silent operation in open office environments

Warranty

All products sold by XS Network Tech include a 12-month warranty on both new and used items. Our in-house technical team thoroughly tests used hardware prior to sale to ensure enterprise-grade reliability.

All technical data should be verified on the manufacturer data sheets.

View full details

specs-tabs

Technical Specifications

FAQs

Datasheet

Manual

Technical Specifications

16x 10/100/1000 Gigabit Ethernet PoE+ ports (802.3at)
- 2x 1G SFP uplink ports
- PoE power budget: 240W (full PoE on all 16 ports)
- Switching capacity: 36 Gbps
- Forwarding rate: 26.78 Mpps (64-byte packets)
- Layer 3 managed switch with static routing and dynamic routing protocols (RIP-2)
- VLAN support: 4093 VLAN IDs, RPVST+ instances: 126, MSTP instances: 8
- Link aggregation: 8 groups, 8 ports per group (LACP support)
- ACL rules: 1024
- IGMP multicast groups: 2000
- IPv4 static routes: up to 990, IPv4 interfaces: 128
- Packet buffer: 1.5 MB
- Priority queues: 8
- Fanless design for silent operation
- Internal universal power supply
- Rack-mountable (1U form factor, rack mount kit not included)
- Management: CLI, Web GUI, Cisco Business Dashboard, Cisco Business mobile app, SNMP v2c/v3, RMON, SSH, HTTPS
- Security features: Port security, DHCP snooping, IP source guard, Dynamic ARP inspection, ACL support, DoS attack prevention, 802.1X authentication, MAC address authentication

FAQs

Q: Does the C1300-16FP-2G require a software license to operate?
A: No, the Cisco Catalyst 1300-16FP-2G does not require any software licenses or subscriptions to access full Layer 2 and Layer 3 features. All capabilities are available out of the box.

Q: What is the difference between the C1300-16P-2G and C1300-16FP-2G?
A: The primary difference is the PoE power budget. The C1300-16FP-2G offers 240W of PoE power (full PoE across all 16 ports), while the C1300-16P-2G provides 120W. Both have the same port count and uplink configuration.

Q: Can this switch power Wi-Fi 6 access points?
A: Yes, with 240W total PoE+ (802.3at) budget, the C1300-16FP-2G can power multiple Wi-Fi 6 access points, IP phones, and surveillance cameras simultaneously. Each port supports up to 30W for PoE+ devices.

Q: Is a rack mount kit included with the switch?
A: No, rack mounting hardware is not included and must be purchased separately if rack installation is required.

Q: Does this switch support stacking?
A: No, the Catalyst 1300 Series does not support physical stacking. However, it can be centrally managed alongside other switches through the Cisco Business Dashboard for simplified multi-switch administration.

Datasheet

This product has a detailed PDF datasheet available. Open PDF datasheet in a new tab .

Your browser can’t display the embedded PDF. Click here to open it in a new tab.

Manual

This product has a detailed PDF manual available. Open PDF manual in a new tab .

Your browser can’t display the embedded PDF. Click here to open it in a new tab.
