Cisco

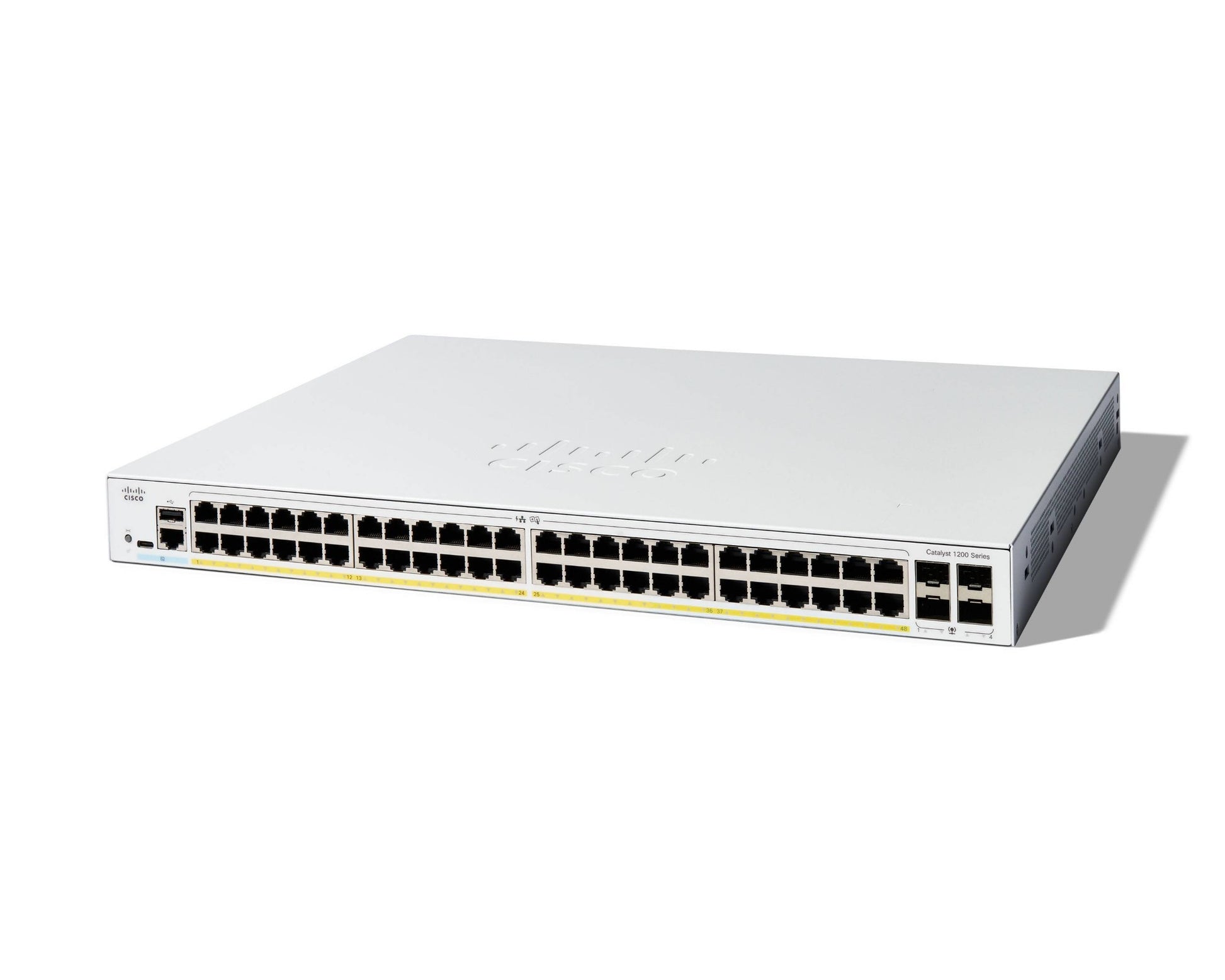

Cisco C1200-48P-4G | Catalyst 1200 48-Port Gigabit PoE+ Switch, 375W, 4x 1G SFP

C1200-48P-4G

Stock Status: Enquire

$1,802.63 AUD
$1,802.63 AUD
$1,802.63 AUD
Sale Sold out
Taxes included. Shipping calculated at checkout.

Description

The Cisco Catalyst 1200 C1200-48P-4G is an affordable smart switch designed for small and medium-sized businesses that need enterprise-grade features without the complexity of fully managed switches. With 48 Gigabit Ethernet PoE+ ports delivering up to 375W total power budget, this switch easily powers IP phones, wireless access points, and security cameras. Four Gigabit SFP uplink ports provide flexible fiber connectivity, while Layer 3 static routing enables efficient inter-VLAN communication and network segmentation for growing business networks.

Features

Layer 2 switching with Layer 3 static routing (IPv4/IPv6)
- Up to 256 VLANs for network segmentation
- IEEE 802.1Q VLAN tagging and private VLANs
- Quality of Service (QoS) with 802.1p CoS and DSCP for traffic prioritization
- IEEE 802.1X network access control for port-based authentication
- Access Control Lists (ACLs) for security policy enforcement
- DHCP server and DHCP snooping for IP address management and security
- IP Source Guard and Dynamic ARP Inspection (DAI)
- Port security and MAC address filtering
- Spanning Tree Protocol (STP, RSTP, MSTP) for loop prevention
- Link Aggregation (802.3ad LACP) for increased bandwidth and redundancy
- IGMP snooping for efficient multicast traffic management
- Storm control for broadcast, multicast, and unicast traffic
- Energy Efficient Ethernet (IEEE 802.3az) to reduce power consumption
- Cisco Network Plug and Play for zero-touch deployment
- Embedded onboard packet capture for troubleshooting
- Syslog, SNMP v1/v2c/v3, and RMON for monitoring
- Cisco Business Dashboard with mobile app for simplified management
- Jumbo frame support (up to 9KB) for improved performance

Warranty

All products sold by XS Network Tech include a 12-month warranty on both new and used items. Our in-house technical team thoroughly tests used hardware prior to sale to ensure enterprise-grade reliability.

All technical data should be verified on the manufacturer data sheets.

View full details

specs-tabs

Technical Specifications

FAQs

Datasheet

Manual

Technical Specifications

48 x 10/100/1000 Gigabit Ethernet PoE+ ports
- 4 x 1 Gigabit SFP uplink ports
- PoE+ standard: IEEE 802.3at (up to 30W per port), 375W total power budget
- Switching capacity: 104 Gbps
- Forwarding rate: 77.38 Mpps (wire-speed, non-blocking)
- MAC address table: 8,000 entries
- VLAN support: Up to 256 VLANs
- Layer 3 static routing (IPv4/IPv6)
- Management: Cisco Business Dashboard, mobile app, web UI, CLI, SNMP
- Power supply: Internal universal (100-240V AC, 50-60Hz)
- Operating temperature: -5°C to 50°C
- Cooling: 1 x internal fan (37.3 dBA at 25°C)
- Dimensions: 1U rackmountable
- MTBF: 856,329 hours at 25°C

FAQs

Q: Does the C1200-48P-4G require a license to operate?
A: No, the Catalyst 1200 Series operates without requiring separate software licenses. All features including Layer 3 static routing, VLANs, QoS, and security capabilities are included out of the box, making it a cost-effective smart switch solution.

Q: Can this switch support wireless access points and IP cameras?
A: Yes, the C1200-48P-4G is ideal for powering wireless access points, IP cameras, and IP phones. With 375W PoE+ budget and up to 30W per port, it supports 802.11ac/ax access points, PTZ cameras, video phones, and other PoE devices over a single Ethernet cable.

Q: What is the difference between the C1200-48P-4G and C1200-48P-4X?
A: The main difference is the uplink ports. The C1200-48P-4G has 4 x 1 Gigabit SFP uplinks with 104 Gbps switching capacity, while the C1200-48P-4X features 4 x 10 Gigabit SFP+ uplinks with 176 Gbps switching capacity for higher-bandwidth aggregation needs.

Q: How is the C1200-48P-4G managed and configured?
A: The switch offers multiple management options including the Cisco Business Dashboard (cloud/on-premises), Cisco Business mobile app, embedded web UI, CLI, and SNMP. The onboarding wizard and Cisco Network Plug and Play solution simplify initial setup and provisioning.

Q: What Layer 3 capabilities does this switch provide?
A: The C1200-48P-4G supports IPv4 and IPv6 static routing, allowing you to route traffic between VLANs without requiring an external router. This enables network segmentation for different workgroups while maintaining application performance and simplifying network architecture.

Datasheet

This product has a detailed PDF datasheet available. Open PDF datasheet in a new tab .

Your browser can’t display the embedded PDF. Click here to open it in a new tab.

Manual

This product has a detailed PDF manual available. Open PDF manual in a new tab .

Your browser can’t display the embedded PDF. Click here to open it in a new tab.
