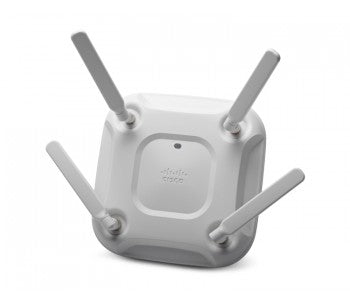

• Cisco AIR-CAP3702P-Z-K9 white Wi-Fi 5 access point with four antennas
1 1

Cisco

Cisco AIR-CAP3702P-Z-K9 | Aironet 3700p Wi-Fi 5 Access Point, External Antennas, Z Domain

AIR-CAP3702P-Z-K9

Request Quote
Sale Sold out
Shipping calculated at checkout.

Stock Status: Enquire

20-min response

Need a quote or bulk pricing? Answered within 20 minutes, Sydney business hours.

Description

The Aironet 3700p is a controller-based, dual-band 802.11ac Wave 1 access point built for high-density indoor environments such as lecture halls, stadiums and auditoriums. It also suits factories and warehouses that need directional coverage. The 3700p variant is designed for professionally installed, narrow-beamwidth, high-gain external antennas.

The access point uses 4x4 MIMO with three spatial streams to deliver PHY rates of up to 1.3 Gbps on 5 GHz with 80 MHz channels, and up to 450 Mbps on 802.11n. It has one 10/100/1000BASE-T RJ-45 uplink and an RJ-45 console port, with 512 MB DRAM and 64 MB flash. Maximum transmit power is 23 dBm with four antennas. This SKU is built for the Z regulatory domain. The rugged metal housing is rated for -20 to 50 C operation and is UL 2043 plenum rated.

This is a controller-based access point and requires a compatible Cisco wireless LAN controller running AireOS release 7.6 or later, with AP licensing on the controller. It is compatible with Cisco 2500, 5500, Flex 7500 and 8500 Series WLCs, Virtual WLC, WiSM2, the ISR G2 controller module, the Cisco 5760 WLC, and Catalyst 3850 and 3650 switches. External antennas are sold separately and are certified for gains up to 6 dBi.

Enquire with XS Network Tech for new or used pricing and availability.

Features

- 802.11ac Wave 1 with 4x4 MIMO and three spatial streams for up to 1.3 Gbps
- Cisco CleanAir technology with 80 MHz channel support for spectrum intelligence
- ClientLink 3.0 beamforming to improve downlink performance for legacy and 802.11ac clients
- Cross AP Noise Reduction and Optimised AP Roaming for high-density performance
- Modular design supporting the Wireless Security Module (wIPS) and other modules
- Rugged metal housing with extended temperature range and UL 2043 plenum rating
- Rogue AP detection, management frame protection and non-Wi-Fi interference detection
- Controller-based deployment with centralised management

Warranty

All products sold by XS Network Tech include a 12-month warranty on both new and used items. Our in-house technical team thoroughly tests used hardware prior to sale to ensure enterprise-grade reliability.

All technical data should be verified on the manufacturer data sheets.

View full details

specs-tabs

Technical Specifications

FAQs

Technical Specifications

- Wireless standard: 802.11a/b/g/n/ac Wave 1, dual-band 2.4 GHz and 5 GHz
- MIMO: 4x4 with 3 spatial streams
- Maximum PHY rate: up to 1.3 Gbps on 5 GHz (80 MHz), up to 450 Mbps on 802.11n
- Maximum transmit power: 23 dBm with 4 antennas on both bands
- Antennas: external, professionally installed, narrow-beamwidth high-gain (sold separately)
- Antenna gain certification: up to 6 dBi on 2.4 GHz and 5 GHz
- Uplink: 1 x 10/100/1000BASE-T (RJ-45)
- Console: RJ-45 management console port
- Memory: 512 MB DRAM, 64 MB flash
- Regulatory domain: Z
- Software: Cisco Unified Wireless Network Software release 7.6 or later
- Input power: 44 to 57 VDC
- PoE requirement at PSE: 16.1 W (19.6 W with Wireless Security Module) on 802.3at in 4x4:3 mode
- PoE requirement on 802.3af: 15.4 W in 3x3:3 mode
- Dimensions (W x L x H): 22.1 x 22.1 x 5.4 cm without mounting bracket
- Weight: 1.13 kg
- Operating temperature: -20 to 50 C
- Storage temperature: -30 to 70 C
- Operating humidity: 10% to 90% non-condensing
- Compliance: UL 60950-1, UL 2043, IEC/EN 60950-1, EN 50155, FCC Part 15.247/15.407, EN 300 328, EN 301 893

FAQs

Q: Does this access point need a wireless controller?
A: Yes. The 3700p is controller-based only and requires a compatible Cisco wireless LAN controller running AireOS release 7.6 or later, with AP licensing on the controller. No standalone licence is included with the access point.

Q: How is the AIR-CAP3702P-Z-K9 powered?
A: It can be powered by 802.3af PoE in a reduced 3x3:3 mode, or by 802.3at PoE+ or a Cisco PWRINJ4 injector for full 4x4:3 operation. The AP input is 44 to 57 VDC. Full-power operation needs 16.1 W at the PSE, or 19.6 W with the Wireless Security Module.

Q: Which controllers and switches does it work with?
A: It is compatible with Cisco 2500, 5500, Flex 7500 and 8500 Series WLCs, Virtual WLC, WiSM2, the ISR G2 controller module, the Cisco 5760 WLC, and Catalyst 3850 and 3650 switches.

Q: What type of antennas does the 3700p use?
A: The 3700p uses external, narrow-beamwidth, high-gain antennas intended for professional installation. The antennas are sold separately and are certified for gains up to 6 dBi on both bands.

Q: What does the Z regulatory domain mean?
A: The Z regulatory domain covers Australia and New Zealand. It defines the permitted channels and power settings, including 2.412 to 2.462 GHz and the 5 GHz channel ranges used in this region.
