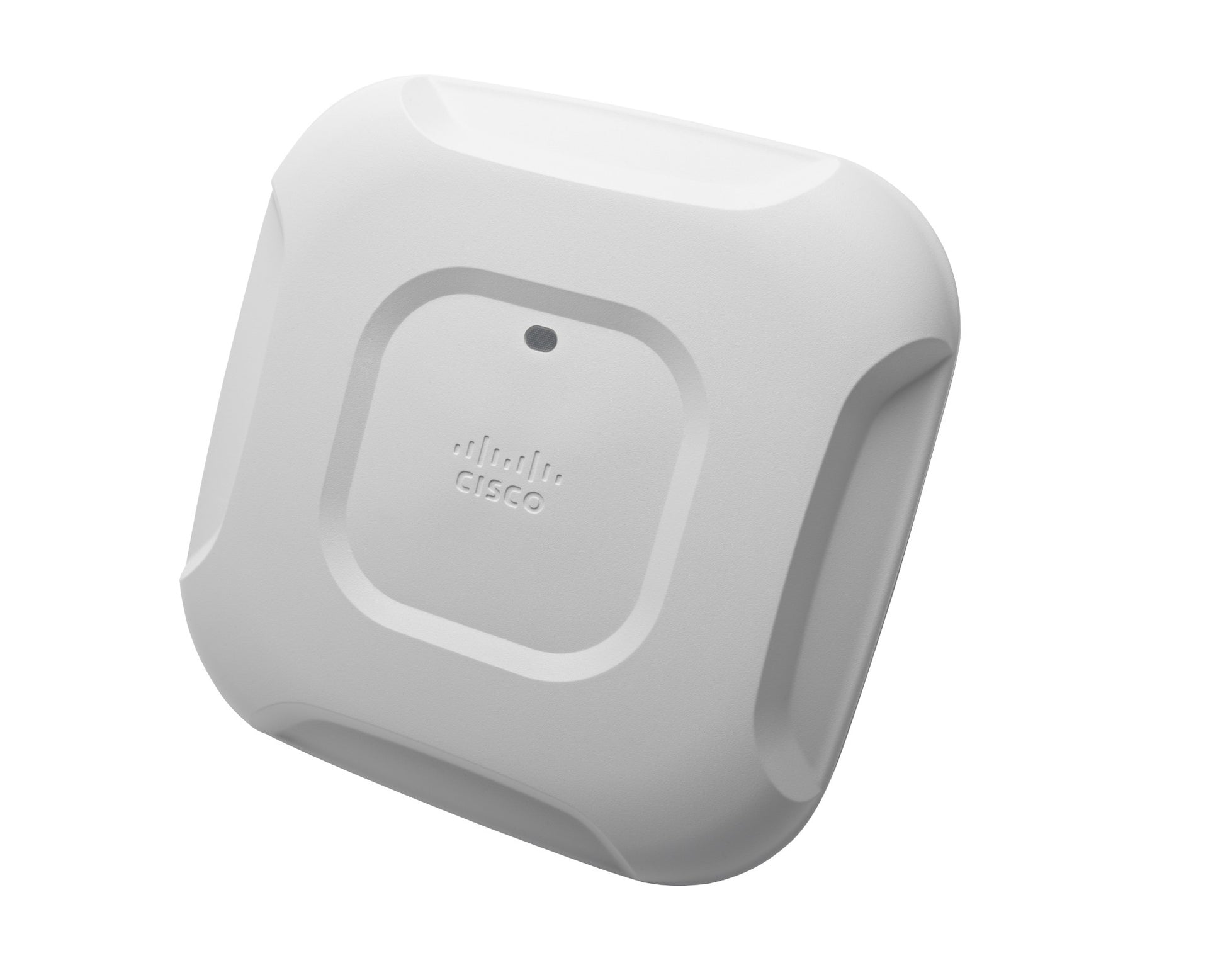

Cisco AIR-CAP3702I-Z-K9 | Aironet 3700 Wi-Fi 5 Access Point, CleanAir, Z Domain

AIR-CAP3702I-Z-K9

Request Quote
Sale Sold out
Shipping calculated at checkout.

Stock Status: Enquire

20-min response

Need a quote or bulk pricing? Answered within 20 minutes, Sydney business hours.

Description

The Aironet 3700 is a controller-based indoor access point built for high-density enterprise wireless in offices, campuses, education and healthcare. This SKU is the Z regulatory-domain model with internal omni antennas and integrated Cisco CleanAir spectrum intelligence for detecting and mitigating RF interference.

It is a dual-band 802.11a/b/g/n/ac Wave 1 access point with 4x4 MIMO and three spatial streams, delivering PHY data rates up to 1.3 Gbps on 80 MHz channels in the 5 GHz band. Beamforming is supported for 802.11n, 802.11a/g and 802.11ac clients. A single 10/100/1000BASE-T RJ-45 port provides connectivity, backed by 512 MB DRAM and 64 MB Flash. Power is supplied over 44 to 57 VDC via PoE or a power injector.

The access point operates in lightweight mode and requires a Cisco wireless LAN controller running AireOS 7.6 or later, with the corresponding AP licences on the controller. The Wireless Security Module is supported on the 3700 Series.

Enquire with XS Network Tech for new or used pricing and availability.

Features

- Cisco CleanAir technology for RF interference detection and mitigation
- 802.11ac Wave 1 with 4x4 MIMO and three spatial streams for high-density environments
- Beamforming for 802.11n and 802.11a/g clients and 802.11ac beamforming
- Controller-based operation with Cisco AireOS wireless controllers
- A-MPDU and A-MSDU packet aggregation with MRC and DFS support
- Supports the Wireless Security Module for the 3700 Series
- Internal antennas for indoor deployments

Warranty

All products sold by XS Network Tech include a 12-month warranty on both new and used items. Our in-house technical team thoroughly tests used hardware prior to sale to ensure enterprise-grade reliability.

All technical data should be verified on the manufacturer data sheets.

View full details

specs-tabs

Technical Specifications

FAQs

Technical Specifications

- Wi-Fi standard: Dual-band 802.11a/b/g/n/ac Wave 1, controller-based
- Radio design: 4x4 MIMO with 3 spatial streams (4x4:3SS)
- Maximum PHY data rate: Up to 1.3 Gbps (80 MHz, 5 GHz)
- 802.11n PHY data rate: Up to 450 Mbps (40 MHz, 5 GHz)
- Channel widths: 20, 40 and 80 MHz
- Spectrum intelligence: Cisco CleanAir
- Antennas: Internal omni, 4 dBi gain at 2.4 GHz and 5 GHz
- Maximum transmit power: 23 dBm, 4 antennas (2.4 GHz and 5 GHz, 802.11a/b/g/n HT20)
- Ethernet: 1 x 10/100/1000BASE-T (RJ-45) autosensing
- Console: 1 x RJ-45 management console port
- Memory: 512 MB DRAM, 64 MB Flash
- Input power: 44 to 57 VDC
- Regulatory domain: Z
- Dimensions: 22.1 x 22.1 x 5.4 cm (without mounting bracket)
- Weight: 1.13 kg
- Storage temperature: -30 to 70 C
- Minimum controller software: AireOS 7.6 or later

FAQs

Q: Does it need a wireless controller?
A: Yes. This is a controller-based access point that requires a Cisco wireless LAN controller running AireOS 7.6 or later, with the corresponding AP licences on the controller.

Q: How is it powered?
A: It accepts 44 to 57 VDC input, supplied through PoE or a power injector. The power supply and injector accept 100 to 240 VAC, 50 to 60 Hz.

Q: What does the Z in the part number mean?
A: Z denotes the regulatory domain this unit is configured for. It is the Z regulatory-domain variant with internal antennas and CleanAir.

Q: What is the maximum wireless data rate?
A: It supports PHY data rates up to 1.3 Gbps on 80 MHz channels in the 5 GHz band using 802.11ac Wave 1, and up to 450 Mbps for 802.11n on 40 MHz channels.

Q: Does it support the Wireless Security Module?
A: Yes. The Wireless Security Module is supported on the Aironet 3700 Series with AireOS 7.6 or later.
