Cisco

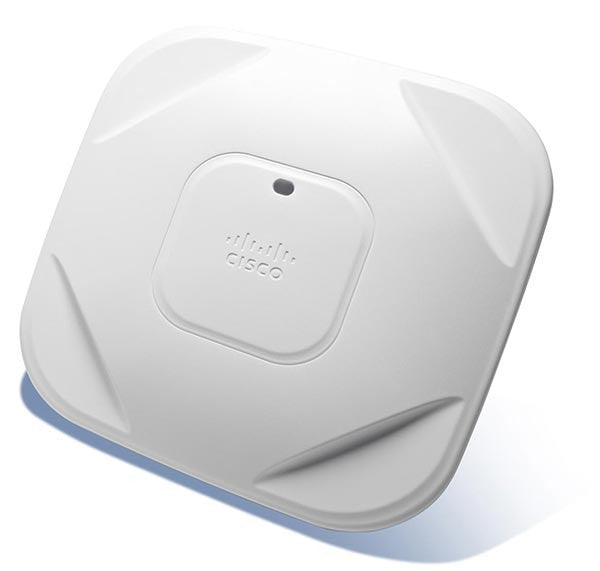

Cisco AIR-CAP1602I-Z-K9 | Aironet 1600 Dual-Band Access Point, Controller-Based, Z Domain

AIR-CAP1602I-Z-K9

Request Quote
Sale Sold out
Shipping calculated at checkout.

Stock Status: Enquire

20-min response

Need a quote or bulk pricing? Answered within 20 minutes, Sydney business hours.

Description

The Aironet 1600 is an indoor, controller-based dual-band access point built for enterprise wireless LANs in offices, education, healthcare and retail. This AIR-CAP1602I-Z-K9 model has integrated omnidirectional antennas and operates as a lightweight CAPWAP access point under the Cisco Unified Wireless Network.

It supports 802.11a/g/n on both 2.4 GHz and 5 GHz, using 3x3 MIMO with two spatial streams, 20 and 40 MHz channel widths and a maximum PHY rate of 300 Mbps. The internal antennas provide 4 dBi gain on each band with 360 degree horizontal coverage. Wired connectivity is a single 10/100/1000BASE-T Gigabit Ethernet RJ-45 port, and it carries 256 MB DRAM and 32 MB flash. The Z suffix denotes the Z regulatory domain, which covers 11 channels in the 2.4 GHz band and the 5.180 to 5.825 GHz range in the 5 GHz band.

Power is supplied over 802.3af PoE, or with an AIR-PWR-B= local power supply or AIR-PWRINJ4= / AIR-PWRINJ5= power injector. As a controller-based unit it works with compatible Cisco wireless LAN controllers, including the Catalyst 3850 integrated controller. The standalone equivalent is AIR-SAP1602I-Z-K9.

Enquire with XS Network Tech for new or used pricing and availability.

Features

- 802.11n 3x3 MIMO with two spatial streams
- Maximal ratio combining for improved receive performance
- Integrated omnidirectional antennas for indoor deployment
- Controller-based operation with the Cisco Unified Wireless Network
- 802.3af Power over Ethernet support, so no local power supply is required
- Dynamic Frequency Selection (DFS) support on 5 GHz channels
- Cyclic shift diversity (CSD) support

Warranty

All products sold by XS Network Tech include a 12-month warranty on both new and used items. Our in-house technical team thoroughly tests used hardware prior to sale to ensure enterprise-grade reliability.

All technical data should be verified on the manufacturer data sheets.

View full details

specs-tabs

Technical Specifications

FAQs

Technical Specifications

- Radio standard: 802.11a/g/n dual-band
- Operating mode: Controller-based (lightweight/CAPWAP)
- MIMO: 3x3 with two spatial streams
- Maximum PHY data rate: 300 Mbps
- Channel widths: 20 and 40 MHz
- Maximal ratio combining (MRC): Supported
- Packet aggregation: A-MPDU and A-MSDU (Tx/Rx)
- Antennas: Integrated omnidirectional, 4 dBi at 2.4 GHz and 4 dBi at 5 GHz
- Regulatory domain: Z
- 2.4 GHz channels: 2.412 to 2.462 GHz, 11 channels
- 5 GHz channels: 5.180 to 5.320 GHz, 5.500 to 5.700 GHz (excludes 5.600 to 5.640 GHz), 5.745 to 5.825 GHz
- Uplink: 1 x 10/100/1000BASE-T Gigabit Ethernet (RJ-45)
- Memory: 256 MB DRAM, 32 MB flash
- Power input: 44 to 57 VDC, 802.3af PoE
- Power draw: 12.95 W, up to 15.4 W total system draw including cabling
- Dimensions: 22.1 x 22.1 x 4.7 cm (without mounting bracket)
- Weight: 0.86 kg
- Operating temperature: -20 to 55 C
- Storage temperature: -30 to 70 C
- Operating humidity: 10 to 90% non-condensing

FAQs

Q: Does this access point work on its own?
A: No. AIR-CAP1602I-Z-K9 is a controller-based (CAPWAP) access point and needs a compatible Cisco wireless LAN controller. The standalone version is AIR-SAP1602I-Z-K9.

Q: Does it need a licence?
A: There is no separate licence for the access point itself. It does need a compatible Cisco wireless LAN controller that holds an AP licence for it.

Q: How is it powered?
A: It runs on 802.3af PoE at 44 to 57 VDC. It can also be powered by an AIR-PWR-B= local power supply or an AIR-PWRINJ4= or AIR-PWRINJ5= power injector. Typical draw is 12.95 W.

Q: Which controllers is it compatible with?
A: It works with Cisco WLAN controllers under the Unified Wireless Network, including the integrated controller on the Catalyst 3850.

Q: What does the Z regulatory domain mean?
A: Z is the regulatory domain code for this SKU, covering Australia, New Zealand and other regions. It sets the permitted 2.4 GHz and 5 GHz channels, including 11 channels in the 2.4 GHz band.
