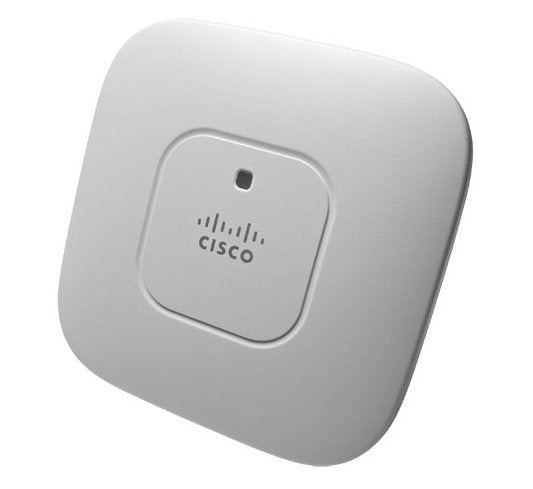

• Cisco AIR-AP702I-UXK910 white square Wi-Fi 4 access point with logo and lights
1 1

Cisco

Cisco AIR-AP702I-UXK910 | Aironet 700 Wi-Fi 4 Dual-Band AP, Controller, 10-Pack

AIR-AP702I-UXK910

Request Quote
Sale Sold out
Shipping calculated at checkout.

Stock Status: Enquire

20-min response

Need a quote or bulk pricing? Answered within 20 minutes, Sydney business hours.

Description

The Aironet 702i is a compact indoor dual-band, dual-radio 802.11n (Wi-Fi 4) access point from the Cisco Aironet 700 Series. This SKU is an Eco-pack of 10 access points in the Universal (UX) regulatory domain with internal antennas, built for controller-based deployments. It suits cost-conscious enterprise and branch-office wireless rollouts, including ceiling installations and remote sites using FlexConnect.

Each unit runs two radios, 2.4 GHz and 5 GHz, with 2x2 MIMO and two spatial streams for PHY data rates up to 300 Mbps. It has a single 10/100/1000BASE-T RJ-45 uplink, integrated omni antennas of 3.0 dBi (2.4 GHz) and 5.0 dBi (5 GHz), and a maximum transmit power of 20 dBm. It is powered by 802.3af PoE with a 9.5 W maximum draw, so it works on existing PoE switches. Backward compatibility with 802.11a/b/g clients is retained, and the unit is UL 2043 plenum-rated.

In controller-based mode it is managed by a Cisco Wireless LAN Controller running Unified Wireless Network Software 7.5 or later, with no subscription listed on the datasheet. Alternative power options include the AIR-PWRINJ5=, AIR-PWRINJ4= power injectors and the AIR-PWR-B= local power supply.

Enquire with XS Network Tech for new or used pricing and availability.

Features

- Dual-radio design with simultaneous 2.4 GHz and 5 GHz operation
- Backward-compatible with 802.11a/b/g clients
- Runs on existing 802.3af PoE switches
- Controller-based operation with FlexConnect support for remote sites
- Radio resource management (RRM) and Cisco BandSelect for steering clients to 5 GHz
- Rogue AP detection, wIPS and Context-Aware support
- UL 2043 plenum-rated for above-ceiling installation
- Small multipurpose mounting bracket with lock options for theft protection

Warranty

All products sold by XS Network Tech include a 12-month warranty on both new and used items. Our in-house technical team thoroughly tests used hardware prior to sale to ensure enterprise-grade reliability.

All technical data should be verified on the manufacturer data sheets.

View full details

specs-tabs

Technical Specifications

FAQs

Technical Specifications

- Pack quantity: 10 access points
- Wi-Fi standard: 802.11a/b/g/n (Wi-Fi 4), dual-band, dual-radio
- Radios: 2.4 GHz and 5 GHz
- MIMO: 2x2 with 2 spatial streams
- PHY data rate: up to 300 Mbps
- Uplink: 1 x 10/100/1000BASE-T (RJ-45) autosensing
- Management port: console port (RJ-45)
- Antennas: integrated omni, 3.0 dBi (2.4 GHz), 5.0 dBi (5 GHz)
- Maximum transmit power: 20 dBm
- Non-overlapping channels: 3 (2.4 GHz), 21 (5 GHz at 20 MHz)
- Power: 802.3af PoE, 44 to 57 VDC
- Power draw: 9.5 W maximum (up to 10.8 W including cable loss)
- Memory: 128 MB DRAM, 128 MB flash
- Dimensions (W x L x H, without bracket): 177.6 x 177.6 x 50.4 mm
- Weight: 0.48 kg
- Operating temperature: 0 to 40 C
- Operating humidity: 10 to 90% non-condensing
- Plenum rating: UL 2043
- Security: 802.11i, WPA2, WPA, 802.1X, AES, TKIP
- Regulatory domain: Universal (UX)

FAQs

Q: Does this access point need a wireless controller?
A: This SKU is for controller-based operation and is managed by a Cisco Wireless LAN Controller running Unified Wireless Network Software 7.5 or later. No subscription is listed on the datasheet.

Q: How is the Aironet 702i powered?
A: It runs on 802.3af PoE with a maximum draw of 9.5 W. It can also be powered with the AIR-PWRINJ5= or AIR-PWRINJ4= power injectors, or the AIR-PWR-B= local power supply.

Q: What does the UX regulatory domain mean?
A: UX is the Universal regulatory domain. The access point is configured for its country's regulatory domain through Cisco's priming process before deployment.

Q: How many access points are in this SKU?
A: This is an Eco-pack of 10 Aironet 702i access points, suited to larger rollouts that need several units at once.

Q: Can it be used at remote sites?
A: Yes. It supports FlexConnect, which lets branch and remote-site deployments keep local switching while managed from a central controller.
