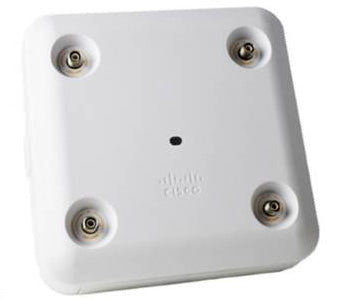

• Cisco AIR-AP3802P-Z-K9C white Wi-Fi 5 access point with mounting screws
1 1

Cisco

Cisco AIR-AP3802P-Z-K9C | Aironet 3802P Wi-Fi 5 Access Point, Mobility Express

AIR-AP3802P-Z-K9C

Request Quote
Sale Sold out
Shipping calculated at checkout.

Stock Status: Enquire

20-min response

Need a quote or bulk pricing? Answered within 20 minutes, Sydney business hours.

Description

The Aironet 3802P is an indoor 802.11ac Wave 2 dual-band access point from the Aironet 3800 Series, built for challenging environments such as warehouses, industrial sites and high-ceiling spaces where external antennas are needed. This AIR-AP3802P-Z-K9C variant is the configurable K9C build for the Z regulatory domain and can run in Cisco Mobility Express mode, so a physical controller is not required for small and mid-size sites.

It delivers 4x4 MU-MIMO with three spatial streams and PHY data rates up to 5.2 Gbps. Wired connectivity is a 100/1000/2500/5000 Multigigabit Ethernet port (802.3bz) plus a 100/1000BASE-T AUX port and an RJ-45 console port. The unit is certified for external antenna gains up to 13 dBi with the AIR-ANT2513-P4M-N= antenna, and a smart antenna connector supports a second antenna via the AIR-CAB002-DART-R= cable. Power comes from 802.3at PoE+, Cisco UPOE, an AIR-PWRINJ6= injector or an AIR-PWR-50= power supply, with an operating range of -20 to 50 C.

No separate licence is needed for Mobility Express operation, and it can also join Cisco Wireless LAN Controllers, including the Catalyst 9800 Series, as well as Catalyst 3850 and 3650 switches with integrated controllers.

Enquire with XS Network Tech for new or used pricing and availability.

Features

- Cisco Mobility Express lets you deploy without a physical controller, supporting up to 100 access points
- 4x4 MU-MIMO with three spatial streams for Wi-Fi 5 Wave 2 performance
- Multigigabit uplink up to 5 Gbps over Cat 5e or Cat 6/6a cabling
- Automatic link aggregation (802.3ad LACP) across both Ethernet interfaces
- Cisco CleanAir spectrum intelligence, Client Link 4.0 and optimised client roaming
- OfficeExtend Access Point (OEAP) mode for remote workers
- Smart antenna connector for a second antenna, enabling a second 5 GHz serving radio or a security monitoring radio
- Flexible radio (2.4 GHz or 5 GHz) plus a dedicated 5 GHz radio

Warranty

All products sold by XS Network Tech include a 12-month warranty on both new and used items. Our in-house technical team thoroughly tests used hardware prior to sale to ensure enterprise-grade reliability.

All technical data should be verified on the manufacturer data sheets.

View full details

specs-tabs

Technical Specifications

FAQs

Technical Specifications

- Wireless standard: 802.11a/b/g/n/ac Wave 1 and Wave 2, dual-band
- MIMO: 4x4 MU-MIMO with three spatial streams
- Maximum PHY data rate: up to 5.2 Gbps
- Antennas: external, certified for gains up to 13 dBi with AIR-ANT2513-P4M-N=
- Ethernet uplink: 1 x 100/1000/2500/5000 Multigigabit (RJ-45, 802.3bz)
- AUX port: 1 x 100/1000BASE-T (RJ-45)
- Console: RJ-45 management console port
- PoE input: 802.3at PoE+, Cisco UPOE, AIR-PWRINJ6= or AIR-PWR-50=
- Power draw: 25.8 W at the PSE, 30 W with USB 2.0 enabled
- Transmit power: 23 dBm (200 mW) down to 2 dBm (1.56 mW)
- Memory: 1024 MB DRAM, 256 MB flash
- Dimensions: 22 x 22 x 6.7 cm without mounting brackets
- Weight: 2.09 kg
- Operating temperature: -20 to 50 C
- Storage temperature: -30 to 70 C
- Operating humidity: 10% to 90% non-condensing
- Regulatory domain: Z
- Security: 802.11i, WPA3, WPA2, WPA, 802.1X, AES, TKIP

FAQs

Q: Does this access point need a licence?
A: No separate licence is needed for Cisco Mobility Express operation. When joined to a Catalyst 9800 Series controller, a Cisco DNA subscription is required, and this SKU does not include one.

Q: How is the AIR-AP3802P-Z-K9C powered?
A: It runs from 802.3at PoE+, Cisco UPOE, an AIR-PWRINJ6= injector or an AIR-PWR-50= 50W power supply. Draw is 25.8W at the PSE, or 30W with USB 2.0 enabled.

Q: Which controllers and antennas does it work with?
A: It works with Cisco 2500, 3500, 5500, Flex 7500, 8500 and 9800 Series controllers, the Virtual Wireless Controller, Catalyst 3850 and 3650 switches with integrated controllers, or Mobility Express. The external antenna is AIR-ANT2513-P4M-N= (up to 13 dBi).

Q: How does the 3802P differ from other 3800 Series models?
A: The 3802P uses external antennas and supports a smart antenna connector, which suits challenging environments. This SKU is the configurable K9C build for the Z regulatory domain.
