• Cisco AIR-AP3702I-UXK9 white Wi-Fi 5 dual-band access point
1 1

Cisco

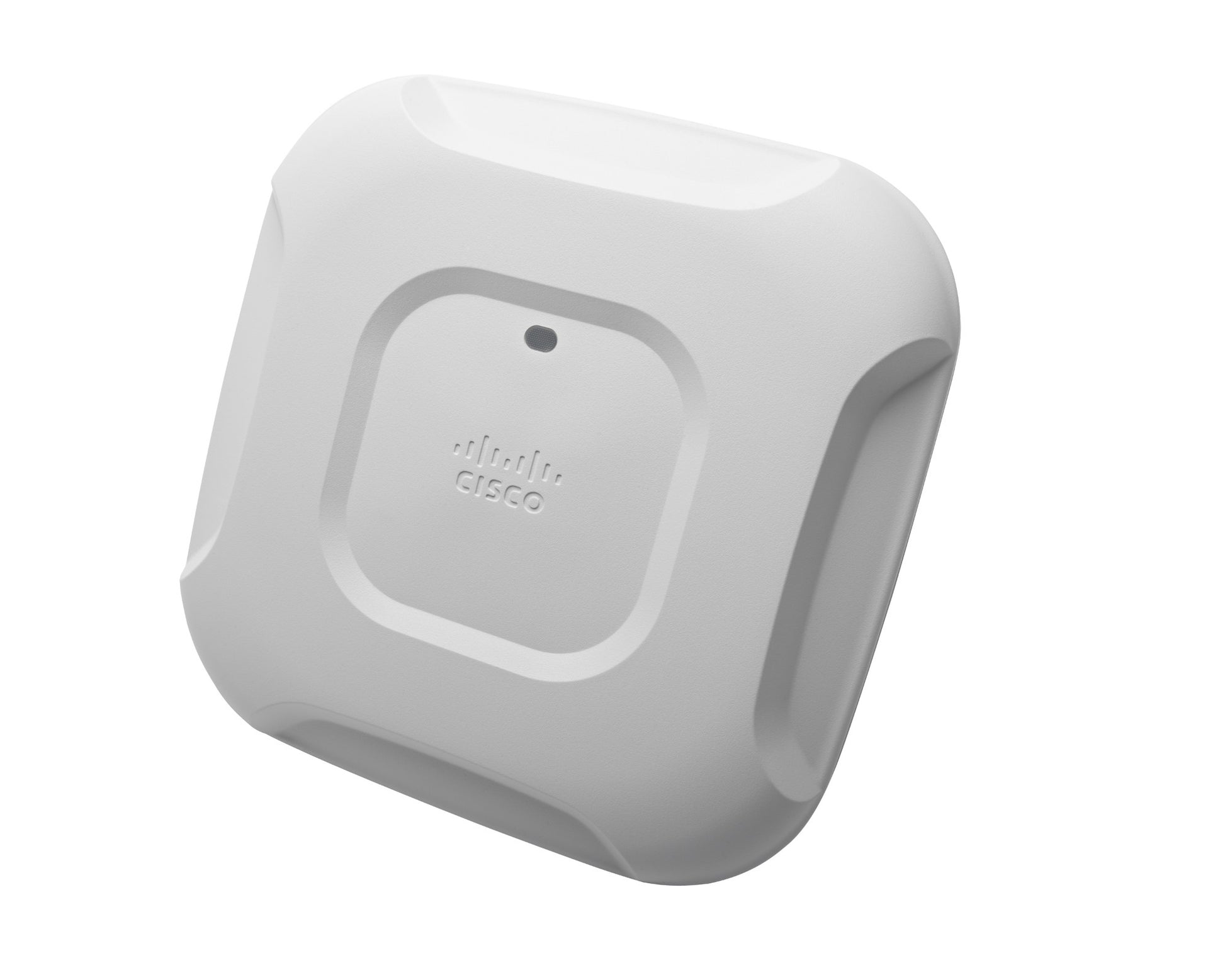

Cisco AIR-AP3702I-UXK9 | Aironet 3702i Wi-Fi 5 Access Point, Internal Antennas, U Domain

AIR-AP3702I-UXK9

Request Quote
Sale Sold out
Shipping calculated at checkout.

Stock Status: Enquire

20-min response

Need a quote or bulk pricing? Answered within 20 minutes, Sydney business hours.

Description

The Aironet 3702i is a controller-based, dual-band indoor access point from the Aironet 3700 Series. It uses internal omni antennas for a discreet look in office environments that need dense 802.11ac coverage. This SKU carries the U regulatory domain code.

The 5 GHz radio supports 802.11ac Wave 1 with 4x4 MIMO and three spatial streams, delivering PHY data rates up to 1.3 Gbps on 80 MHz channels, while the 2.4 GHz radio handles 802.11a/g/n clients. Internal antenna gain is 4 dBi on 2.4 GHz and 6 dBi on 5 GHz, with a maximum transmit power of 23 dBm per radio. Wired connectivity is a single 10/100/1000BASE-T RJ-45 port plus an RJ-45 console port. Full 4x4:3 operation needs 802.3at PoE+ or a PWRINJ4 injector, drawing about 16.1 W at the PSE. On 802.3af PoE it runs in a reduced 3x3:3 mode.

The access point is controller-based only and requires Cisco Unified Wireless Network Software 7.6 or later. It works with Cisco 2500, 5500, Flex 7500 and 8500 Series controllers, WiSM2, the Virtual Wireless Controller, the Cisco 5760 WLC and Catalyst 3850 and 3650 switches. Cisco CleanAir with 80 MHz support and ClientLink 3.0 beamforming help keep performance consistent.

Enquire with XS Network Tech for new or used pricing and availability.

Features

- 802.11ac Wave 1 with 4x4 MIMO and three spatial streams, up to 1.3 Gbps
- Cisco CleanAir with 80 MHz support classifies over 20 types of interference
- ClientLink 3.0 beamforming improves downlink performance for 1, 2 and 3 spatial stream clients
- Cross AP Noise Reduction and Optimised AP Roaming
- Modular design with field-upgradable Wireless Security Module for wIPS, off-channel scanning and context awareness
- Rogue AP detection, denial-of-service detection and management frame protection
- Internal-antenna design suited to office environments
- Support for WMM, 802.1X and multiple EAP authentication types

Warranty

All products sold by XS Network Tech include a 12-month warranty on both new and used items. Our in-house technical team thoroughly tests used hardware prior to sale to ensure enterprise-grade reliability.

All technical data should be verified on the manufacturer data sheets.

View full details

specs-tabs

Technical Specifications

FAQs

Technical Specifications

- Wireless standards: Dual-band 802.11a/g/n/ac Wave 1 (Wi-Fi 5)
- MIMO: 4x4 with 3 spatial streams
- Maximum PHY data rate: 1.3 Gbps (80 MHz, 5 GHz)
- Internal antennas: 4 dBi omni (2.4 GHz), 6 dBi omni (5 GHz)
- Maximum transmit power: 23 dBm (200 mW) per radio
- Ethernet: 1 x 10/100/1000BASE-T (RJ-45) autosensing
- Console: 1 x RJ-45 management port
- PoE: 802.3af (reduced 3x3:3) or 802.3at PoE+ / PWRINJ4 (full 4x4:3)
- PoE budget at PSE, 802.3at, no module: 16.1 W
- PoE budget at PSE, 802.3af, no module: 15.4 W
- Input power: 44 to 57 VDC
- Memory: 512 MB DRAM, 64 MB flash
- Dimensions (W x L x H, without bracket): 22.1 x 22.1 x 5.4 cm
- Weight: 1.13 kg
- Operating temperature: 0 to 40 C
- Storage temperature: -30 to 70 C
- Operating humidity: 10% to 90% non-condensing
- Regulatory domain: U
- Security: 802.11i, WPA2, WPA, 802.1X, AES, TKIP
- Deployment: Controller-based only, Unified Wireless Network Software 7.6 or later

FAQs

Q: Does the Aironet 3702i work without a wireless controller?
A: No. It is a controller-based access point and needs a compatible Cisco wireless LAN controller running Unified Wireless Network Software 7.6 or later.

Q: How is it powered?
A: It is powered over Ethernet. Full 4x4:3 operation needs 802.3at PoE+ or a Cisco PWRINJ4 injector, drawing about 16.1 W at the PSE. On 802.3af it runs in a reduced 3x3:3 mode.

Q: Which controllers is it compatible with?
A: It works with Cisco 2500, 5500, Flex 7500 and 8500 Series controllers, WiSM2, the Wireless Controller Module for ISR G2, the Virtual Wireless Controller, the Cisco 5760 WLC and Catalyst 3850 and 3650 switches.

Q: What does the U in AIR-AP3702I-UXK9 mean?
A: U is the regulatory domain code for this SKU. Choose the domain that matches the country where the access point will be deployed.

Q: Does it have internal or external antennas?
A: The 3702i has internal omni antennas, 4 dBi on 2.4 GHz and 6 dBi on 5 GHz. The external-antenna version of the 3700 Series is a separate model.
