Cisco

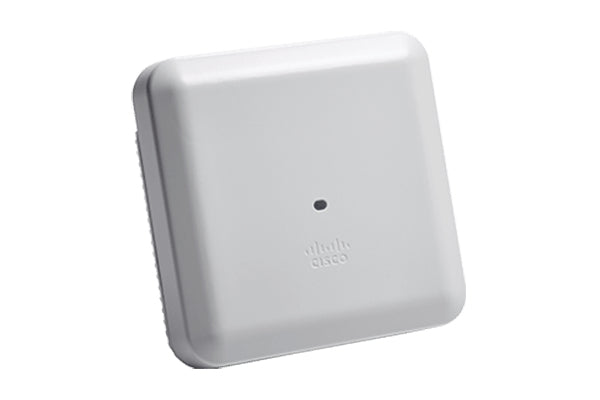

Cisco AIR-AP2802E-Z-K9C | Aironet 2802E Wi-Fi 5 Access Point, External Antennas

AIR-AP2802E-Z-K9C

Request Quote
Sale Sold out
Shipping calculated at checkout.

Stock Status: Enquire

20-min response

Need a quote or bulk pricing? Answered within 20 minutes, Sydney business hours.

Description

The Aironet 2802E is an indoor dual-radio Wi-Fi 5 (802.11ac Wave 2) access point from the Aironet 2800 Series, built for high-density venues and challenging indoor environments such as auditoriums, convention centres, libraries, arenas and warehouses. It uses four RP-TNC external antenna connectors, so the antenna pattern can be matched to the space.

This AIR-AP2802E-Z-K9C SKU is the configurable ordering variant for the Z regulatory domain. Radios run 4x4 MU-MIMO with three spatial streams across 2.4 GHz and 5 GHz, with Flexible Radio Assignment allowing dual 5 GHz operation for up to 5.2 Gbps over the air. Wired connectivity is two 100/1000BASE-T RJ-45 ports with link aggregation, plus an RJ-45 console port and a USB 2.0 port. The unit is powered by 802.3at PoE+ or Cisco UPOE and operates from -20 to 50 C, with 1024 MB DRAM and 256 MB flash. It must join a wireless controller and does not ship with a licence.

It works with Cisco 2500, 3500, 5500 and 8500 Series controllers, Flex 7500, Catalyst 9800, the Virtual Wireless Controller, embedded controllers on Catalyst 3850 and 3650 switches, and Mobility Express. A Smart antenna connector supports a second set of external antennas using the AIR-CAB002-DART-R= cable.

Enquire with XS Network Tech for new or used pricing and availability.

Features

- High Density Experience (HDX) with CleanAir, ClientLink 4.0 and optimised roaming
- MU-MIMO with three spatial streams on 802.11ac Wave 2
- Flexible Radio Assignment: 2.4/5 GHz, dual 5 GHz, or Security Monitoring plus 5 GHz
- 160 MHz channel support with Dynamic Bandwidth Selection
- Smart antenna connector for a second set of external antennas on the same access point
- Auto link aggregation (802.3ad LACP) across both Gigabit Ethernet ports
- Cisco Mobility Express support for deployments without a physical controller, up to 100 access points
- Can operate as an OfficeExtend Access Point (OEAP)

Warranty

All products sold by XS Network Tech include a 12-month warranty on both new and used items. Our in-house technical team thoroughly tests used hardware prior to sale to ensure enterprise-grade reliability.

All technical data should be verified on the manufacturer data sheets.

View full details

specs-tabs

Technical Specifications

FAQs

Technical Specifications

- Wi-Fi standard: 802.11ac Wave 2 (Wi-Fi 5), dual-band 2.4 GHz and 5 GHz
- Radios: 4x4 MU-MIMO with three spatial streams
- Maximum over-the-air rate: up to 5.2 Gbps in dual 5 GHz mode (2 x 2.6 Gbps)
- 802.11ac channel widths: 20/40/80/160 MHz, PHY data rates up to 4680 Mbps
- 802.11n: 20/40 MHz channels, PHY rates up to 450 Mbps
- Ethernet ports: 2 x 100/1000BASE-T (RJ-45), autosensing
- Other interfaces: RJ-45 console port, USB 2.0 (enabled via future software)
- Antennas: external, RP-TNC connectors, certified for gains up to 6 dBi on 2.4 GHz and 5 GHz
- Smart antenna connector: available, requires AIR-CAB002-DART-R= cable
- Transmit power: 23 dBm (200 mW) down to 2 dBm (1.56 mW) in 3 dB steps
- Regulatory domain: Z
- Power input: 802.3at PoE+, Cisco UPOE or AIR-PWRINJ6= injector
- Power draw: 22.5 W at the PSE (20 W at the PD), 26.5 W at the PSE (23 W at the PD) with USB enabled
- Memory: 1024 MB DRAM, 256 MB flash
- Dimensions (W x L x H): 8.66 x 8.77 x 2.50 in (without mounting brackets)
- Weight: 4.6 lb (2.09 kg)
- Operating temperature: -20 to 50 C (-4 to 122 F)
- Storage temperature: -30 to 70 C (-22 to 158 F)
- Operating humidity: 10% to 90% (noncondensing)
- Security: 802.11i, WPA3, WPA2, WPA, 802.1X, AES
- Software: Cisco Unified Wireless Network Software Release 8.2.111.0 or later, Cisco IOS XE Release 16.3

FAQs

Q: Does this access point need a licence or subscription?
A: No licence is bundled with the access point. It must join a wireless controller, and connecting to a Catalyst 9800 controller requires a Cisco DNA subscription (DNA Essentials or DNA Advantage). Perpetual Network Essentials or Network Advantage features remain after a subscription expires.

Q: How is the AIR-AP2802E-Z-K9C powered?
A: It runs from 802.3at PoE+, Cisco UPOE or an AIR-PWRINJ6= power injector. Draw is 22.5 W at the PSE with all features enabled except USB, or 26.5 W at the PSE with USB 2.0 enabled.

Q: Which controllers and software does it work with?
A: It works with Cisco 2500, 3500, 5500 and 8500 Series controllers, Flex 7500, Catalyst 9800, the Virtual Wireless Controller, WiSM2, embedded controllers on Catalyst 3850 and 3650 switches, and Mobility Express. It requires AireOS 8.2.111.0 or later, or IOS XE 16.3.

Q: What do the Z and K9C parts of the SKU mean?
A: Z is the regulatory domain for Australia and New Zealand. K9C is the configurable ordering variant, which is Mobility Express capable.

Q: How do I connect a second set of antennas?
A: The Smart antenna connector on the 2802E takes a second antenna through the AIR-CAB002-DART-R= cable. It is required for dual 5 GHz and Wireless Security Monitoring modes.
