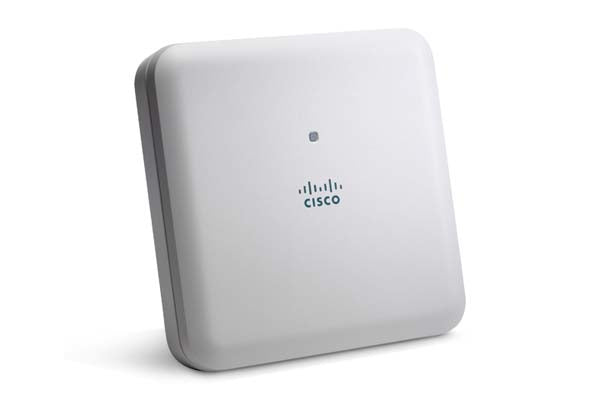

• Cisco AIR-AP1832I-Z-K9C white Wi-Fi 5 access point with LED indicator
1 1

Cisco

Cisco AIR-AP1832I-Z-K9C | Aironet 1830 Wi-Fi 5 Access Point, 3x3:2, Z Domain, K9C

AIR-AP1832I-Z-K9C

Request Quote
Sale Sold out
Shipping calculated at checkout.

Stock Status: Enquire

20-min response

Need a quote or bulk pricing? Answered within 20 minutes, Sydney business hours.

Description

The Aironet 1832I is an indoor dual-band 802.11ac Wave 2 (Wi-Fi 5) access point from the Aironet 1830 series, built for small and mid-sized deployments such as offices, retail sites, education and branch locations. It also suits remote workers through OfficeExtend support.

This SKU is the Z regulatory domain model with internal omni antennas (3 dBi at 2.4 GHz, 5 dBi at 5 GHz) and 3x3 MIMO with two spatial streams. PHY rates reach up to 867 Mbps in 5 GHz on an 80 MHz channel and 300 Mbps in 2.4 GHz. It has one 10/100/1000BASE-T RJ-45 port with PoE, an RJ-45 console port and a USB 2.0 port that is enabled through future software. Power draw is 15.4 W from 802.3af or 802.3at PoE, with 1 GB DRAM and 256 MB flash on board.

The K9C suffix means Cisco Mobility Express is the default software, so a small wireless network can run without a physical controller and without a licence in that mode. The access point can also join Cisco AireOS controllers or a Catalyst 9800 controller, where a Cisco DNA subscription applies. Powering options include the AIR-PWR-C= local power supply and the AIR-PWRINJ5= or AIR-PWRINJ6= injectors.

Enquire with XS Network Tech for new or used pricing and availability.

Features

- 802.11ac Wave 2 with MU-MIMO and transmit beamforming
- Mobility Express lets the AP act as a controller for small-to-medium deployments
- Operates with Cisco AireOS and Catalyst 9800 wireless controllers
- OfficeExtend (OEAP) support for remote workers
- Deployment modes include FlexConnect, mesh, monitor and sniffer
- Multiple EAP types supported, including EAP-TLS, PEAP and EAP-FAST
- Supports Cisco DNA Center features such as User Defined Network

Warranty

All products sold by XS Network Tech include a 12-month warranty on both new and used items. Our in-house technical team thoroughly tests used hardware prior to sale to ensure enterprise-grade reliability.

All technical data should be verified on the manufacturer data sheets.

View full details

specs-tabs

Technical Specifications

FAQs

Technical Specifications

- Wi-Fi standard: 802.11a/b/g/n/ac Wave 2 (Wi-Fi 5), dual-band
- MIMO: 3x3 with 2 spatial streams, SU-MIMO and MU-MIMO
- PHY rate: up to 867 Mbps (5 GHz, 80 MHz), up to 300 Mbps (2.4 GHz)
- Regulatory domain: Z
- Default software: Cisco Mobility Express (K9C)
- Antennas: internal omni, 3 dBi (2.4 GHz) / 5 dBi (5 GHz)
- Maximum transmit power: 22 dBm (2.4 GHz), 23 dBm (5 GHz)
- Ethernet: 1 x 10/100/1000BASE-T (RJ-45) with PoE
- Console: RJ-45 management console port
- USB: USB 2.0 (enabled via future software)
- Memory: 1 GB DRAM, 256 MB flash
- PoE: 802.3af / 802.3at, Enhanced PoE
- Power draw: 15.4 W
- DC input: 44 to 57 VDC
- Dimensions (W x L x H): 210.8 x 210.8 x 50.8 mm without mounting bracket
- Weight: 930 g
- Operating temperature: 0 to 40 C
- Storage temperature: -30 to 70 C
- Operating humidity: 10% to 90% non-condensing
- Security: 802.11i, WPA3, WPA2, WPA, 802.1X, AES

FAQs

Q: Does this access point need a licence?
A: No licence is needed in Mobility Express mode, which is the default software on the K9C variant. When joined to a Catalyst 9800 controller, a Cisco DNA Essentials or DNA Advantage subscription applies.

Q: Can it run without a wireless controller?
A: Yes. The K9C variant ships with Cisco Mobility Express, so one access point can act as the controller for a small wireless network without a physical controller.

Q: How is it powered?
A: It runs on 802.3af or 802.3at PoE, the AIR-PWR-C= local power supply, or an AIR-PWRINJ5= or AIR-PWRINJ6= injector. Power draw is 15.4 W, and the USB port is disabled when powered by 802.3af.

Q: Which controllers does it work with?
A: It works with Cisco AireOS controllers (2500, 3500, 5500, Flex 7500, 8500, WiSM2 and the ISR G2 module), Catalyst 9800, 5760 WLC and the Catalyst 3650/3850 integrated controller. AireOS 8.1.121.0 or later is required.

Q: What does the Z in the SKU mean?
A: Z is the regulatory domain code for Australia and New Zealand. It sets the permitted channels and transmit power for that region.
