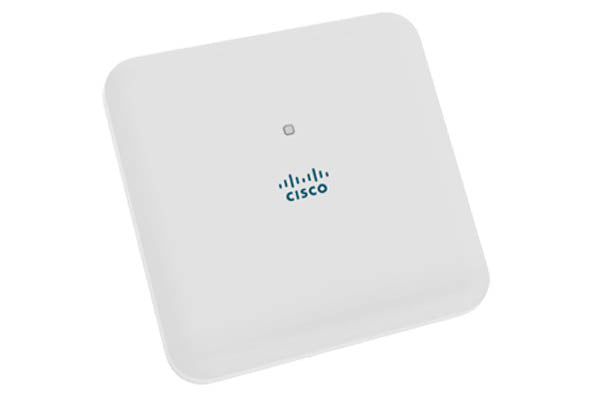

• Cisco AIR-AP1832I-Z-K9 white square Wi-Fi 5 access point with blue logo
1 1

Cisco

Cisco AIR-AP1832I-Z-K9 | Aironet 1830 Wi-Fi 5 Access Point, Z Domain, Internal Ant

AIR-AP1832I-Z-K9

Request Quote
Sale Sold out
Shipping calculated at checkout.

Stock Status: Enquire

20-min response

Need a quote or bulk pricing? Answered within 20 minutes, Sydney business hours.

Description

The Aironet 1830 Series is an indoor, controller-based dual-band 802.11ac Wave 2 (Wi-Fi 5) access point with internal antennas, aimed at small and medium-sized business wireless networks. This 1832i model supports OfficeExtend for remote workers and micro-offices, and Cisco Mobility Express for small multi-AP sites.

It uses 3x3 MIMO with two spatial streams, SU-MIMO and MU-MIMO, delivering PHY rates up to 867 Mbps on 5 GHz with 80 MHz channels. The internal omni antennas are 3 dBi on 2.4 GHz and 5 dBi on 5 GHz. A single 10/100/1000BASE-T RJ-45 port provides both the wired uplink and PoE input, and power draw is 15.4 W from 802.3af or 802.3at. This SKU is the Z regulatory domain, controller-based (K9) variant with internal antennas.

It works with AireOS controllers running 8.1.121.0 or later, Catalyst 9800 controllers, Catalyst 3650 and 3850 integrated controllers, and Cisco Mobility Express. A Cisco DNA software subscription is required for the AP to join a Catalyst 9800 Series controller.

Enquire with XS Network Tech for new or used pricing and availability.

Features

- 802.11ac Wave 2 with 3x3 MIMO and two spatial streams for up to 867 Mbps on 5 GHz
- Multi-user MIMO (MU-MIMO) serves multiple Wave 2 clients simultaneously
- Transmit beamforming improves downlink performance for mobile clients
- Cisco Mobility Express support for small deployments without a physical controller
- OfficeExtend support for remote workers and micro-offices without VPN
- Cisco User Defined Network support through Cisco DNA Center
- Wi-Fi 6 readiness dashboard in Cisco DNA Center Assurance

Warranty

All products sold by XS Network Tech include a 12-month warranty on both new and used items. Our in-house technical team thoroughly tests used hardware prior to sale to ensure enterprise-grade reliability.

All technical data should be verified on the manufacturer data sheets.

View full details

specs-tabs

Technical Specifications

FAQs

Technical Specifications

- Wireless standard: 802.11a/b/g/n/ac Wave 2, dual-band 2.4 GHz and 5 GHz
- MIMO: 3x3 with 2 spatial streams, SU-MIMO and MU-MIMO
- Maximum PHY rate: up to 867 Mbps on 5 GHz (80 MHz)
- Regulatory domain: Z
- Antennas: internal omni, 3 dBi (2.4 GHz), 5 dBi (5 GHz)
- Maximum transmit power: 22 dBm (2.4 GHz), 23 dBm (5 GHz)
- Uplink: 1 x 10/100/1000BASE-T (RJ-45) with PoE
- Console: management console port (RJ-45)
- USB: 1 x USB 2.0 (enabled via future software)
- Power: 802.3af/802.3at PoE, 15.4 W power draw
- Memory: 1 GB DRAM, 256 MB flash
- Dimensions (without bracket): 210.8 x 210.8 x 50.8 mm
- Weight: 930 g
- Operating temperature: 0 to 40 C
- Storage temperature: -30 to 70 C
- Operating humidity: 10% to 90% non-condensing
- Security: 802.11i, WPA3, WPA2, WPA, 802.1X, AES
- Deployment modes: centralized, FlexConnect, monitor, sniffer, OfficeExtend, mesh

FAQs

Q: Does it need a licence or subscription?
A: A Cisco DNA software subscription (Essentials or Advantage, 3, 5 or 7-year term) is required for the AP to join a Catalyst 9800 Series controller. Perpetual Network Essentials and Network Advantage features remain after the subscription expires.

Q: How is it powered?
A: It runs from 802.3af or 802.3at PoE, Enhanced PoE, an AIR-PWR-C= local power supply, or an AIR-PWRINJ5= or AIR-PWRINJ6= injector. AIR-PWRINJ5= supports 802.3af only. Power draw is 15.4 W and the USB port is disabled when powered by 802.3af.

Q: Which controllers does it work with?
A: It works with AireOS controllers on software 8.1.121.0 or later, including the 2500, 3500, 5500, Flex 7500, 8500, 5760 and WiSM2, plus the ISR G2 module. It also works with Catalyst 9800 controllers, Catalyst 3650 and 3850 integrated controllers, and Cisco Mobility Express.

Q: What does the Z in the SKU mean?
A: Z is the regulatory domain this unit is configured for. It supports 2.412 to 2.462 GHz on 2.4 GHz and the 5.180 to 5.320, 5.500 to 5.700 and 5.745 to 5.825 GHz ranges on 5 GHz. The K9 suffix denotes the controller-based version.
