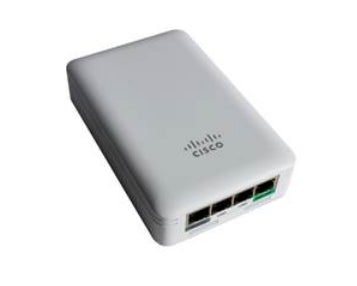

• Cisco AIR-AP1815W-Z-K9C white Wi-Fi 5 wall-plate access point
1 1

Cisco

Cisco AIR-AP1815W-Z-K9C | Aironet 1815w Wi-Fi 5 Access Point, Z Domain, Mobility Express

AIR-AP1815W-Z-K9C

Request Quote
Sale Sold out
Shipping calculated at checkout.

Stock Status: Enquire

20-min response

Need a quote or bulk pricing? Answered within 20 minutes, Sydney business hours.

Description

The Aironet 1815w is a compact, wall-plate-mountable dual-band 802.11ac Wave 2 (Wi-Fi 5) access point built for multiple-dwelling-unit deployments such as hospitality, cruise ships, residence halls and university dormitories. It reuses existing in-wall cabling and can also serve remote workers and micro-offices as an OfficeExtend access point.

It provides 2x2 MU-MIMO with two spatial streams, up to 867 Mbps on 5 GHz and about 1 Gbps aggregate dual-radio data rate, with up to 400 clients per access point (200 per radio). Wired connectivity is one 10/100/1000BASE-T uplink with PoE in, three local Gigabit Ethernet ports (one with PoE out) and a passive pass-through RJ-45 port. Power draw is 8.5 W maximum without PoE out. This SKU uses the Z regulatory domain and the K9C suffix, so it ships with Cisco Mobility Express as its default software, allowing controller-less deployment of up to 50 access points.

It works with Cisco 2500, 3500, 5500, Flex 7500 and 8500 Series wireless controllers, the Wireless Controller Module for ISR G2, WiSM2 for Catalyst 6500 and Catalyst 9800 Series controllers, running AireOS 8.4.100.0 or later. Optional Cisco power injectors AIR-PWRINJ5= and AIR-PWRINJ6= are supported.

Enquire with XS Network Tech for new or used pricing and availability.

Features

- 802.11ac Wave 2 with MU-MIMO for simultaneous transmission to multiple Wave 2 clients
- Three local Gigabit Ethernet ports for wired devices, one able to provide PoE out for an IP phone or camera
- Cisco Mobility Express for controller-less deployment of up to 50 access points
- Can operate as an OfficeExtend access point for remote workers and micro-offices
- Compact wall-plate form factor mounting directly on the wall or to many global wall junction standards
- Integrated Bluetooth Low Energy 4.1 radio for location and asset tracking
- Works with Cisco User Defined Network via Cisco DNA Center
- Security options include WPA3/WPA2, 802.1X, and per-port VLAN on the Ethernet ports

Warranty

All products sold by XS Network Tech include a 12-month warranty on both new and used items. Our in-house technical team thoroughly tests used hardware prior to sale to ensure enterprise-grade reliability.

All technical data should be verified on the manufacturer data sheets.

View full details

specs-tabs

Technical Specifications

FAQs

Technical Specifications

- Wireless standard: 802.11a/b/g/n/ac Wave 2
- Radio configuration: 2x2 SU/MU-MIMO, two spatial streams, 20/40/80 MHz channels
- Maximum PHY data rate (5 GHz, 80 MHz): 866.7 Mbps
- Maximum clients: 200 per radio, 400 per access point
- Integrated antennas: 2.4 GHz 2 dBi, 5 GHz 3 dBi
- Transmit power: 20 dBm (100 mW) down to -1 dBm (0.78 mW) on both bands
- Regulatory domain: Z
- Uplink: 1 x 10/100/1000BASE-T RJ-45 with PoE in
- Local ports: 3 x 10/100/1000BASE-T Ethernet, 1 with PoE out
- Pass-through: 1 passive RJ-45 port
- PoE out: 802.3af (class 0) when powered by 802.3at
- Bluetooth: 4.1 including BLE
- Memory: 1 GB DRAM, 256 MB flash
- CPU: 710 MHz quad-core
- Power: 802.3af/at PoE, 8.5 W maximum draw without PoE out
- Dimensions (W x L x H, without bracket): 89 x 140 x 31.5 mm
- Weight (without bracket or accessories): 280 g
- Operating temperature: 0 to 40 C
- Operating humidity: 10% to 90% non-condensing
- Mounting: AIR-AP-BRACKET-W3 bracket
- Physical security: Torx security screw, Kensington lock slot
- Supported software: AireOS 8.4.100.0 or later, Cisco Mobility Express

FAQs

Q: Does it need a wireless controller?
A: No. The K9C suffix means it ships with Cisco Mobility Express as its default software, so small deployments of up to 50 access points can run without a separate controller.

Q: Which controllers does it work with?
A: It works with Cisco 2500, 3500, 5500, Flex 7500 and 8500 Series controllers, the Wireless Controller Module for ISR G2, WiSM2 for Catalyst 6500 and Catalyst 9800 Series, running AireOS 8.4.100.0 or later.

Q: How is it powered?
A: It is powered by 802.3af/at PoE from a switch, or by Cisco power injectors AIR-PWRINJ5= or AIR-PWRINJ6=. Maximum draw is 8.5 W without PoE out.

Q: Can it power a device from its local Ethernet port?
A: One local port can supply 802.3af class 0 PoE out, but only when the access point itself is powered by 802.3at.

Q: What does the Z regulatory domain mean for this SKU?
A: The Z domain determines the permitted channels and transmit power. It covers 2.412-2.462 GHz and the 5 GHz bands 5.180-5.320, 5.500-5.700 (excluding 5.600-5.640) and 5.745-5.825 GHz.

Q: Is a licence needed when using a Catalyst 9800 controller?
A: When connected to a Cisco Catalyst 9800 Series controller, the access point needs a Cisco DNA subscription, either Essentials or Advantage, in a 3, 5 or 7-year term.
