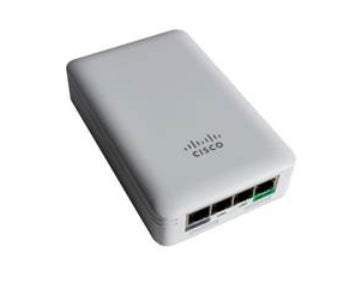

• Cisco AIR-AP1815W-Z-K9 white Wi-Fi 5 access point with ports
1 1

Cisco

Cisco AIR-AP1815W-Z-K9 | Aironet 1815w Wi-Fi 5 Access Point, Z Domain, K9

AIR-AP1815W-Z-K9

Request Quote
Sale Sold out
Shipping calculated at checkout.

Stock Status: Enquire

20-min response

Need a quote or bulk pricing? Answered within 20 minutes, Sydney business hours.

Description

The Aironet 1815w is a dual-band, controller-based 802.11ac Wave 2 (Wi-Fi 5) access point in a compact wall-mount form factor. It suits multiple-dwelling-unit deployments such as dormitories, hospital rooms and hotels, as well as small or micro-offices that need wireless and wired access from a single unit. It can also serve remote workers as an OfficeExtend access point.

This part number carries the Z regulatory domain for Australia and New Zealand and the K9 controller-based (AireOS) software image. It delivers 2x2 MU-MIMO with two spatial streams and PHY rates up to 866.7 Mbps on 5 GHz, with support for up to 400 associated clients (200 per radio). Connectivity includes one 10/100/1000BASE-T PoE-in uplink and three local Gigabit Ethernet ports, one of which can provide PoE out for a device such as an IP phone or camera. Maximum power draw is 8.5 W without PoE out. Cisco DNA subscriptions are required for connection to a Catalyst 9800 Series controller.

It works with Cisco AireOS controllers (2500, 3500, 5500, Flex 7500 and 8500 Series, WiSM2 and the ISR G2 module on release 8.4.100.0 or later), Catalyst 9800 Series controllers and Cisco Mobility Express.

Enquire with XS Network Tech for new or used pricing and availability.

Features

- 802.11ac Wave 2 MU-MIMO supports simultaneous transmission to multiple Wave 2 clients
- Three local Gigabit Ethernet ports connect wired devices, with one port able to supply PoE out
- Wired port traffic can be tunnelled to the controller or switched locally by the access point
- Cisco Mobility Express support allows controller-less deployment for 50 or fewer access points
- Integrated Bluetooth Low Energy 4.1 radio for location and asset tracking (future availability)
- Compact wall-mount design with options for global wall junction standards
- Can operate as an OfficeExtend access point for remote workers and micro-offices
- Runs fully from 802.3af PoE

Warranty

All products sold by XS Network Tech include a 12-month warranty on both new and used items. Our in-house technical team thoroughly tests used hardware prior to sale to ensure enterprise-grade reliability.

All technical data should be verified on the manufacturer data sheets.

View full details

specs-tabs

Technical Specifications

FAQs

Technical Specifications

- Standards: 802.11a/b/g/n/ac Wave 2, dual-band 2.4 GHz and 5 GHz
- MIMO: 2x2 SU/MU-MIMO with two spatial streams
- Maximum PHY rate: up to 866.7 Mbps on 5 GHz (80 MHz)
- Maximum clients: 200 per radio, 400 per access point
- Uplink: 1 x 10/100/1000BASE-T RJ-45 with PoE in
- Local ports: 3 x 10/100/1000BASE-T, one with PoE out
- PoE out: 802.3af (class 0) when powered by 802.3at
- Power: 802.3af/at PoE, 8.5 W maximum draw without PoE out
- Regulatory domain: Z (AU/NZ)
- Software image: K9, controller-based (AireOS)
- Integrated antenna gain: 2 dBi (2.4 GHz), 3 dBi (5 GHz)
- Bluetooth: 4.1 including BLE, 4 dBm maximum transmit power, future availability
- Memory: 1 GB DRAM, 256 MB flash, 710 MHz quad-core
- Dimensions (W x L x H): 89 x 140 x 31.5 mm, without mounting bracket
- Weight: 280 g, without mounting bracket or accessories
- Operating temperature: 0 to 40 C
- Operating humidity: 10% to 90% non-condensing
- Storage temperature: -30 to 70 C
- Security: WPA3, WPA2, WPA (AES), 802.1X, 802.11r, 802.11i
- Physical security: Kensington lock slot, Torx security screw
- Console: management console port (4-pin connector)

FAQs

Q: Does this access point need a licence or subscription?
A: A Cisco DNA subscription (Essentials or Advantage, 3, 5 or 7-year term) is required for the access point to connect to a Catalyst 9800 Series controller. The perpetual Network Essentials and Network Advantage features remain after the term ends.

Q: What does the K9 suffix mean on this part number?
A: AIR-AP1815W-Z-K9 is the controller-based (AireOS) software image. The -K9C variant ships with Mobility Express as its default software instead.

Q: How is it powered?
A: It is powered by an 802.3af/at PoE switch or an optional Cisco power injector (AIR-PWRINJ5= or AIR-PWRINJ6=). Maximum draw is 8.5 W without PoE out.

Q: Can the local port power another device?
A: One of the three local Gigabit ports provides PoE out at 802.3af (class 0). This is only available when the access point itself is powered by 802.3at.

Q: Which controllers does it work with?
A: It works with Cisco 2500, 3500, 5500, Flex 7500 and 8500 Series controllers, the Wireless Controller Module for ISR G2, WiSM2 for Catalyst 6500 and Catalyst 9800 Series controllers, as well as Cisco Mobility Express. AireOS release 8.4.100.0 or later is required.

Q: What does the Z regulatory domain cover?
A: The Z domain is the regulatory setting for Australia and New Zealand, covering the 2.4 GHz and 5 GHz channel plans approved in those countries.
