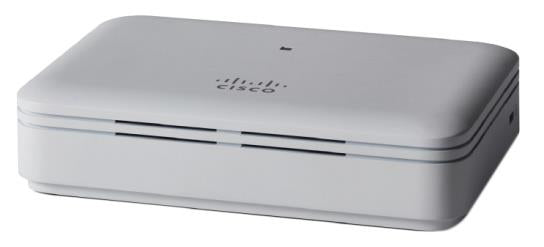

Cisco AIR-AP1815T-Z-K9 | Aironet 1815T Wi-Fi 5 Access Point, Z Domain, Controller

AIR-AP1815T-Z-K9

Request Quote
Sale Sold out
Shipping calculated at checkout.

Stock Status: Enquire

20-min response

Need a quote or bulk pricing? Answered within 20 minutes, Sydney business hours.

Description

The Aironet 1815T is a dual-band, controller-based 802.11ac Wave 2 (Wi-Fi 5) OfficeExtend access point built for teleworkers, home offices and micro-branch sites with no on-site IT staff. It builds a secure DTLS tunnel back to the corporate wireless controller, so remote users get the same security profile as the main office while home traffic can stay segmented.

This AIR-AP1815T-Z-K9 is the Z regulatory domain variant for Australia and New Zealand, running in controller-based (K9) mode. It uses 2x2 MU-MIMO with two spatial streams and a PHY rate of up to 866.7 Mbps on 5 GHz at 80 MHz, and supports up to 400 clients per AP, 200 per radio. Wired connectivity is one 10/100/1000BASE-T uplink plus three local Gigabit Ethernet ports, one of which provides 802.3af PoE out at 15.4 W for a device such as an IP phone or camera. It has 512 MB DRAM and 128 MB flash, and is powered by 802.3af PoE or the Cisco local power supply, drawing 8.5 W without PoE out.

It works with AireOS wireless controllers on release 8.5.103 or later, including the 2500, 3500, 5500, 8500 and Flex 7500 Series, WiSM2 and the ISR G2 controller module, as well as Catalyst 9800 Series controllers.

Enquire with XS Network Tech for new or used pricing and availability.

Features

- MU-MIMO transmits data to multiple 802.11ac Wave 2 clients simultaneously
- Real-time service extender for voice, wireless, video and data at remote sites with no IT staff
- Secure DTLS connection between the AP and the controller using the same profile as the corporate office
- Three local Gigabit Ethernet ports that can be tunnelled to the WLAN controller or locally switched
- One local Ethernet port supplies PoE out for an IP phone or security camera
- Segments home traffic from secure access to corporate data
- Supports 802.1X or MAC-filtered authentication and dynamic VLAN on the Ethernet ports

Warranty

All products sold by XS Network Tech include a 12-month warranty on both new and used items. Our in-house technical team thoroughly tests used hardware prior to sale to ensure enterprise-grade reliability.

All technical data should be verified on the manufacturer data sheets.

View full details

specs-tabs

Technical Specifications

FAQs

Technical Specifications

- Wireless standards: IEEE 802.11a/b/g, 802.11n, 802.11h, 802.11d, 802.11ac Wave 2
- Bands: dual-band, 2.4 GHz and 5 GHz
- MIMO: 2x2 single-user and multiuser MIMO with two spatial streams, MRC
- Channel widths: 20, 40 and 80 MHz
- Maximum PHY data rate: 866.7 Mbps (80 MHz on 5 GHz)
- Maximum associated clients: 200 per radio, 400 per access point
- Integrated antennas: 2.4 GHz 2 dBi gain, 5 GHz 3 dBi gain
- Regulatory domain: Z (Australia / New Zealand)
- Transmit power settings: 20 dBm (100 mW) down to -1 dBm (0.78 mW)
- Uplink: 1 x 10/100/1000BASE-T RJ-45, autosensing, PoE-in
- Local Ethernet ports: 3 x 10/100/1000BASE-T
- PoE output: 802.3af, 15.4 W at port, on one local port
- Input power: 44 to 52 V DC
- Power draw: 8.5 W with no PoE out and no USB
- Processor and memory: 710 MHz quad-core, 512 MB DRAM, 128 MB flash
- Dimensions (W x L x H): 152.4 x 101.6 x 37.7 mm, without mounting bracket
- Weight: 365 g, without mounting bracket or accessories
- Operating temperature: 0 to 40 C
- Operating humidity: 10% to 90% non-condensing
- Security: WPA3, WPA2, WPA, 802.11i, 802.1X, AES, 802.11r, RADIUS AAA
- Physical security: Kensington lock slot

FAQs

Q: Does the AIR-AP1815T-Z-K9 need a wireless controller?
A: Yes. This is a controller-based (K9) access point. It runs with AireOS wireless controllers on release 8.5.103 or later, or with Catalyst 9800 Series controllers.

Q: Which controllers is it compatible with?
A: It works with Cisco 2500, 3500, 5500, 8500 and Flex 7500 Series Wireless Controllers, WiSM2 for Catalyst 6500, the ISR G2 Wireless Controller Module and Catalyst 9800 Series controllers.

Q: Does it need a software subscription?
A: A Cisco DNA software subscription (Essentials or Advantage, in 3-, 5- or 7-year terms) is required to join a Catalyst 9800 Series controller. Perpetual Network Essentials or Network Advantage features remain after the term ends.

Q: How is the access point powered?
A: It takes 44 to 52 V DC, supplied by 802.3af PoE or the Cisco local power supply. Power draw is 8.5 W with no PoE out and no USB.

Q: Can it power a device from one of its Ethernet ports?
A: Yes. One of the three local Ethernet ports provides 802.3af PoE out at 15.4 W when the AP is powered by the Cisco local power supply AIR-PWR-D=.

Q: What does the Z in the part number mean?
A: Z is the regulatory domain for Australia and New Zealand, so this SKU is configured for the channels and power levels used in those regions.
