• Cisco AIR-AP1810W-Z-K9 Wi-Fi 5 wall-plate access point with Ethernet ports
1 1

Cisco

Cisco AIR-AP1810W-Z-K9 | Aironet 1810W Wi-Fi 5 Wall-Plate AP, 3 GbE, ANZ

AIR-AP1810W-Z-K9

Request Quote
Sale Sold out
Shipping calculated at checkout.

Stock Status: Enquire

20-min response

Need a quote or bulk pricing? Answered within 20 minutes, Sydney business hours.

Description

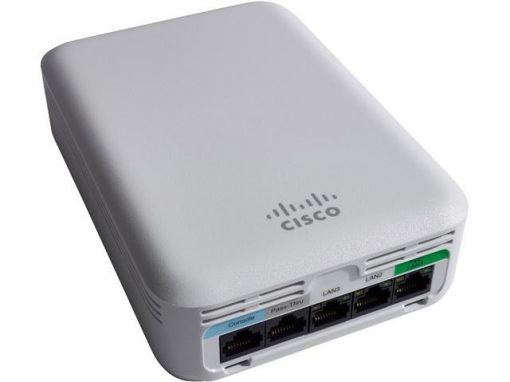

The Aironet 1810W is a compact, wall-plate-mountable, controller-based access point for hospitality, cruise ships, residence halls and other multi-dwelling-unit deployments. It combines dual-band 802.11ac Wave 2 Wi-Fi with wired Gigabit Ethernet ports in a single unit that reuses existing in-wall cabling. This SKU is the Z regulatory domain variant for Australia and New Zealand.

It runs 2x2 MU-MIMO with two spatial streams, delivering PHY rates up to 866.7 Mbps on 5 GHz using 80 MHz channels, and supports up to 400 clients per access point (200 per radio). Wired connectivity is provided by one 10/100/1000BASE-T PoE uplink and three 10/100/1000BASE-T local Ethernet ports, one of which can supply PoE out. A passive RJ-45 pass-through port and an RJ-45 console port are also fitted. Local ports can be locally switched or tunnelled to the controller, with 802.1X or MAC-filtered authentication and per-port or dynamic VLAN assignment.

The access point is powered by 802.3af/at PoE, or by an optional Cisco local power supply or power injector. It operates with Cisco AireOS wireless LAN controllers running Release 8.2.111.0 or later. A wall-plate mounting bracket suits single-gang junction boxes, and a Torx security screw and Kensington lock slot provide physical security.

Enquire with XS Network Tech for new or used pricing and availability.

Features

- 802.11ac Wave 2 with MU-MIMO to serve multiple clients simultaneously
- Three local Gigabit Ethernet ports for wired devices, tunnelled to the controller or locally switched
- One local port can supply PoE out to devices such as IP phones or cameras
- Integrated Bluetooth 4.1 BLE radio for location and asset tracking (future availability)
- Multiple mounting options: junction box, direct wall with optional spacer kit, or desk with optional cradle
- Physical security through a Torx security screw and Kensington lock slot
- LEDs switch off automatically once the access point joins a controller, for guest privacy
- Powered by 802.3af/at PoE or an optional local power supply

Warranty

All products sold by XS Network Tech include a 12-month warranty on both new and used items. Our in-house technical team thoroughly tests used hardware prior to sale to ensure enterprise-grade reliability.

All technical data should be verified on the manufacturer data sheets.

View full details

specs-tabs

Technical Specifications

FAQs

Technical Specifications

- Wi-Fi standard: Dual-band 802.11a/b/g/n/ac Wave 2, 2x2 MU-MIMO, 2 spatial streams
- Maximum PHY rate: Up to 866.7 Mbps on 5 GHz (80 MHz channel)
- Uplink: 1 x 10/100/1000BASE-T PoE
- Local Ethernet ports: 3 x 10/100/1000BASE-T, 1 with PoE out
- Other ports: 1 x passive RJ-45 pass-through, RJ-45 console, DC power connector
- Maximum clients: 200 per radio, 400 per access point
- Regulatory domain: Z (Australia/New Zealand)
- Channels (Z domain): 2.412-2.462 GHz (11 channels); 5.180-5.320 GHz (8 channels); 5.500-5.700 GHz (8 channels, excludes 5.600-5.640 GHz); 5.745-5.825 GHz (5 channels)
- Maximum transmit power: 20 dBm on 2.4 GHz and 5 GHz with 2 antennas
- Integrated antennas: 2 dBi (2.4 GHz), 4 dBi (5 GHz)
- Bluetooth: Bluetooth 4.1 (BLE), future availability
- Memory: 512 MB DRAM, 256 MB flash, 1.4 GHz dual-core CPU
- Input power: 44 to 57 V DC (802.3af/at PoE) or optional local power supply, 100-240 V AC
- Maximum power draw: 12.95 W with no PoE out, up to 27.65 W with 12.95 W PoE out
- Dimensions (W x L x H): 165 x 114 x 41 mm without bracket
- Weight: 560 g without bracket or accessories
- Operating temperature: 0 to 40 C
- Operating humidity: 10% to 90% non-condensing
- Storage temperature: -30 to 70 C
- Maximum operating altitude: 3,000 m at 40 C
- Security: AES for WPA2, 802.1X, RADIUS AAA, 802.11i
- Mounting: AIR-AP-BRACKET-W2 bracket, single-gang junction box

FAQs

Q: What controller does the AIR-AP1810W-Z-K9 need?
A: It is a controller-based access point and requires a compatible Cisco AireOS wireless LAN controller running Release 8.2.111.0 or later. No per-AP licence tier is specified for this model.

Q: How is the access point powered?
A: It can be powered by an 802.3af/at PoE switch, a Cisco power injector (AIR-PWRINJ5= or AIR-PWRINJ6=) or a Cisco local power supply (AIR-PWR-C= or AIR-PWR-D=). Maximum draw is 12.95 W with no PoE out and up to 27.65 W with 12.95 W PoE out.

Q: Can the local Ethernet port supply PoE to other devices?
A: Yes, one of the three local ports provides PoE out. It delivers 802.3af power when the unit uses a Cisco local power supply, about 6.5 W when powered by 802.3at, and none when powered by 802.3af.

Q: Which regulatory domain is this SKU?
A: This is the Z regulatory domain variant for Australia and New Zealand, so it uses the Z channel plan rather than the domains used in other regions.

Q: What mounting options are available?
A: The unit mounts with the AIR-AP-BRACKET-W2 bracket on a single-gang junction box. Optional accessories include the AIR-AP1810W-KIT= spacer kit for direct wall mounting and the AIR-OEAP1810-CRD= desk cradle.
