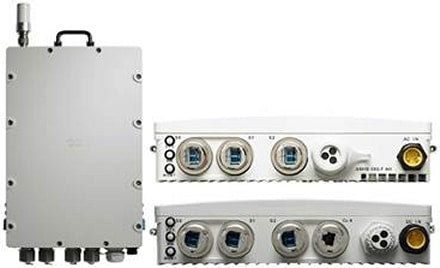

Cisco A901S-2SG-F-D | ASR 901S Outdoor Router, 2x SFP + 2x RJ45, DC PSU
SKU:A901S-2SG-F-D
Stock Status: Enquire
Need a quote or bulk pricing? Answered within 20 minutes, Sydney business hours.
Description
Description
The Cisco ASR 901S is a compact, IP65-rated, fanless aggregation services router built for outdoor cell sites. It forms part of the Cisco Unified RAN Backhaul solution and suits mobile backhaul aggregation where it can be mounted on walls, brackets or lampposts.
This A901S-2SG-F-D variant is DC powered and provides four external Gigabit Ethernet ports: two 1G SFP and two 1G copper RJ45. A gland interface carries the internal copper ports, alarm, management and console cabling. Maximum power consumption is under 40 W without PoE+, and the passive cooling design has no fan. It operates across an ambient range of -40 to 65 C.
Each SFP port connects to the front panel through an LC-LC patch cable with IP65 sealing for external fibre connectivity. PoE+ on copper ports applies to the AC variant only, so it does not apply to this DC model.
Enquire with XS Network Tech for new or used pricing and availability.
Features
Features
- Layer 2, Layer 3 and MPLS deployment models
- Connectivity Fault Management (CFM), Y.1731 FM/PM, Y.1564 compliance and service loopback
- Proven interoperability with multiple microwave vendors
- IP65-compliant compact enclosure for outdoor deployments
- Flexible combination of copper and SFP 1-Gigabit Ethernet ports
- Completely fanless passive cooling design
- IP65-compliant power entry connector
- Alarm, management and console cabling routed through the 3-wire gland
Warranty
Warranty
All products sold by XS Network Tech include a 12-month warranty on both new and used items. Our in-house technical team thoroughly tests used hardware prior to sale to ensure enterprise-grade reliability.
All technical data should be verified on the manufacturer data sheets.
View full details
What is the difference between add to cart and request a quote?
Add to Cart lets you purchase in-stock products immediately at listed pricing.
Request a Quote is for customised pricing, volume-based deals, or orders that need a tailored response.
specs-tabs
Collapsible content
Technical Specifications
FAQs
Technical Specifications
- External ports: 4 (2 x 1GbE SFP + 2 x 1GbE copper)
- Internal port interface: 1 gland interface for internal ports
- Power supply: DC
- Maximum power consumption: under 40 W without PoE+
- Enclosure rating: IP65
- Operating ambient temperature: -40 to 65 C (-40 to 149 F)
- Cooling: fanless, passive
- Mounting: brackets, walls, lampposts
- External fibre connectivity: LC cable system with IP65 sealing
FAQs
Q: Does this router support PoE+?
A: No. PoE+ on the copper ports is available only on the AC variant. This A901S-2SG-F-D model is the DC-powered version.
Q: What power does it need?
A: It runs from a DC power supply and draws under 40 W maximum without PoE+.
Q: How are the SFP ports connected?
A: Each of the two SFP ports takes an SFP module and connects to the front panel through an LC-LC patch cable with IP65 sealing.
Q: What is the gland interface for?
A: The gland interface carries the internal copper ports. It also routes alarm, management and console cabling.
Q: Where can it be installed?
A: It has an IP65-rated enclosure and operates from -40 to 65 C, so it can be mounted outdoors on walls, brackets or lampposts.
